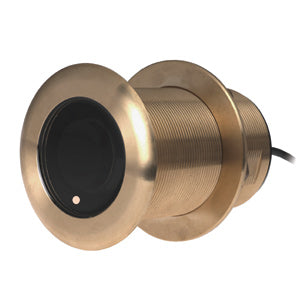

The Garmin 010-11634-21 bronze tilt transducer is built for boats that demand precise depth and temperature readings across a broad 130–210 kHz range, delivering reliable sonar performance for both anglers and cruisers.
-
Frequency: 130–210 kHz for flexible depth performance
-
Power Output: 600 W for strong sonar returns
-
Beam Width: 15° at 130 kHz / 9° at 210 kHz for crisp target separation
-
Max Depth: Up to 800 ft
-
Depth & Temperature: Simultaneous depth and water temperature data
-
Pins: 8-pin connection (8P)
-
Deadrise / Transom Angles: Suitable for 8–15° deadrise
-
Housing: Bronze tilt transducer (12D tilt; B75H TH)
Designed for seamless integration with compatible Garmin chartplotters, this transducer helps you map bottoms, track fish contours, and make informed decisions on the water. Its bronze housing resists corrosion for long-term durability, while the tilt design optimizes sonar performance across common transom angles.
| Freq. Khz | Power | Beam Width (°) LF//HF (-3dB) | Max Depth (ft) | Septh,Speed,Temp | # of Pins | Supported Deadrise / Transom Angles |
| 130-210 | 600W | 15/9 | 800 | Depth,Temp | 8 | 8-15° Deadrise |
