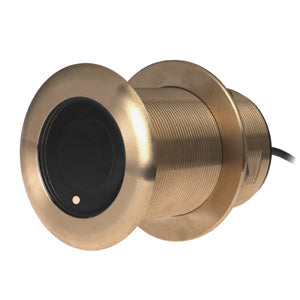

The Garmin 010-11636-22 Tilt Bronze B75M TH 8P transducer delivers precise sonar performance for both saltwater and freshwater boats. With a bronze build and a tilt-through-hull design, it mounts cleanly to a variety of hull shapes while providing reliable depth and water temperature readings.
-
Frequency: 80–130 kHz (versatile for a range of depths and applications)
-
Power: 600W
-
Beam Width: 24° (LF) / 16° (HF)
-
Max Depth: 800 ft
-
Depth & Temperature Sensing: integrated depth and water temperature readings
-
Material: Bronze construction designed for saltwater durability
-
Tilt / Mounting: 20° tilt bronze, through-hull style transducer suitable for various hull shapes
-
Connector: 8-Pin connector
-
Compatibility: Designed to pair with Garmin fishfinder/chartplotter systems
-
Deadrise / Transom Angles: 16–24°
With its robust bronze build and optimized tilt mounting, this transducer provides dependable depth data and water temperature readings, helping you track underwater structure, monitor thermocline changes, and maintain accurate sonar performance in challenging marine environments. Its compact, through-hull design and Garmin compatibility ensure straightforward installation and reliable integration with your existing fishfinder/chartplotter setup.
| Freq. Khz | Power | Beam Width (°) LF//HF (-3dB) | Max Depth (ft) | Septh,Speed,Temp | # of Pins | Supported Deadrise / Transom Angles |
| 80-130 | 600W | 24/16 | 800 | Depth,Temp | 8 | 16-24° Deadrise |
