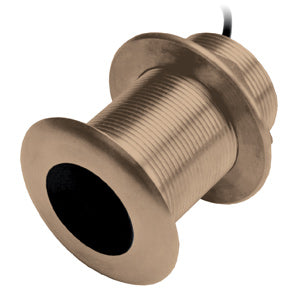

Garmin 010-11927-20 is a bronze dual‑frequency marine transducer designed for Garmin‑compatible sonar systems, delivering precise depth, speed, and temperature readings in both saltwater and freshwater environments. Its 0° tilt design and rugged bronze housing ensure dependable performance in demanding conditions.
-
Frequency: 95–155 kHz dual-frequency operation for versatile depth coverage
-
Power: 300W transmitter power for strong, reliable sonar returns
-
Beam Width: 26° at 95 kHz (LF) and 17° at 155 kHz (HF)
-
Max Depth: Up to 1,500 ft
-
Measurements: Depth, speed, and temperature data
-
Connection: 8‑pin transducer connection
-
Material / Housing: Bronze B150M TH housing designed for saltwater and freshwater durability
-
Tilt: 0° tilt design for straightforward mounting
-
Deadrise / Transom Angles: Compatible with 0–7° deadrise/transom angles
-
Compatibility: Designed for Garmin‑compatible sonar systems
This transducer delivers reliable depth, speed, and temperature data with dual-frequency capability, enabling flexible use across shallow and deeper water. The bronze construction and 8‑pin Garmin interface provide durability and easy integration with existing sonar setups, helping you map bottom structure accurately and optimize navigation and fishing decisions.
| Freq. Khz | Power | Beam Width (°) LF//HF (-3dB) | Max Depth (ft) | Septh,Speed,Temp | # of Pins | Supported Deadrise / Transom Angles |
| 95-155 | 300W | 26/17 | 1500 | Depth,Temp | 8 | 0-7 Deadrise |
