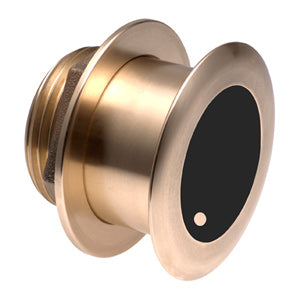

The Garmin 010-11939-21 is a rugged bronze through-hull transducer built for serious saltwater use. It delivers deep, clear sonar across a wide range of depths and boat speeds, providing depth, speed, and temperature data for Garmin-compatible systems.
-
Frequency: 85–135 kHz
-
Power: 1 kW
-
Beam Width: 11–16°
-
Max Depth: 3000 ft
-
Capabilities: Depth, Speed, and Temperature
-
Connector: 8-pin Garmin-compatible connection
-
# of Pins: 8
-
Supported Deadrise / Transom Angles: 8–15°
-
Tilt Design: 12° Tilt
-
Housing Material: Bronze
-
Transducer Type: Bronze through-hull (B175M TH)
Designed for demanding saltwater boats, this 8P transducer offers reliable depth readings, accurate speed data, and temperature information across a broad range of depths and speeds. The 12° tilt optimizes beam coverage and target separation, helping you read fish and structure clearly even in challenging conditions. With bronze construction and a Garmin-compatible 8-pin connector, it integrates seamlessly into Garmin sonar networks while delivering durable performance in harsh marine environments.
| Freq. Khz | Power | Beam Width (°) LF//HF (-3dB) | Max Depth (ft) | Septh,Speed,Temp | # of Pins | Supported Deadrise / Transom Angles |
| 85-135 | 1KW | 11-16 | 3000 | Depth,Temp | 8 | 8-15° Deadrise |
