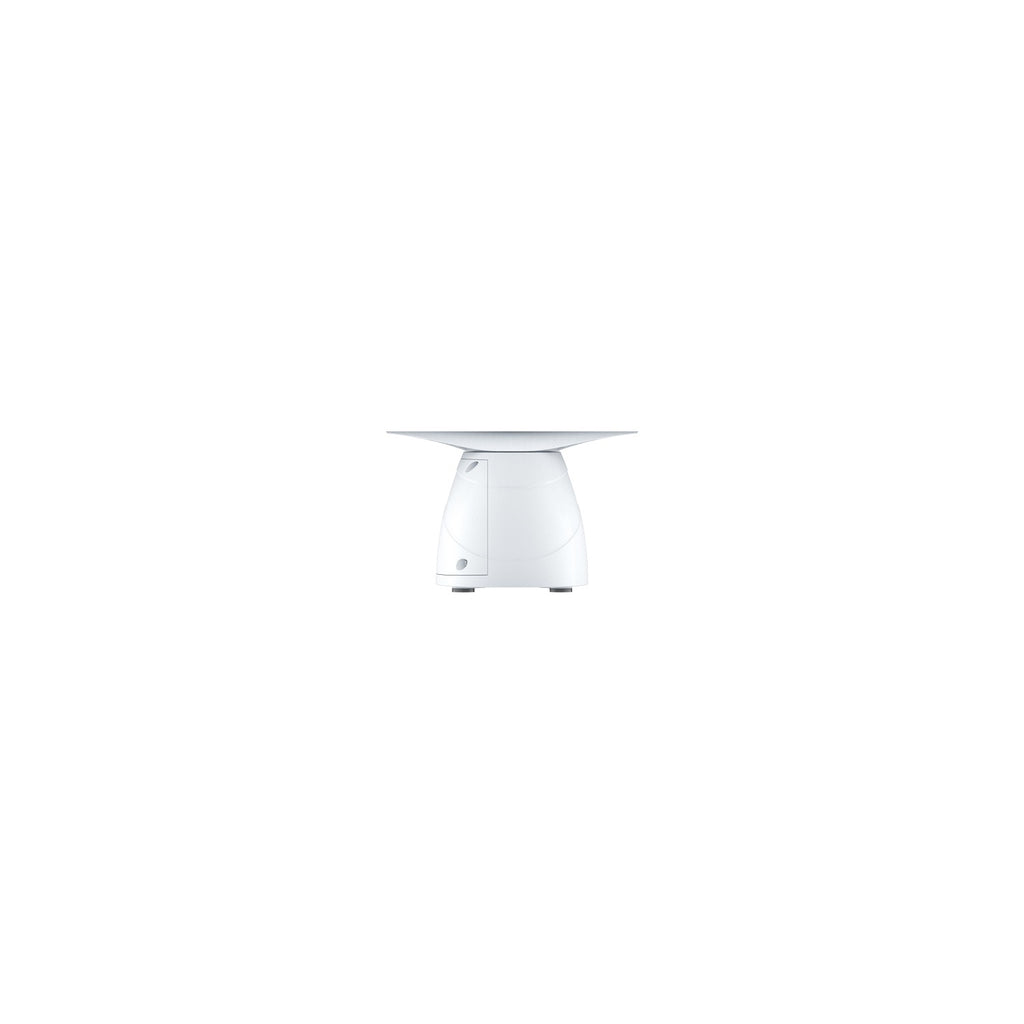

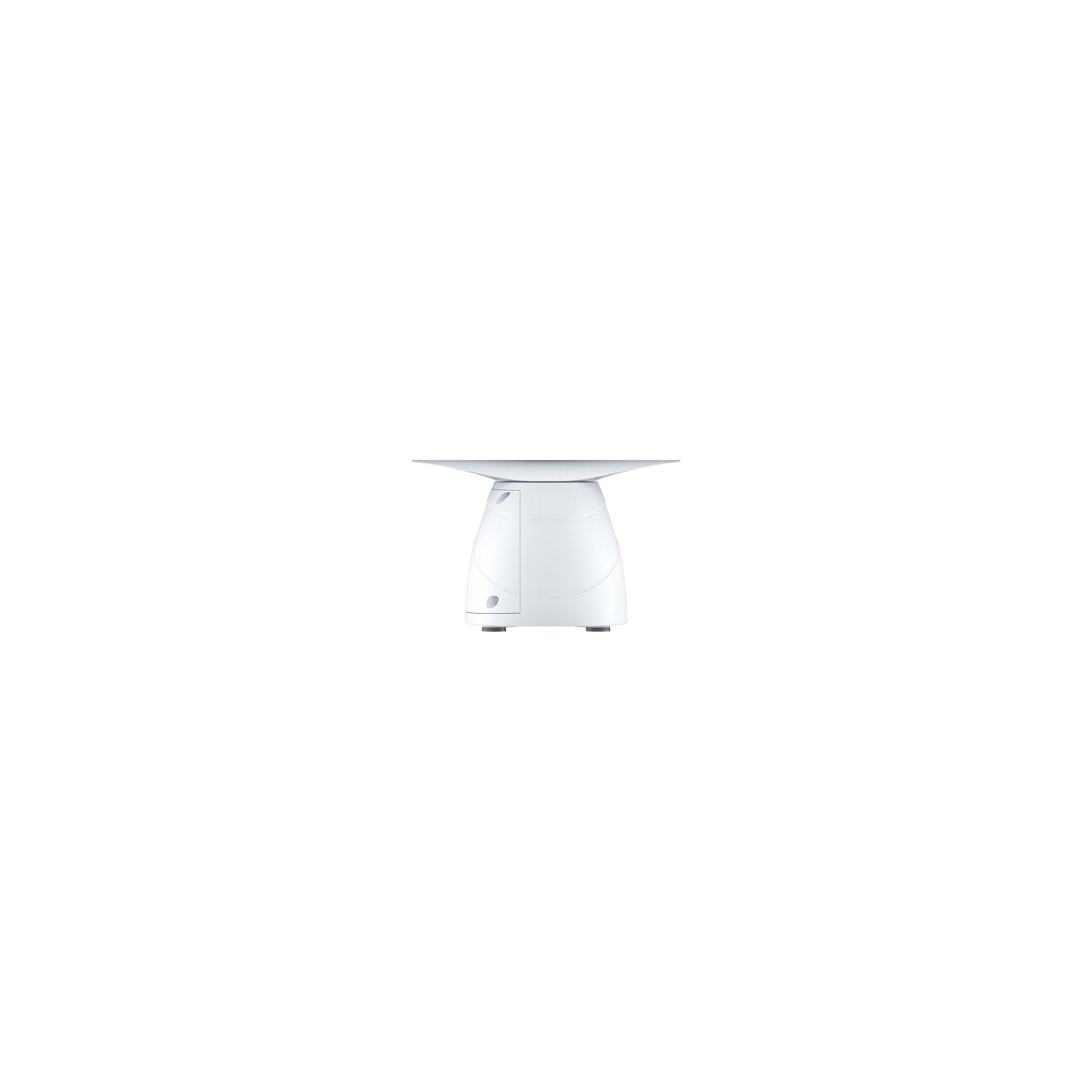

The Garmin 12 kW GMR xHD3 Pedestal is a rugged mounting foundation designed to support Garmin’s GMR xHD3 radar head on marine vessels, delivering professional-grade long-range detection. Antenna sold separately.
-
Model: 010-02779-10
-
Radar head compatibility: Designed to support Garmin’s GMR xHD3 radar head on the pedestal (antenna sold separately)
-
Transmit power: 12 kW for long-range detection
-
Marine-grade design: Engineered to endure marine environments and weather conditions
-
Pedestal footprint: 520 x 328 x 314 mm (20.5" x 12.9" x 12.4")
-
Power input: 10-32 V DC
-
Power consumption: Standby 18 W; typical transmitting (normal mode) 70 W
-
Included components: GMR xHD3 12 kW Pedestal, 15 m power cable, 15 m network cable, mounting hardware kit and template, installation instructions
-
Antenna sold separately: The pedestal is designed to work with the GMR xHD3 radar head; antenna is not included
With 12 kW transmit power, the pedestal enables strong long-range detection to enhance situational awareness during open-water operations. Its marine-grade construction is built to withstand vessel operation and weather conditions, while the compact footprint simplifies installation on a wide range of vessels. The included cables, mounting hardware, and template streamline setup, and the 10–32 V DC input makes it compatible with common marine power systems. Note that the radar antenna must be purchased separately.
| DIMENSION |
Pedestal: 520 x 328 x 314 mm (20.5" x 12.9" x 12.4") |
| POWER INPUT |
10-32 V DC |
| POWER CONSUMPTION (STANDBY) |
18 W |
| TYPICAL POWER CONSUMPTION, TRANSMITTING (NORMAL MODE) |
70 W |
| TRANSMIT POWER |
12 kW |
