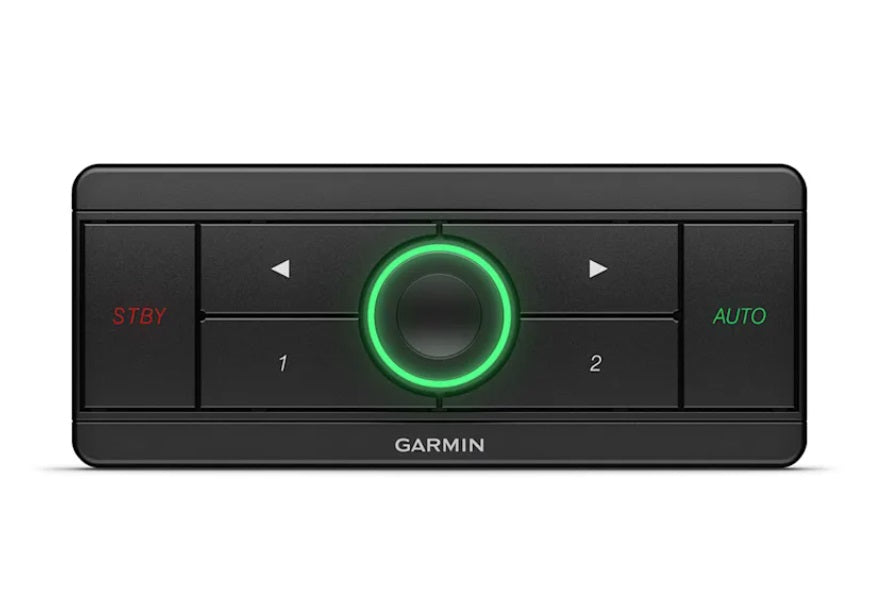

Take command of your Reactor 40 autopilot with the Garmin APK10 Autopilot Keypad - Horizontal. This intuitive keypad delivers simple, at-your-fingertips control with a precision LED-encircled knob for accurate heading adjustments and clear, color-coded autopilot status.
-
Precise heading control using a bright LED-encircled knob for smooth, repeatable adjustments and immediate visual feedback.
-
One-touch engagement dedicated engage and standby buttons make starting and stopping the autopilot effortless.
-
Expandable control add more autopilot functions tailored to your vessel type and setup preferences.
-
Easy NMEA 2000 integration connect to your NMEA 2000 network with a single port and cable for seamless power and data sharing.
-
Low-profile, cockpit-ready design a compact footprint that matches the height of your GHC 50 instrument and GPSMAP chartplotter for a clean, integrated look.
-
Rugged reliability fully-gasketed, high-impact plastic construction with IPX7 water resistance and a compass-safe distance of 4.5" (114 mm).
-
Power and compatibility powered from the NMEA 2000 network, designed to work with Garmin autopilot systems and marine electronics.
Specifications
- Flush mount dimensions: 1.6" x 6.2" x 0.28" (40.1 x 157.0 x 7.0 mm)
- Surface mount dimensions: 1.6" x 6.2" x 0.65" (41.1 x 158.0 x 16.4 mm)
- Weight: Vertical 3.5 oz (100 g)
- Temperature range: 5° to 158°F (-15° to 70°C)
- Material: Fully-gasketed, high-impact plastic
- Water rating: IPX7
- Compass-safe distance: 4.5" (114 mm)
- Power: Powered from the NMEA 2000 network
What’s in the box
- APK 10 autopilot keypad (horizontal orientation)
- Backbone/drop cable (2 m) and T-connector for the NMEA 2000 network
- Mounting hardware (flush and surface)
- Documentation
Upgrade your helm with the Garmin APK10 Autopilot Keypad - Horizontal for precise, effortless autopilot control, reliable network integration, and a streamlined cockpit appearance that complements your Garmin marine electronics ecosystem.
| Dimensions (WxHxD) |
Flush mount: 1.6" x 6.2" x 0.28" (40.1 x 157.0 x 7.0 mm)
Surface mount: 1.6" x 6.2" x 0.65" (41.1 x 158.0 x 16.4 mm) |
| Weight |
Vertical: 3.5 oz (100 g) |
| Temperature range |
From 5° to 158°F (from -15° to 70°C) |
| Material |
Fully-gasketed, high-impact plastic |
| Water rating |
IPX7 |
| Compass-safe distance |
4.5" (114 mm) |
| Powered input |
Powered supplied from the NMEA 2000® network |
