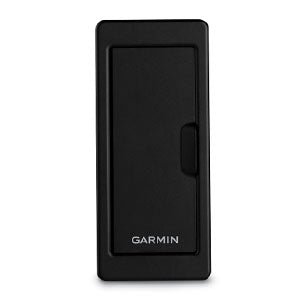

The Garmin Card Reader provides a centralized access point for mapping data via two SD card slots and remote mounting capabilities. Built for demanding environments, it supports horizontal or vertical installation and easy expansion with additional readers.
-
Remote mounting with dual SD card slots: centralizes mapping data access and supports expansion with additional card readers.
-
IPX7 waterproof housing: fully gasketed, high‑impact plastic protects the unit in harsh environments.
-
Magnetic door for quick access: secure, tool‑free entry that supports both horizontal and vertical mounting.
-
Expandable design: add multiple card readers to create extra access points as your setup grows.
-
Compact, rugged footprint: 2 1/8" W x 4 7/8" H x 3 3/16" D; weight 6.3 oz (178.6 g).
-
Wide operating temperature: functional from 5 to 158 F (-15 to 70 C).
-
Power and electrical: Input 10–35 Vdc; fuse 7.5 A, 42 V fast-acting; typical draw 80 mA at 12 Vdc, max 240 mA.
-
Compass-safe distance: 36" (915 mm) to minimize magnetic interference.
-
What’s in the box: Garmin Card Reader, mounting hardware, power cable, network cable (6 ft), and documentation.
Designed for reliability in demanding settings, the Garmin Card Reader delivers dependable card-based mapping access with rugged construction and flexible mounting options. Perfect for vehicles, vessels, or workstations that require a durable, scalable mapping solution.
