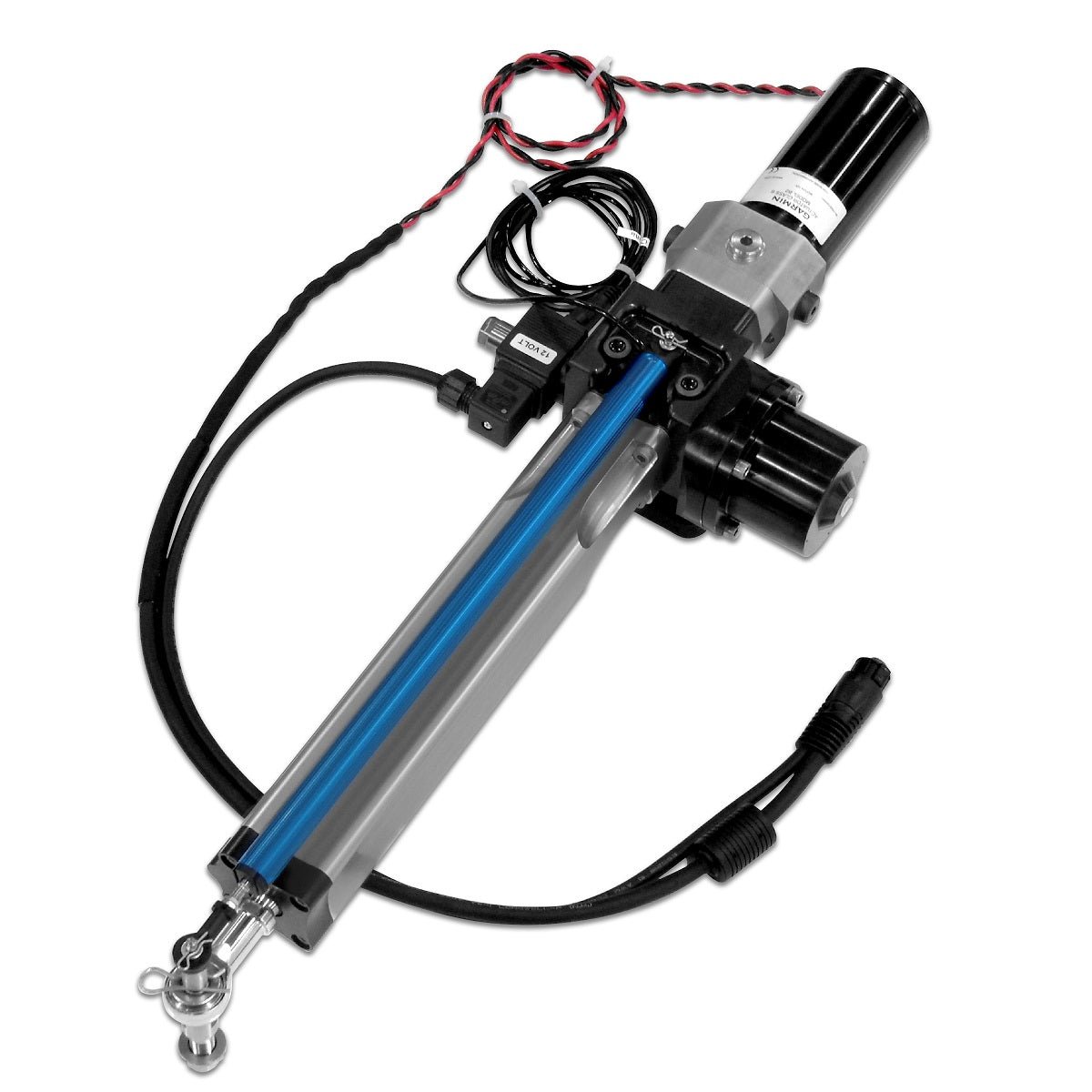

Garmin Class B Compact Drive Unit for the GHP 12 Marine Autopilot is a compact, integrated hydraulic linear drive designed to take the helm of your sailboat with precision and reliability. Built to handle sailboats with displacements up to 48,400 lbs, this drive unit delivers confident steering in any conditions.
Why choose the Class B Compact Drive Unit
- Integrates seamlessly with the GHP 12 Marine Autopilot system to control your sailboat’s steering
- Compact, rugged design engineered for demanding marine environments
- Precision hydraulic linear drive for smooth, dependable steering performance
- Supports sailboats up to 48,400 lbs displacement for a wide range of vessel sizes
Technical specifications
- Drive Unit Type: Integrated Hydraulic Linear
- Stroke Length: 10.0" (254 mm)
- Maximum Thrust: 1610 lb (730 kg)
- Dimensions (W x H x D, centered): 31.9 x 4.6" x 8.9" (810 x 120 x 225 mm)
- Supply Voltage: 10V to 30V (regulated to 12V by the ECU)
- Average Clutch Current at 12V: 1A
- Average Motor Current at 12V: 2–4A
- Operating Temperature: -15°C to 50°C
Designed for reliability and ease of integration, the Garmin Class B Compact Drive Unit delivers robust performance when it matters most—at the helm. Pair it with the GHP 12 Marine Autopilot for effortless, responsive steering you can trust on every voyage.
