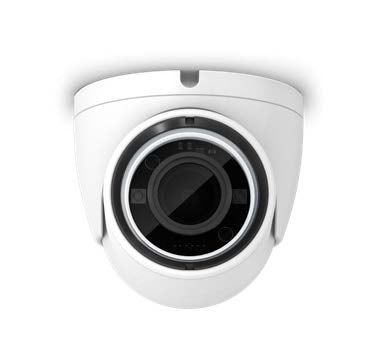

The Garmin GC14 Marine Camera provides an extra vantage point on your vessel, ideal for monitoring hard-to-see areas from the engine room to the deck. Its compact, rugged analog design is built for marine conditions and works seamlessly with compatible Garmin chartplotters to enhance situational awareness on one or multiple displays.
-
Compact, rugged analog design: Small footprint with a rugged build and IPX7 rating for reliable use in marine environments.
-
Versatile viewing compatibility: Connects to onboard TVs, video monitors, or compatible Garmin chartplotters that support video input.
-
Reverse-image capability: Reverse-image setting available on compatible Garmin chartplotters to assist when backing out in tight spaces like crowded marinas.
-
Flexible mounting: Video can be rotated ±90/180/270 degrees to fit any vessel layout.
-
Low-light performance: Delivers clear images in dim conditions, with visibility up to 49 ft (15 m).
-
Analog video specifications: PAL resolution 976(H) x 582(V); viewing angle 95.0° x 69.0° x 52.0°; 625 lines 2:1 interlaced; internal sync; 1.0 Vp-p composite output; S/N ratio > 56 dB with AGC off.
-
Durability and operating range: Designed for harsh marine conditions with a wide operating range from -4° to 140°F (-20° to 60°C) and IPX7 water rating.
-
Physical and power specs: Dimensions 2.0" x 1.7" (5.1 x 4.4 cm); weight 6.7 oz (190 g); power 12 VDC; 90 mA (IR off) / 170 mA (IR on).
-
Installation and usage: Unobtrusive yet powerful—easy to install and leverage existing Garmin chartplotters for enhanced situational awareness on one or multiple displays.
-
Model reference: Model 010-02667-00 (GC14).
With the GC14, you gain a practical, low-profile upgrade that enhances safety and awareness across your boat—from engine-room monitoring to deck visibility. Its rugged build, wide operating temperature range, and compatibility with Garmin chartplotters mean you can view feeds on existing displays, back up more confidently in tight docks, and enjoy clearer footage in low-light conditions up to 49 feet. This camera is designed to deliver reliable, hands-on visibility where you need it most.
| Dimensions |
2.0" 1.7" (5.1 4.4 cm) |
| Weight |
6.7 oz (190 g) |
| Resolution |
PAL: 976(H) x 582(V) |
| Viewing angle |
DxHxV(°) = 95.0° x69.0° x52.0° |
| Scanning system |
PAL: 625 lines 2:1 interlaced |
| Sync system |
Internal |
| Video output |
1.0 Vp-p composite 75 ohms composite |
| Low-light vision range |
Up to 49’ (15 meters) |
| S/N ratio |
More than 56 db (AGC off) |
| Operating temperature |
-4° to 140°F (from -20° to 60°C) |
| Power consumption |
90 mA (IR off), 170mA (IR on), @12 Vdc |
| Compass safe distance |
10" |
| Water rating |
IPX7 |
