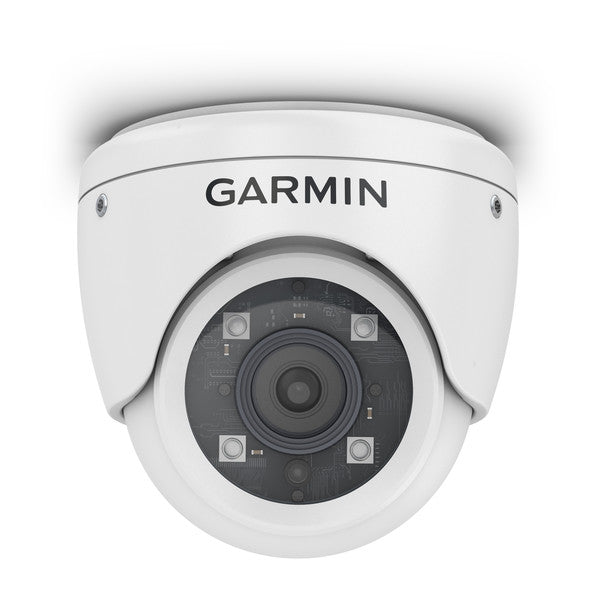

The Garmin GC200 Marine Camera is a compact, rugged IP camera that adds security and situational awareness to your vessel by delivering clear, real-time HD video from areas both above and below deck. Designed for marine environments, it blends discreetly into its surroundings while delivering reliable performance when you need it most.
Monitor multiple areas with ease and confidence. The GC200 streams video from up to four cameras on a single compatible Garmin chartplotter, and you can also share video across multiple chartplotters on the Garmin Marine Network. Use the reverse-image setting on compatible chartplotters to help back out of tight locations like crowded marinas.
Key features are built to perform in challenging conditions: a rugged, water-resistant case and flexible mounting options let you place the camera virtually anywhere. The small, discreet design and 90/180/270-degree image rotation ensure you get the right view in any orientation.
Key features
-
HD video with night vision via built-in IR LEDs for visibility up to 30 metres in low light
-
2.0 MP Sony STARVIS CMOS sensor delivering crisp images up to 1920 x 1080 pixels
-
Images standard and reversed with rotation options of 90°, 180°, or 270°
-
IPX7 water rating for use in demanding marine environments
-
Low power consumption — max 5 W with IR LEDs on; operates on 12 V DC supply
-
Garmin Marine Network compatibility for seamless streaming to one or more chartplotters
Specifications
- : Standard and reversed; rotates 90°, 180°, or 270°
- : Built-in IR LEDs; distance up to 30 metres
- : 99° horizontal / 74° vertical
- : 2.0 MP 1/2.8" SONY STARVIS CMOS; Progressive scan
- : Up to 1920 x 1080
- : H.264 over GMN
- : Hardwired 10 V DC to 16 V DC or via Garmin power and audio module
- : -20°C to 60°C
- : IPX7
- (12 V DC): 210 mA (IR Off) / 370 mA (IR On)
- : Max 5 W with IR LEDs On
In the box
- GC 200 marine IP camera
- 6 metre Garmin Marine Network cable (small connector)
- Garmin Marine Network adapter cable (small connector to large connector)
- Mounting hardware
- Documentation
Install with ease and expand your onboard awareness. The GC200 is compact, easy to mount in almost any orientation, and built to endure the marine environment while delivering dependable, high-quality video to your Garmin chartplotters.
| Power |
Hardwired (10 V DC to 16 V DC or through Garmin power and audio module) |
| Camera connection |
Garmin Marine Network |
| Images |
Standard and reversed; rotated 90, 180 or 270 |
| Night vision |
Built-in IR LEDs |
| Night vision distance |
Up to 30 metres |
| Viewing angle |
99 degrees horizontal/74 degrees vertical |
| Image sensor |
2.0 megapixel ½.8" SONY STARVIS CMOS |
| Scanning system |
Progressive scan |
| White balance |
Auto |
| Shutter speed |
Auto |
| Resolution |
Up to 1920 x 1080 pixels* |
| Video output |
H.264 over GMN |
| Operating temperature |
-20°C to 60°C |
| Water rating |
IPX7 |
| Power consumption |
Max 5 W with IR LEDs On |
| Operating current |
12 V DC: 210mA (IR Off)/370mA (IR On) |
