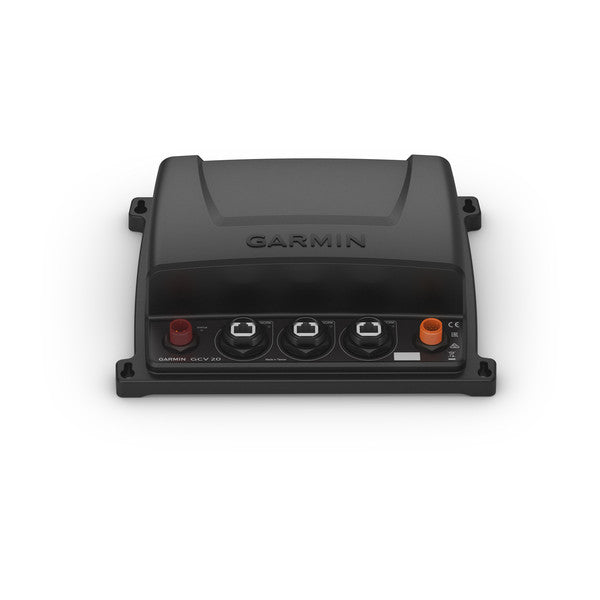

The Garmin GCV20 ClearVü/SideVü Module is a networkable sonar black box designed for crystal-clear underwater imaging, and it arrives without a transducer. Perfect for builders who want to pair this high-definition scanning sonar with a compatible transducer of their choice.
Ultra High-Definition Scanning Sonar
-
ClearVü and SideVü imaging deliver stunning, razor-sharp detail of structure and fish, both directly below and off to the sides of your boat.
- Depth capability up to 200 feet below the hull with downward-facing ClearVü for exceptional bottom detail.
- Wide-side imaging up to 125 feet to each side and 250 feet total for SideVü, revealing target density and underwater features with clarity.
- Ultra High-Definition performance, powered by a downward-facing element that enhances target visibility and definition at greater depths compared with standard high-frequency scanning sonars.
Networked Flexibility and Compatibility
- Share Ultra High-Definition sonar images across multiple networked chartplotters for synchronized viewing and decision-making.
- Designed for Garmin Marine Network compatibility to expand your sonar capabilities and chartplotter integration.
- Optional Panoptix all-seeing sonar can be added to your networked sonar suite for even more situational awareness.
- Simple installation as a compact black box that integrates with your existing Garmin setup (transducer sold separately).
Specifications at a Glance
-
Water rating: IPX7
-
Ports: Garmin Marine Network ports (3)
-
Temperature range: 5°F to 158°F (-15°C to 70°C)
-
Frequencies: Ultra High-Definition ClearVü 0.8 MHz (800 kHz), CHIRP 760–880 kHz; Ultra High-Definition SideVü 1.2 MHz (1,200 kHz), CHIRP 1,060–1,170 kHz
-
Transmit power: 500 W RMS
-
Maximum depth: 200 feet
-
Dimensions: 9.9" x 7.6" x 2.6" (251 mm x 192 mm x 66 mm)
What's in the Box
- GCV 20 Sonar Black Box
- Right-angle power cable
- Right-angle ethernet cable
- Mounting hardware
- Documentation
Note: This listing is for the GCV 20 Sonar Black Box (no transducer). Transducer is not included and must be purchased separately.
| General |
| Water rating |
IPX7 |
| Garmin Marine Network™ ports |
3 |
| Temperature range |
From 5°F to 158°F (from -15°C to 70°C) |
| Sonar Features & Specifications |
| Frequencies supported |
Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz
Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz |
| Transmit power |
500 W rms |
| Maximum depth |
200' Ultra High-Definition ClearVü
125' to each side Ultra High-Definition SideVü, 250' total |
| Dimensions |
9.9" 7.6" 2.6" (251 mm 192 mm 66 mm) |
