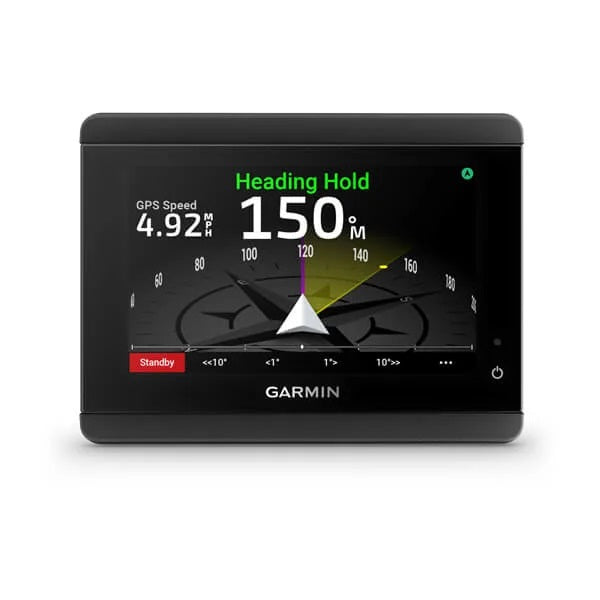

Garmin GHC50 Marine Autopilot Control Display delivers effortless helm control with a bright, responsive 5" touchscreen. Navigate with a simple touch on an anti-glare WVGA display housed in a premium edge-to-edge glass design that looks as sharp as it works. Seamlessly share settings with other Garmin MFDs via the Garmin Marine Network (GMN) and bring your integrated system to life across compatible devices.
-
5" WVGA touchscreen with anti-glare for clear viewing and easy navigation in all lighting conditions.
-
Edge-to-edge glass and premium industrial design that aligns with GPSMAP chartplotters for a cohesive helm aesthetic.
-
Wired or wireless remote control options let you choose the setup that fits your boat and style of sailing.
-
Garmin Marine Network (GMN) and wireless connectivity enable sharing of settings and data across multiple Garmin devices, creating a truly integrated marine system.
-
Wide compatibility with all GHP™ Reactor autopilots, select quatix® marine watches, the Garmin autopilot remote, and GRID™ 20 remote for versatile control.
-
Standalone or networked operation with software updates via wireless connectivity and full feature sharing when connected to GMN.
-
Rugged marine endurance with IPX7 water rating built to withstand the harsh conditions at sea.
-
Compact footprint at 4.13" x 4.51" x 2.01" (105 x 140 x 51 mm) and weight of 11.57 oz (328 g) for flexible helm mounting.
-
Electrical specifications operate on 9–32 Vdc with typical current draw of 220 mA at 12 Vdc and a maximum of 400 mA (maximum power 4.9 W at 10 Vdc).
Experience effortless autopilot control that adapts to your preferred navigation style. Whether you’re cruising, island-hopping, or charting a new course, the GHC50 keeps you in command with intuitive touch controls, seamless system integration, and robust performance that keeps your voyage smooth and enjoyable.
-
What’s in the box:
- GHC™ 50
- Black trim piece snap cover
- Protective cover
- Flush mount gasket and hardware
- Garmin Marine Network cable
- Garmin Marine Network adapter cable
- NMEA 2000® drop cable
- NMEA 2000 T-connectors and terminators
- Documentation
| General |
| Dimensions |
4.13" x 4.51" x 2.01" (105 x 140 x 51 mm) |
| Touchscreen |
yes |
| Display resolution |
800 x 480 |
| Display type |
WVGA |
| Weight |
11.57 oz (328 g) |
| Water Rating |
IPX7 |
| Mounting options |
Flat or flush |
| Connections |
| NMEA 2000 ports |
1 |
| Garmin Marine Network ports |
1 |
| ANT+ (Connectivity) |
Yes |
| Garmin Wi-Fi Network (local connection) |
yes |
| Electrical Features |
| Power input |
9 to 32 Vdc |
| Typical current draw at 12 VDC |
220 mA |
| Maximum current draw at 12 VDC |
400 mA |
| Maximum power usage at 10 VDC |
4.9 W |
