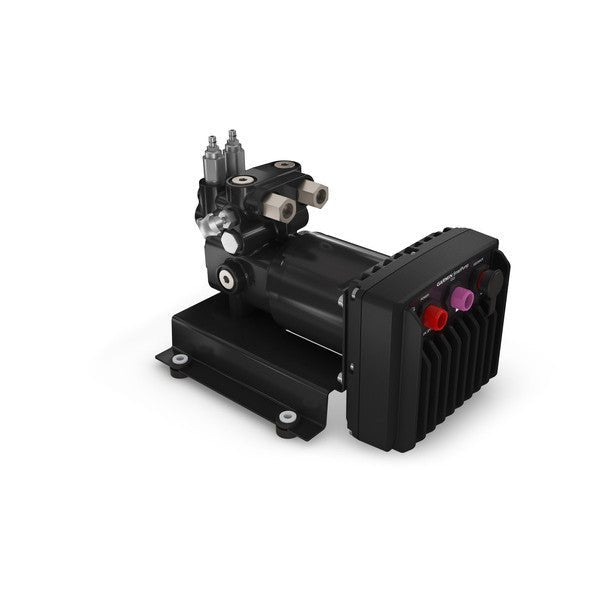

The Garmin GHP SmartPump V2 is a compact hydraulic steering pump designed for a wide range of boats and helm configurations, delivering dependable, precise control when you need it most. Built for easy installation and enduring marine performance, it adapts to diverse vessels and steering cylinders.
-
Wide compatibility: Compatible with steering cylinder sizes from 4–24 cu in; delivers a 7-second lock-to-lock on cylinders up to 17 cu in for precise steering control.
-
Compact, efficient design: Reduced size and weight versus the previous version with improved thermal performance and lower power consumption.
-
Easy installation: Color-coded connectors simplify wiring for confident and speedy setup.
-
Durable marine construction: Corrosion-resistant components featuring black dye on aluminum parts and nickel-plating on steel parts for marine environments.
-
Power and performance: Power input 10–30 Vdc; fuse 40 A; standby current <1 A; engaged 5–10 A; peak 34 A.
-
Configured flow: Flow rate configurable from 0 to 2.4 L/min to match your helm’s needs.
-
Build materials: ECU – fully gasketed aluminum alloy; bracket – carbon steel; manifold – aluminum alloy; motor – aluminum alloy.
-
Dimensions and weight: 6.6" x 7.5" x 10.4" (167.6 x 190.5 x 264.16 mm); weight 16.5 lbs (7.5 kg).
-
Temperature range: Operation from -15°C to 55°C (5°F to 131°F).
-
Power cable length: 9 ft (2.7 m).
Designed for reliability and easy installation, the Garmin GHP SmartPump V2 provides precise steering with a single, versatile pump suitable for many vessels. Its configurable flow, low standby power, and durable marine construction help you achieve confident helm control and efficient operation on every voyage.
| Dimensions (H x W x D) |
6.6" x 7.5" x 10.4" (167.6 x 190.5 x 264.16 mm) |
| Weight |
16.5 lbs (7.5 kg) |
| Temperature range |
From 5°F to 131°F (from -15°C to 55°C) |
| Material |
Electronics Control Unit (ECU) - fully gasketed, aluminum alloy; bracket - carbon steel; manifold - aluminum alloy; motor - aluminum alloy |
| Power cable length |
9 ft (2.7 m) |
| Power input |
10-30 Vdc |
| Fuse |
40 A, blade-type |
| Main power usage |
standby - less than 1 A; engaged - 5-10 A; peak - 34 A |
| Flow rate |
Configurable from 0 to 2.4 L per minute |
