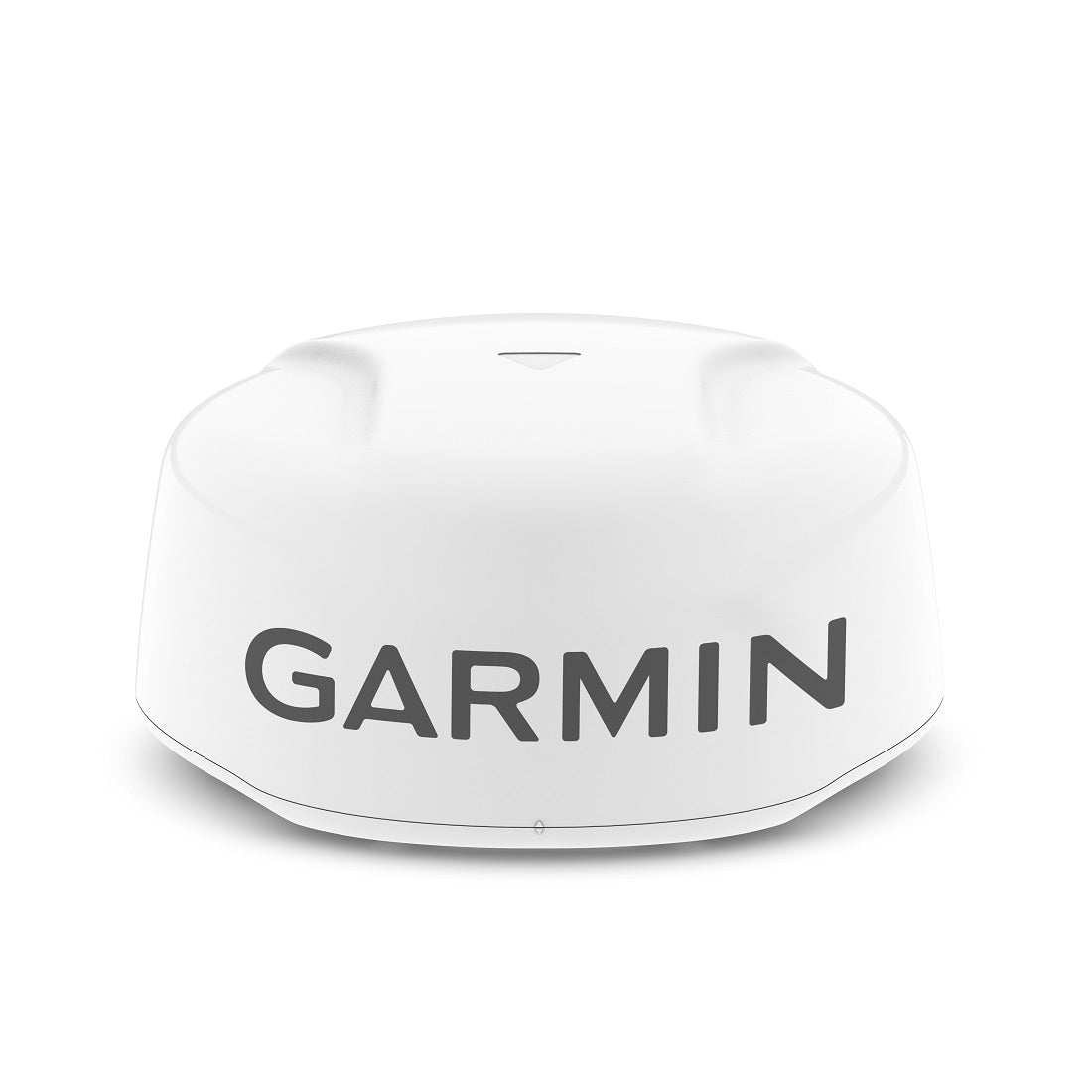

Experience precision at sea with the Garmin GMR Fantom 18x, a 50-watt solid-state dome radar engineered for clarity, speed, and intelligent power management. Available in a white or black housing to match your boat, this 18-inch dome comes with 15-meter cables for flexible installation and reliable performance from 20 feet to 48 nautical miles, with a 60 RPM rotation for rapid target updates.
MotionScope technology uses the Doppler effect to color-code moving targets, helping you distinguish boats, weather, and wildlife at a glance. High-resolution imagery and 8-bit true color enhance target separation, while motion trails let you quickly identify potential threats or opportunities on the water.
-
Power management: Power Save mode and transmit-time control down to the second let you use more power when you need it and conserve it when you don’t.
-
Target detection: Rapid, accurate detection across a wide range with optimal gain for clear returns in fog or rain; up to 60 RPM refresh for fast-moving targets.
-
Target tracking: NEW MARPA automatic acquisition tracks up to 30 targets with no user prompts, plus VRM and EBL for quick distance and bearing measurements.
-
Display and integration: Overlay radar images onto your chartplotter map, with a single radar providing split-screen views and independent range controls; dual radar options offer redundancy.
-
Adaptability: Auto sea clutter gain adjusts to calm, medium, and rough seas, ensuring clearer returns in diverse conditions.
-
Target resolution: Adjust on-screen target resolution for better separation based on your surroundings.
-
Ease of use: Minimal setup with no complex user settings—install and start using quickly.
-
Safety and navigation tools: History trail to identify moving targets, variable range markers (VRM), and electronic bearing lines (EBL) for fast, accurate navigation and collision avoidance.
-
Durability and build: IPX7 waterproof rating; dimensions 20" x 9.8"; antenna length 17"; weight 14 lbs.
-
Included: 18-inch dome radar with 15-meter cables for a complete, ready-to-install package.
Upgrade your onboard radar capability with the Garmin GMR Fantom 18x to enjoy powerful detection, intelligent power usage, and seamless chartplotter integration. Built for performance in any weather, it helps you navigate with confidence and efficiency.
| General |
| DIMENSION |
20" x 9.8" (50.8 cm x 24.8 cm) |
| WEIGHT |
14.0 lbs |
| WATERPROOF |
IPX7 |
| ANTENNA LENGTH |
17" (43.18 cm) |
| ROTATION SPEED (RPM) |
Up to 60 rpm, depending on settings |
| BEAM WIDTH |
5.2° horizontal, 25° vertical |
| 5.2° horizontal, 25° vertical |
48 nm |
| MINIMUM RANGE |
6 meters |
| RADAR TYPE |
Radome |
| Electrical Features |
| POWER INPUT |
10-32 V DC |
| POWER CONSUMPTION |
4 W |
| MAX POWER CONSUMPTION TRANSMITTING, POWER SAVE |
24 W |
| MAX POWER CONSUMPTION TRANSMITTING, NORMAL MODE |
33 W |
| TRANSITION POWER |
50 W |
| Radar Features |
| DUAL RANGE SUPPORT |
Yes |
| RADAR OVERLAY SUPPORT |
Yes |
| DUAL RADAR |
Yes |
| AUTOBIRD |
Yes |
| DYNAMIC AUTO GAIN |
Dynamic |
| MARPA TARGET TRACK |
Yes (Requires Heading Sensor, Sold Separately) |
| ECHO TRAIL |
Yes |
| MOTIONSCOPE |
Yes |
| TARGET SIZE |
Yes |
| SCAN |
Yes |
