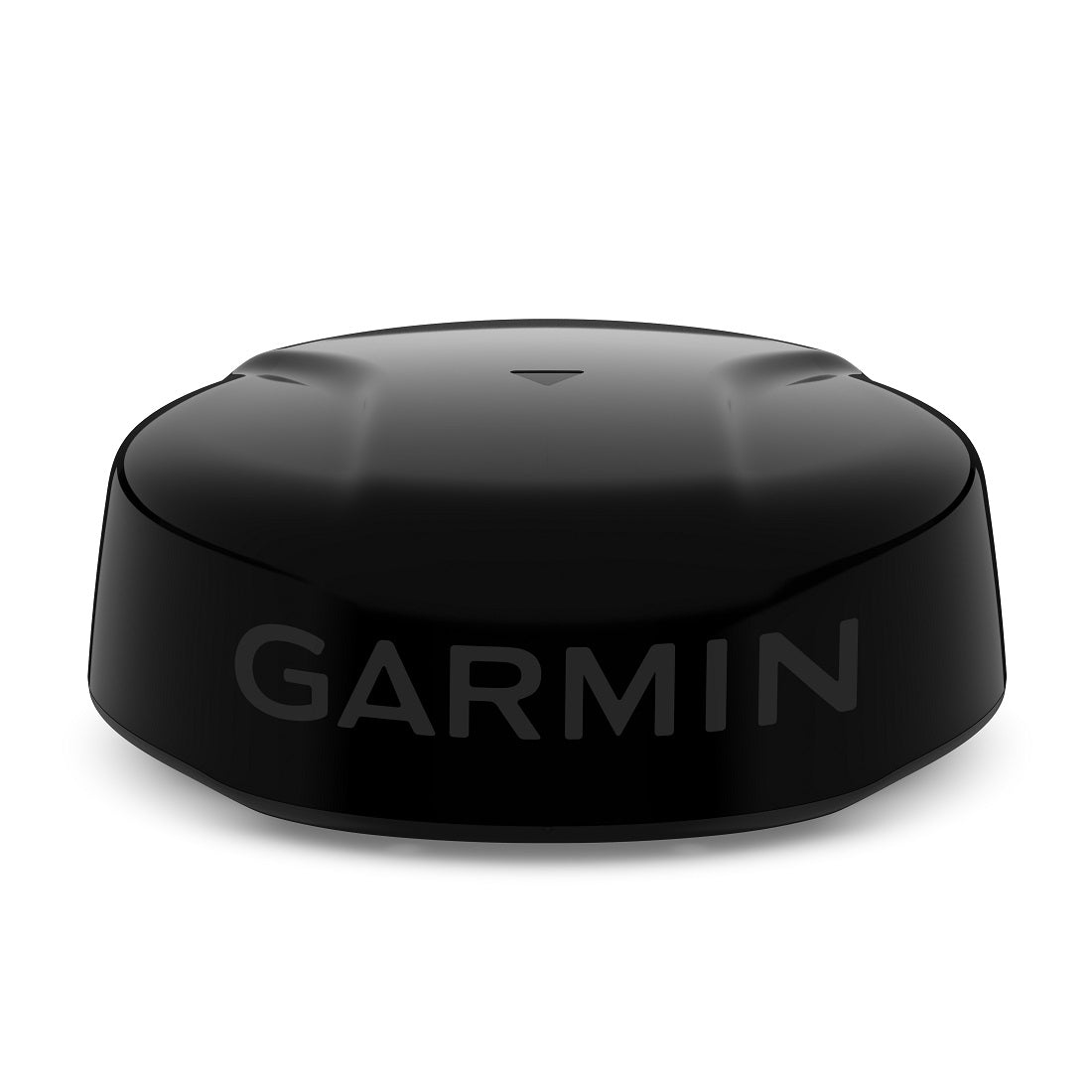

Experience uncompromising radar clarity with the Garmin GMR Fantom 24x Radar in Black. This 50-watt solid-state dome radar delivers high‑resolution targets, fast refresh, and smart features designed to help you navigate safely and efficiently on every voyage.
-
50-watt solid-state dome radar with a 24-inch dome and a sleek black finish (model 010-02585-10). Range from 20 feet to 48 nautical miles and a maximum rotation speed of 60 RPM for quick target updates.
-
MotionScope technology uses the Doppler effect to color-code moving targets, so you can distinguish vessels, weather, and other threats at a glance.
-
Power Save mode lets you choose when to use full power, reducing energy consumption and extending your onboard power when you don’t need maximum range.
- Transmit timing you can tailor to seconds, not minutes, giving you precise control over power use while you monitor around the clock.
-
High-resolution imagery and high antenna gain provide clear target separation at distance, with 8-bit true color imagery for enhanced readability.
-
MARPA automatic acquisition can trigger and track up to 30 targets with no user prompting, supporting safe navigation around other vessels and within defined zones.
- Dual radar support and overlay on chartplotter maps enable seamless integration with your displays, plus split-screen compatibility for parallel close and long-range views.
- Overlay radar data onto your chartplotter’s map page, with optional autopilot or heading sensor to optimize steering and target tracking.
-
VRM (Variable Range Markers) and EBL (Electronic Bearing Lines) provide rapid distance and bearing measurements to vessels or land for quick decisions.
-
Adaptive surroundings system automatically calibrates to sea clutter and conditions—calm, moderate, or rough—for clearer targets.
- Single vs. dual radar configurations offer flexibility and redundancy, with independent range controls for each display and easy installation.
Why choose the GMR Fantom 24x for your boat?
Designed for ease of use with straightforward installation and minimal設定, this radar helps you see what matters—whether you're navigating through fog, chasing fishing hotspots, or avoiding traffic around busy harbors. The Fantom 24x combines power, precision, and efficiency in a compact, rugged package that’s built to perform in challenging marine environments.
Specifications
-
DIMENSION 25.4" x 9.8" (64.5 cm x 24.9 cm)
-
WEIGHT 17.4 lbs
-
WATERPROOF IPX7
-
ANTENNA LENGTH 23" (58.42 cm)
-
ROTATION SPEED Up to 60 rpm
-
BEAM WIDTH 3.7° horizontal, 25° vertical; 5.2° horizontal, 25° vertical
| General |
| DIMENSION |
25.4" x 9.8" (64.5 cm x 24.9 cm) |
| WEIGHT |
17.4 lbs |
| WATERPROOF |
IPX7 |
| ANTENNA LENGTH |
23" (58.42 cm) |
| ROTATION SPEED (RPM) |
Up to 60 rpm, depending on settings |
| BEAM WIDTH |
3.7° horizontal, 25° vertical |
| 5.2° horizontal, 25° vertical |
48 nm |
| MINIMUM RANGE |
6 meters |
| RADAR TYPE |
Radome |
| Electrical Features |
| POWER INPUT |
10-32 V DC |
| POWER CONSUMPTION |
4 W |
| MAX POWER CONSUMPTION TRANSMITTING, POWER SAVE |
24 W |
| MAX POWER CONSUMPTION TRANSMITTING, NORMAL MODE |
33 W |
| TRANSITION POWER |
50 W |
| Radar Features |
| DUAL RANGE SUPPORT |
Yes |
| RADAR OVERLAY SUPPORT |
Yes |
| DUAL RADAR |
Yes |
| AUTOBIRD |
Yes |
| DYNAMIC AUTO GAIN |
Dynamic |
| MARPA TARGET TRACK |
Yes (Requires Heading Sensor, Sold Separately) |
| ECHO TRAIL |
Yes |
| MOTIONSCOPE |
Yes |
| TARGET SIZE |
Yes |
| SCAN |
Yes |
