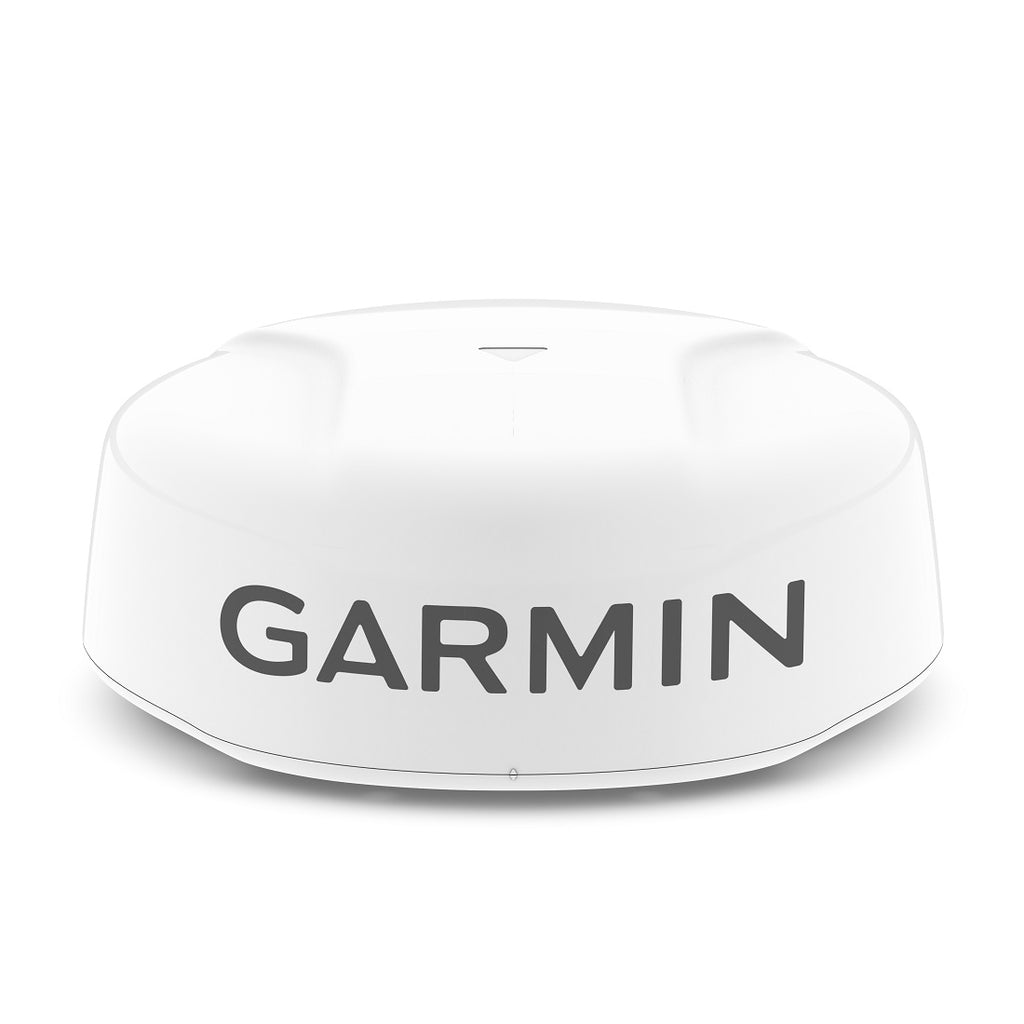

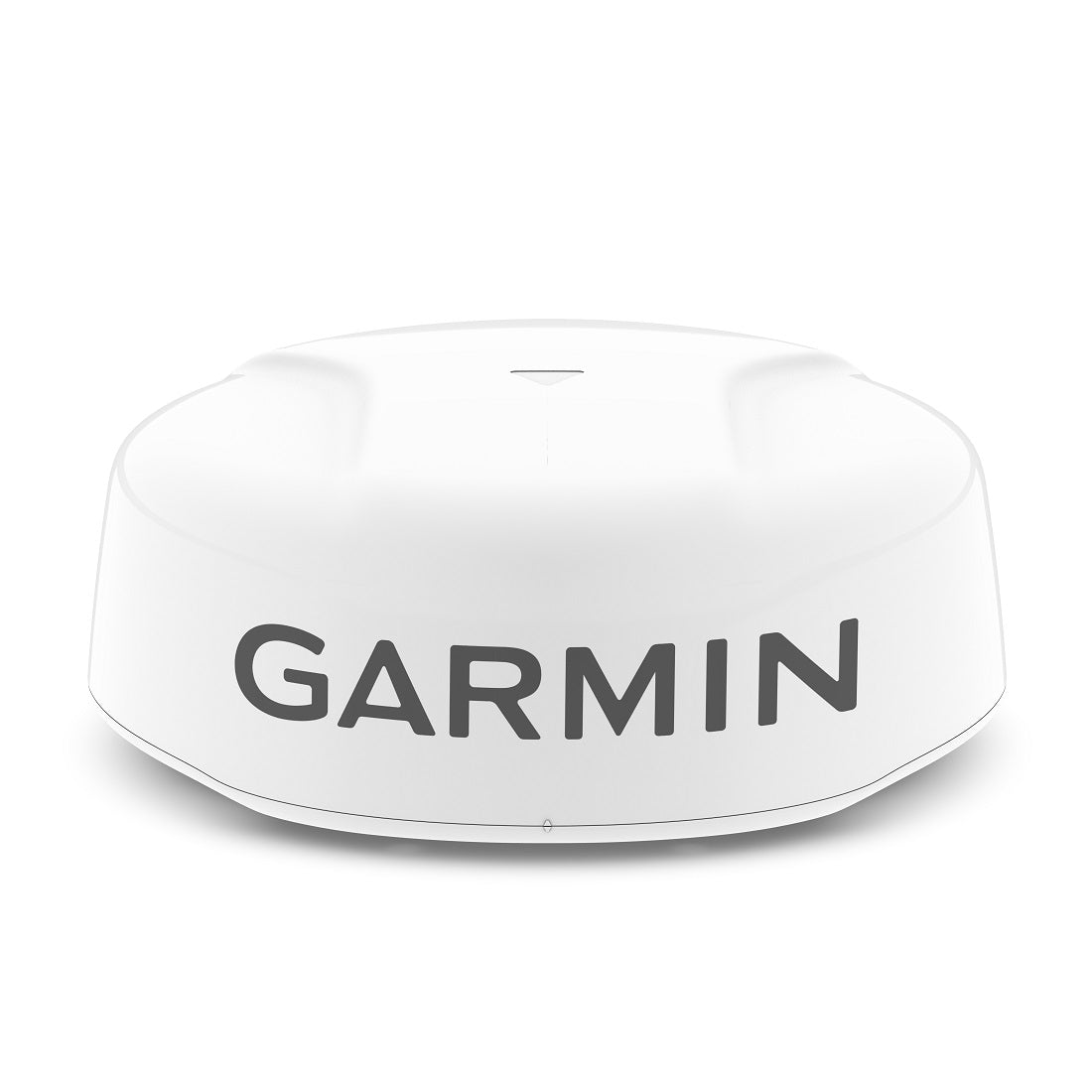

Meet the Garmin GMR Fantom 24x, a white 24" dome radar that brings 50 watts of power to your cockpit for ultra-clear target detection. Designed for serious boaters, it combines high-resolution imaging with fast refresh rates to help you navigate safely, spot fishing opportunities, and track weather and traffic with confidence.
-
Powerful 50-watt solid-state dome radar with a detectable range from 20 feet to 48 nautical miles, engineered for clear results in fog, rain, and challenging sea states.
-
MotionScope Doppler technology colors moving targets, letting you quickly distinguish approaching vessels, receding targets, and weather cells at a glance.
-
Power Save mode reduces consumption by letting you choose when to transmit, with transmit times adjustable down to the second for maximum efficiency.
-
Dual color options choose white or black dome to match your helm and vessel aesthetics without compromising performance.
-
High-resolution imaging and strong antenna gain for superior target separation at distance, with a fast 60 RPM rotation for timely updates.
-
On-screen target resolution and historical trail adjustable settings improve target separation; the historical trail helps identify moving targets and potential threats quickly.
-
MARPA automatic plotting aid automatically acquisitions and tracks up to 30 targets, with boundary and guard zones for enhanced safety.
-
Flexible radar configurations — a single radar can provide split-screen images on your chartplotter with independent range settings, while dual radar adds redundancy so each display can pull data from a different source.
-
Chartplotter overlay overlays radar images onto your map page for a unified navigation view; add an optional autopilot or heading sensor for optimal results (sold separately).
-
VRM and EBL tools let you measure distance and bearing to vessels and land quickly for precise navigation decisions.
-
Adaptive sea clutter gain automatically adjusts to calm, medium, or rough seas, helping you maintain clear targets in varying conditions.
-
Rugged and reliable with IPX7 waterproof rating, durable construction, and compact dimensions (25.4" x 9.8" footprint; antenna length 23"); weight 17.4 lbs.
-
Includes long cabling 15 m cables ensure flexible installation and routing across your helm or cockpit.
Garmin GMR Fantom 24x combines ease of use with advanced radar capabilities, delivering precise, actionable information when you need it most. Its straightforward setup, powerful features, and expandability make it a standout choice for cruisers, anglers, and coastal navigators alike.
| General |
| DIMENSION |
25.4" x 9.8" (64.5 cm x 24.9 cm) |
| WEIGHT |
17.4 lbs |
| WATERPROOF |
IPX7 |
| ANTENNA LENGTH |
23" (58.42 cm) |
| ROTATION SPEED (RPM) |
Up to 60 rpm, depending on settings |
| BEAM WIDTH |
3.7° horizontal, 25° vertical |
| 5.2° horizontal, 25° vertical |
48 nm |
| MINIMUM RANGE |
6 meters |
| RADAR TYPE |
Radome |
| Electrical Features |
| POWER INPUT |
10-32 V DC |
| POWER CONSUMPTION |
4 W |
| MAX POWER CONSUMPTION TRANSMITTING, POWER SAVE |
24 W |
| MAX POWER CONSUMPTION TRANSMITTING, NORMAL MODE |
33 W |
| TRANSITION POWER |
50 W |
| Radar Features |
| DUAL RANGE SUPPORT |
Yes |
| RADAR OVERLAY SUPPORT |
Yes |
| DUAL RADAR |
Yes |
| AUTOBIRD |
Yes |
| DYNAMIC AUTO GAIN |
Dynamic |
| MARPA TARGET TRACK |
Yes (Requires Heading Sensor, Sold Separately) |
| ECHO TRAIL |
Yes |
| MOTIONSCOPE |
Yes |
| TARGET SIZE |
Yes |
| SCAN |
Yes |
