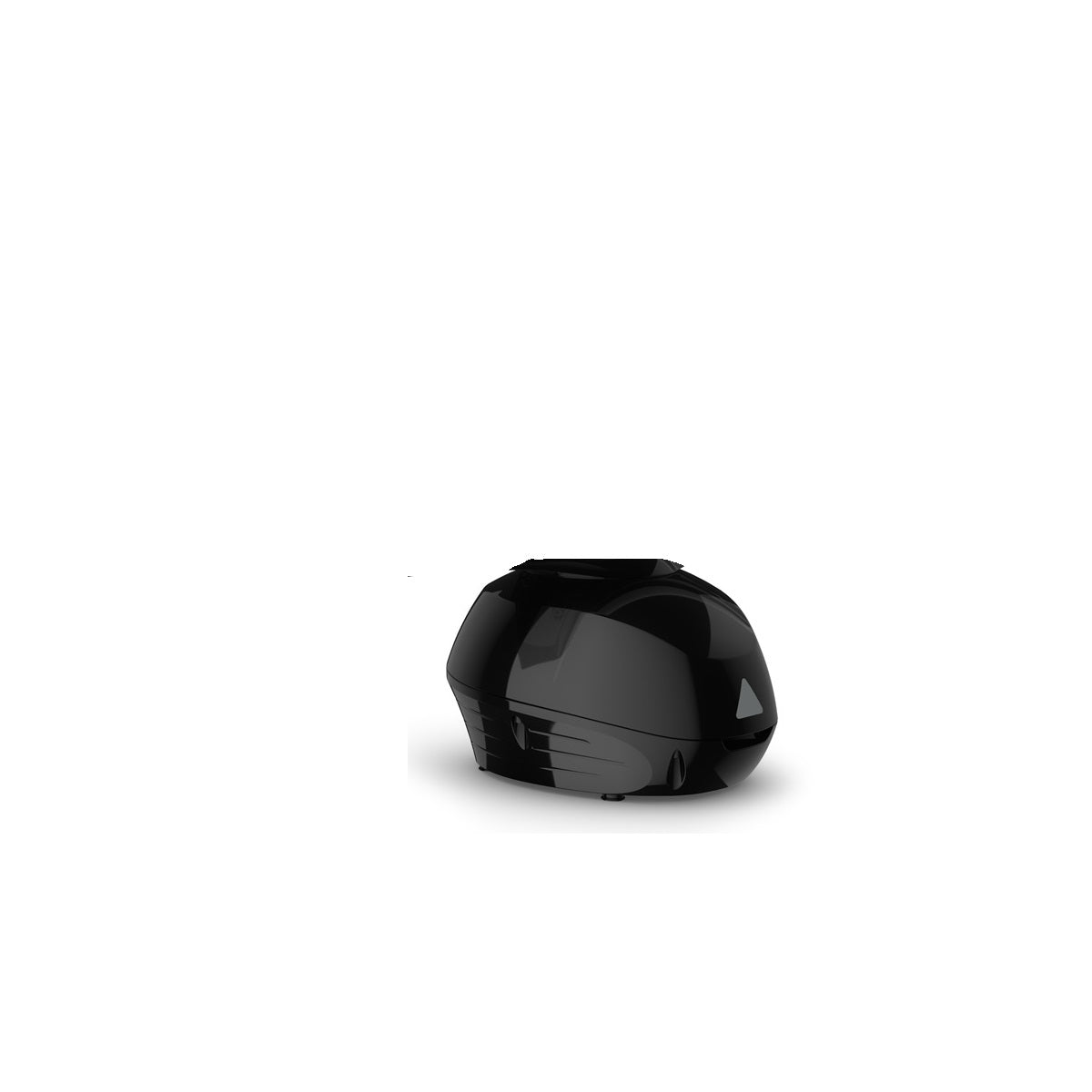

Upgrade your cockpit with the Garmin GMR Fantom 50W Radar Pedestal in Black. This pedestal-only kit delivers powerful marine radar performance when paired with Garmin’s antenna (sold separately), plus all the cables you need for a clean, straightforward install.
Key features
-
MotionScope technology highlights moving targets in color as they approach or depart, helping you navigate around boats, weather, or fishing hotspots at a glance.
-
50 W transmit power for strong, long-range detection and reliable performance in challenging conditions.
-
Pulse compression provides high-resolution imaging while conserving energy for efficient operation.
-
Radar overlay on your map, including without leaving split-screen view, so you stay informed while you navigate.
-
Range from 20 feet to 72 nautical miles, with solid performance in fog or rain.
-
Rotation speeds of 24 RPM (low power) and 48 RPM (fast screen updates). Note: the 48 RPM high-speed mode is available only in single-range mode with MotionScope disabled and on range settings of 12 NM or lower.
- Easy to install with minimal setup—no complex user adjustments required.
Specifications
-
Model: 010-01364-40
-
Pedestal dimensions: 16.6" x 14.3" x 10.7"
-
Weight: 34.7 lb (15.7 kg)
-
Waterproof rating: IPX6
-
Power input: 10-32 V DC
-
Transmit power: 50 W
-
Radar features: Dual Range Yes, Overlay Yes, Dual Radar Support Yes, Auto Bird Gain Yes, Auto Gain Dynamic, MARPA Target Tracking Yes (requires heading sensor, sold separately), Echo Trails Yes, MotionScope Yes, Programmable Antenna Parking Yes, Target Size Yes, Scan Averaging Yes
-
Antenna: Sold Separately
What’s in the box
- GMR Fantom 50 watt Pedestal - Black
- Mounting hardware kit and template
- Right angle power cable (15 meters)
- Right angle network cable (15 meters)
- Documentation
Note: This listing provides the pedestal and cables only. The antenna is sold separately, so you can customize your setup to match your vessel’s needs.
| General |
| DIMENSION |
Pedestal: 16.6" x 14.3" x 10.7" |
| WEIGHT |
34.7 lb (15.7 kg) |
| WATERPROOF |
IPX6 |
| ROTATION SPEED (RPM) |
24 and 48 rpm (high speed only available in single range mode with MotionScope disabled, and on range settings of 12 NM or lower) |
| MAXIMUM RANGE |
72 nm |
| MINIMUM RANGE |
6 meters |
| Electrical Features |
| POWER INPUT |
10-32 V DC |
| TRANSMIT POWER |
50 W |
| Radar Features |
| DUAL RANGE |
Yes |
| OVERLAY |
Yes |
| DUAL RADAR SUPPORT |
Yes |
| AUTO BIRD GAIN |
Yes |
| AUTO GAIN |
Dynamic |
| MARPA TARGET TRACKING |
yes (requires heading sensor, sold separately) |
| ECHO TRAILS |
Yes |
| MOTIONSCOPE |
Yes |
| PROGRAMMABLE ANTENNA PARKING |
Yes |
| TARGET SIZE |
Yes |
| SCAN AVERAGING |
Yes |
| Antenna |
Sold Separately |
