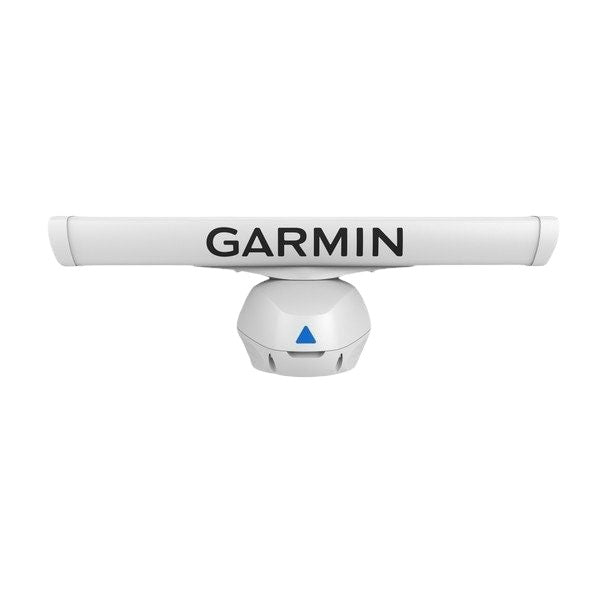

Meet the Garmin GMR Fantom 54 Radar—a 50-watt, 4-foot open-array radar finished in white, designed to deliver confident navigation in any condition. Paired with a pedestal, it provides rapid, reliable target detection and a clear view of land, vessels, birds, and weather so you can steer with precision and peace of mind.
-
Transmit power: 50W of pulse compression power output, approximately equivalent to a 6kW magnetron.
-
Antenna length: 48" (121.92 cm) open-array antenna.
-
Beam width: 1.8° horizontal and 23° vertical for high-definition imaging.
-
Maximum and minimum range: 72 nautical miles maximum range and 6 meters minimum range.
-
Rotation speed: Adjustable 24 or 48 RPM (high-speed mode available under specific conditions).
-
Radar imaging: High-definition target separation with less screen clutter; Echo Trails provide a fading path of moving targets.
-
Target tracking and safety: MARPA target tracking (requires a heading sensor) and guard zone alarm.
-
MotionScope and dynamic filtering: MotionScope Doppler detects moving targets; Auto Bird Gain, Dynamic Auto Gain, and Dynamic Sea Filter optimize performance in varying conditions.
-
Display and overlay: Overlay on chartplotter view; radar can be shown on a single display or split screen with independent range settings.
-
Compatibility and integration: Dual radar support for redundancy or data fusion with other Garmin radars.
-
Durability and operating conditions: IPX6 water rating; max wind speed 80 kt; operates on 10–32 V DC.
-
Dimensions and installation: Pedestal 16.6" x 14.3" x 10.7"; full assembly height 15.9" and diameter 51.8".
-
Finish and mounting: White finish with pedestal included for straightforward installation.
The Fantom 54 delivers precise target separation and reliable detection across surface, air, and weather patterns, helping you identify shoreline features, other boats, and changing weather at a glance. With MotionScope, intelligent filtering, and chartplotter overlay, you can make informed decisions quickly, plan safer routes, and navigate with greater confidence—even in fog, rain, or busy harbor conditions.
| General |
| Water rating |
IPX6 |
| Antenna length |
48" (121.92 cm) |
| Rotation speed (RPM) |
24 and 48 rpm (High Speed only available in Single Range mode, with MotionScope disabled, and on range settings of 12 NM or lower) |
| Transmit power |
50W of pulse compression power output, the approximate equivalent to a 6kW magnetron |
| Beam width |
1.8° horizontal, 23° vertical |
| Maximum range |
72 nm |
| Minimum range |
6 meters |
| Radar Features |
| High definition (outstanding target separation with less screen clutter) |
Yes |
| MARPA target tracking (collision avoidance) |
Yes (Requires Heading Sensor, Sold Separately) |
| Guard zone alarm |
Yes |
| Additional |
| MotionScope |
Yes |
| Auto Bird Gain |
Yes |
| Dual Radar Support |
Yes |
| Echo Trails |
Yes, True |
| Programmable Antenna Parking Position |
Yes |
| Max Wind Speed |
80 kt |
| Input Voltage |
10-32 V |
| Dimensions |
Pedestal: 16.6" x 14.3" x 10.7"
Full assembly: 15.9" height x 51.8" diameter |
