The Garmin GPS 24xd GPS Antenna with Heading Sensor for NMEA 2000 networks combines a precise multi-band GNSS receiver with an integrated heading sensor to deliver reliable position and heading data, even at slow speeds. Built for marine environments, this compact antenna offers expanded GNSS coverage, high-sensitivity tracking, and fast update rates to help you navigate confidently in challenging conditions.
-
Expanded GNSS support for more locations and reliable positioning across multiple satellite networks.
-
High-sensitivity tracking with a fast GPS update rate for near real-time positioning.
-
Heading accuracy at all speeds to provide precise orientation data essential for navigation and chart plotting.
-
IPX7 water resistance and a rugged, gasketed enclosure built to withstand marine elements.
-
Flexible mounting options for simple installation on a cockpit, mast, or dash.
-
NMEA 2000 compatibility for seamless integration with existing backbone networks and devices.

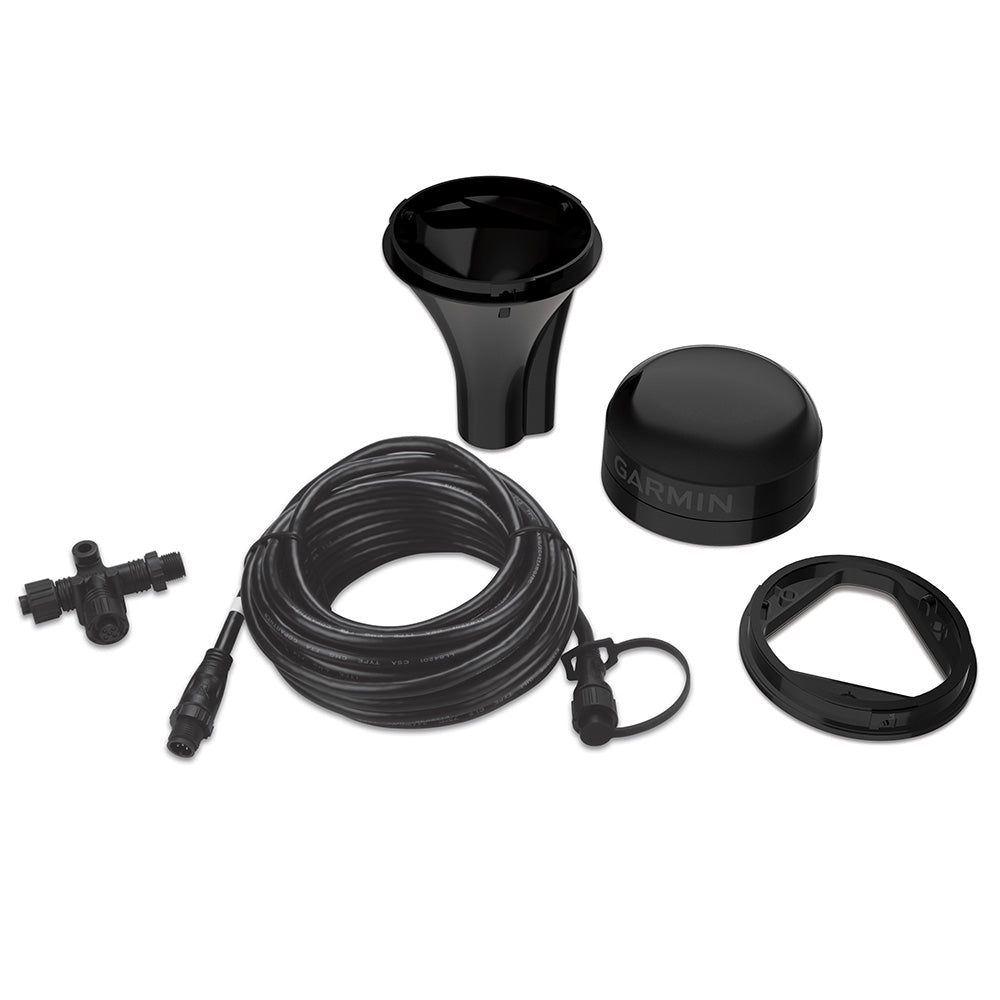

In the Box
- GPS 24xd
- NMEA 2000 pole mount
- Surface mount
- NMEA 2000 backbone/drop cable (6 meters)
- NMEA 2000 T-connector
- Documentation
Specifications
-
Color: Black
-
Dimensions (D x H): 3 19/32" x 1 15/16" (91.6 mm x 49.5 mm)
-
Weight: 6.2 oz (176 g)
-
Cable Length: 19 ft 8" (6 m)
-
Temperature Range: -22° to 149° F (-30° to 65° C) for black variant
-
Case Material: Fully gasketed, high-impact plastic alloy; IPX7 waterproof
-
Compass-Safe Distance: 5.9" (150 mm)
-
Power Source Input: 9-32 Vdc
-
Input Current: 150 mA at 12 Vdc
-
NMEA 2000 Load Equivalency Number (LEN): 3 (150 mA)
-
Position Accuracy (Typical Marine Use): < 1 m CEP; < 3 m at 95%
-
Manufacturer Part No: 010-02316-20
-
UPC: 753759331214
