Experience reliable, high-precision marine navigation with the Garmin GPS24xd NMEA 2000 GPS Sensor with Heading Sensor — Remanufactured. Model 010-N2316-10 expands your vessel’s GNSS capabilities while delivering accurate heading, fast updates, and rugged durability for journeys on any waterway.
-
Model and condition: Remanufactured Garmin GPS24xd with NMEA 2000 compatibility and heading sensor (Model 010-N2316-10).
-
GNSS support: Access GPS, Galileo, GLONASS, and BeiDou for improved position accuracy in challenging conditions.
-
Update rate: 10 Hz updates — position, velocity, and time data delivered ten times per second for responsive navigation.
-
Heading sensor: Built‑in magnetic heading sensor with up to 3° accuracy for stabilized charts, radar overlays, and MARPA at slow speeds.
-
Durability: Marine-grade robustness with a fully gasketed high‑impact plastic alloy and IPX7 water resistance.
-
NMEA 2000 compatibility: Seamless integration with NMEA 2000 devices and backbone networks.
-
Installation options: Flexible mounting with under‑deck, pole, and surface‑mount options; includes a 6 m (19 ft 8 in) cable for easy placement.
-
Position accuracy: Typical marine-use position accuracy < 50 cm CEP; < 1.0 m with compatible displays and autopilots (88%); Multi‑SBAS support for improved integrity.
-
Power and electrical: 9–16 Vdc input, ~150 mA at 12 Vdc; LEN 3 (150 mA).
-
Cable length: 19 ft 8 in (6 m).
-

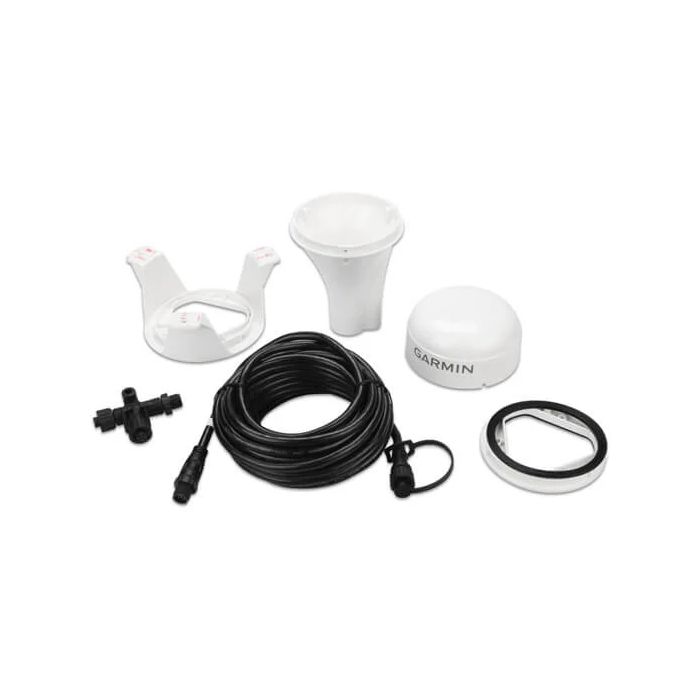

Box contents: GPS 24xd NMEA 2000 - Remanufactured; Pole mount; Surface mount; Under deck mount; NMEA 2000 backbone/drop cable (6 m); NMEA 2000 T-connector; Documentation; Cable length 19 ft 8 in (6 m).
This remanufactured GPS24xd sensor delivers reliable navigation data you can trust on any waterway. With four GNSS systems, fast 10 Hz updates, and precise heading support, it enhances chart accuracy, radar overlays, and MARPA—even when signals are challenged. Built for real‑world marine use, its IPX7 enclosure and flexible mounting options keep performance steady from deck to below deck, while straightforward NMEA 2000 connectivity makes it a natural fit for expanding or upgrading your boat’s instrument network.
| Cable length |
19 ft 8" (6 m) |
| Temperature range |
-22° to 176° F (-30° to 80° C) |
| Case material |
Fully gasketed, high-impact plastic alloy; waterproof to IPX7 |
| Compass-safe distance |
5.9" (150 mm) |
| Power source input |
9-16 Vdc, unregulated |
| Input current |
150 mA at 12 Vdc |
| NMEA 2000 Load Equivalency Number (LEN) |
3 (150 mA) |
| Position accuracy, typical marine use |
< 50 cm, CEP 50%; < 1.0 meter, 88% |
