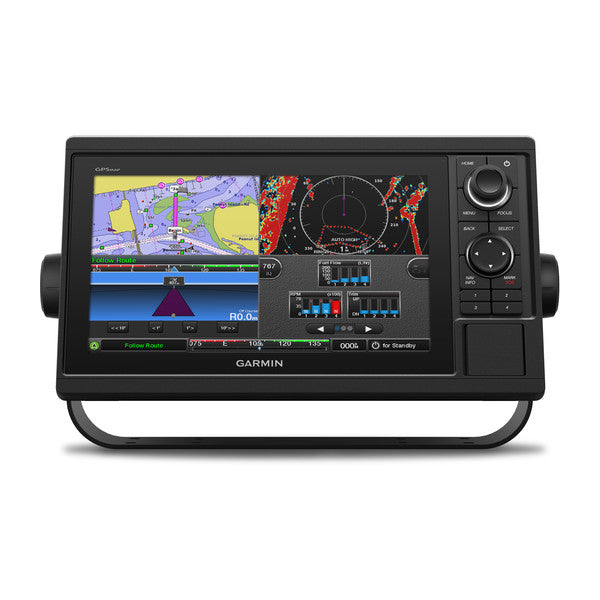

Garmin GPSMAP1022 10-inch Plotter with Worldwide Basemap delivers an all-in-one navigation solution crafted for cruisers, sailors, and sailing racers. Its large, bright color display pairs with a tactile keypad and a multifunction control knob for quick, confident operation even in challenging conditions.
-
10 Hz GPS/GLONASS—fast, responsive position and heading updates to keep your course true and your waypoints accurate.
-
Worldwide Basemap built-in for broad mapping coverage, with the option to upgrade to premium BlueChart g3 Vision and LakeVü g3 Ultra for enhanced detail, 3D relief, and satellite imagery.
-
Advanced networking—fully compatible with Garmin Marine Network, NMEA 2000, and NMEA 0183, enabling seamless sharing of sonar, maps, user data, radar (dome or open-array), IP cameras, and Panoptix sonar across multiple units.
-
Wireless and smart integration—built-in Wi‑Fi and the free ActiveCaptain app let you plan trips, manage maps and charts, receive smart notifications, sync data, and access the Garmin Quickdraw Contours Community from nearly anywhere.
-
Pre-race sailing tools—a dedicated race page with virtual starting line, laylines, time to burn, and a synchronized race timer to help you optimize strategy and performance on the water.
-
Seamless data transfer—easily import GPX files from other devices, bringing your waypoints, tracks, and routes into the GPSMAP1022 for a smoother transition.
-
Waypoints and routes—store up to 5,000 accurate waypoints for quick navigation back to critical locations or favorite spots.
-
Extensive marine features—support for autopilots, weather, VHF, AIS, FUSION-Link, and other sensors; enhanced wind data, heading, course over ground, set and drift, and true/apparent wind calculations to boost situational awareness.
-
Scalable charting—start with the built-in Basemap and upgrade later with BlueChart g3 Vision or LakeVü g3 Ultra maps to access high-resolution charts and advanced cartography when you need it.
Designed to grow with your needs, the GPSMAP1022 is the reliable core of your marine cockpit—delivering precise navigation, rich data, and easy connectivity so you can focus on the voyage and the thrill of the race.
| Performance and Physical |
| Dimensions |
12.5" x 7.3" x 2.7" (318 x 185 x 69 cm) |
| Display size |
8.8" x 4.9" (224 x 125 cm) |
| Display resolution |
1024 x 600 |
| Display type |
WSVGA display |
| Weight |
4.1lbs |
| Water rating |
IPX7 |
| Power consumption |
Max power usage at 10 Vdc: 32.4 W |
| Antenna |
Internal or external over NMEA 2000 |
| Mounting options |
Bail or flush |
| Receiver |
10 Hz high-sensitivity |
| Garmin Marine Network™ ports |
2 |
| Preloaded maps |
None |
| Accepts data cards |
2 SD™ cards |
| Waypoints |
5,000 |
| Routes |
100 |
| Track log |
50,000 points; 50 saved tracks |
| Tide tables |
Yes |
| Garmin Radar compatible |
Yes |
| Garmin Sonar compatible |
Yes (with external black box, sold separately) |
| Garmin SmartMode compatible (customizable monitor presets) |
Yes |
| Supports AIS (tracks target ships position) |
Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) |
Yes |
| Garmin Meteor™ Audio System compatible |
Yes |
| Supports FUSION-Link™ compatible radios |
Yes |
| GSD™ Black Box sonar support |
Yes |
| GCV™ Black Box sonar support |
Yes |
| ActiveCaptain compatible |
Yes |
| Garmin Helm compatible |
Yes |
| GRID™ (Garmin Remote Input Device) compatible |
Yes |
| Wireless remote compatible |
Yes |
| CHIRP sonar technology |
Yes (with external black box, sold separately) |
| ClearVü |
Yes (with external black box, sold separately) |
| SideVü |
Yes (with external black box, sold separately) |
| NMEA 2000® compatible |
Yes |
| NMEA 0183 input ports |
1 |
| NMEA 0183 output ports |
1 |
| Video input ports |
1 BNC |
| Video output ports |
None |
| Wireless connectivity |
Yes |
