Discover the Garmin GPSMAP 1022xsv 10-inch Comb Basemap — a powerful, all-in-one navigation and sonar solution designed for serious boaters who demand clarity, speed, and seamless connectivity. This basemap model is shipped without a transducer, giving you the freedom to pair it with the CHIRP transducers you prefer.

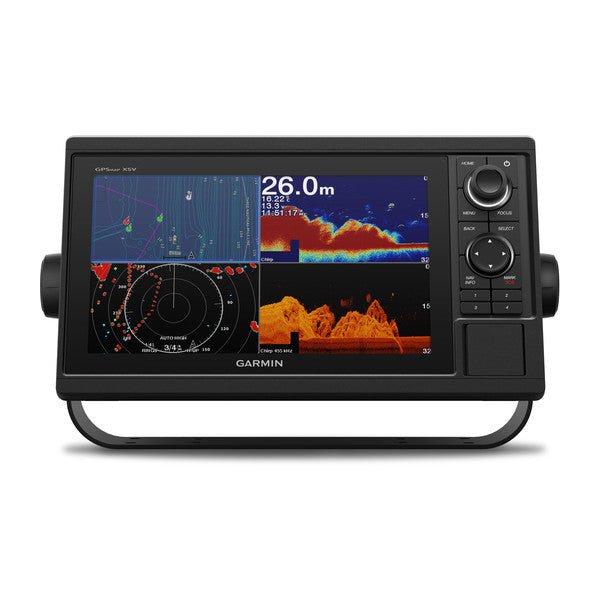

All-in-One 10" GPSMAP 1022xsv Chartplotter with CHIRP Sonar
Equipped with a bright 10-inch color display, a keypad interface, and a multifunction control knob, the GPSMAP 1022xsv keeps essential data at your fingertips for quick decisions on the water.
-
High-sensitivity 10 Hz GPS/GLONASS updates position and heading 10 times per second for smooth on-screen tracking and reliable waypoint navigation (up to 5,000 waypoints).
-
Built-in CHIRP sonar suite including 1 kW CHIRP, CHIRP ClearVü and CHIRP SideVü for crisp target separation both below and to the sides of your boat.
-
Panoptix support for all-seeing sonar when paired with Panoptix transducers (sold separately) to view real-time sonar in 2D, forward, and live scanning modes.
-
Garmin Marine Network & NMEA connectivity share sonar, maps, data, radar, IP cameras, and Panoptix data across multiple units. Includes NMEA 2000 and NMEA 0183 support for autopilots, weather, VHF, AIS and other sensors.
-
Optional BlueChart g3 Vision premium charts for advanced mapping, auto routing, and enhanced capabilities when you add the charts.
-
ANT wireless and Wi-Fi connectivity with compatible devices such as quatix watches and Garmin Nautix displays, plus built-in Wi-Fi for easy access to the ActiveCaptain app and updates.
-
ActiveCaptain integration plan trips, prefish lakes, sync charts, and stay connected with the boating community from anywhere, while receiving software updates and notifications.
-
Transducer readiness ships without a transducer, allowing you to customize your sonar setup by selecting CHIRP, ClearVü/SideVü, or Panoptix transducers that fit your boat and fishing needs.
-
Intuitive control a large display, quick keypad interface, programmable keys, and a multifunction knob streamline operation while you’re on the water.
Right out of the box, you have access to advanced sonar capabilities; simply add the transducer(s) you prefer. The GPSMAP 1022xsv combines navigation, sonar, and smart connectivity into one rugged, easy-to-use package so you can navigate, fish, and explore with confidence.
| Performance and Physical |
| Dimensions |
12.5" x 7.3" x 2.7" (318 x 185 x 69 cm) |
| Display size |
8.8" x 4.9" (224 x 125 cm) |
| Display resolution |
1024 x 600 |
| Display type |
WSVGA display |
| Weight |
4.1lbs |
| Water rating |
IPX7 |
| Power consumption |
Max power usage at 10 Vdc: 32.4 W |
| Antenna |
Internal or external over NMEA 2000 |
| Mounting options |
Bail or flush |
| Receiver |
10 Hz high-sensitivity |
| Garmin Marine Network™ ports |
2 |
| Preloaded maps |
None |
| Accepts data cards |
2 SD™ cards |
| Waypoints |
5,000 |
| Routes |
100 |
| Track log |
50,000 points; 50 saved tracks |
| Tide tables |
Yes |
| Garmin Radar compatible |
Yes |
| Garmin Sonar compatible |
Yes (built-in) |
| Garmin SmartMode compatible (customizable monitor presets) |
Yes |
| Supports AIS (tracks target ships position) |
Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) |
Yes |
| Garmin Meteor™ Audio System compatible |
Yes |
| Supports FUSION-Link™ compatible radios |
Yes |
| GSD™ Black Box sonar support |
Yes |
| GCV™ Black Box sonar support |
Yes |
| ActiveCaptain compatible |
Yes |
| Garmin Helm compatible |
Yes |
| GRID™ (Garmin Remote Input Device) compatible |
Yes |
| Wireless remote compatible |
Yes |
| Dual-frequency (50/200 kHz) sonar capable |
Yes |
| Dual-beam (77/200 kHz) sonar capable |
Yes |
| Transmit power |
1 kW traditional; 1 kW CHIRP |
| CHIRP sonar technology |
Yes (Built-in) |
| ClearVü |
Yes with CHIRP (built-in) |
| SideVü |
Yes with CHIRP (built-in) |
| Maximum depth |
5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| Bottom lock (shows return from the bottom up) |
Yes |
| Water temperature log and graph |
Yes |
| Sonar recording |
Yes |
| Sonar history rewind |
Yes |
| NMEA 2000® compatible |
Yes |
| Transducer pin numbers |
12 |
| NMEA 0183 input ports |
1 |
| NMEA 0183 output ports |
1 |
| Video input ports |
1 BNC |
| Video output ports |
None |
| Wireless connectivity |
Yes |
