About the Product

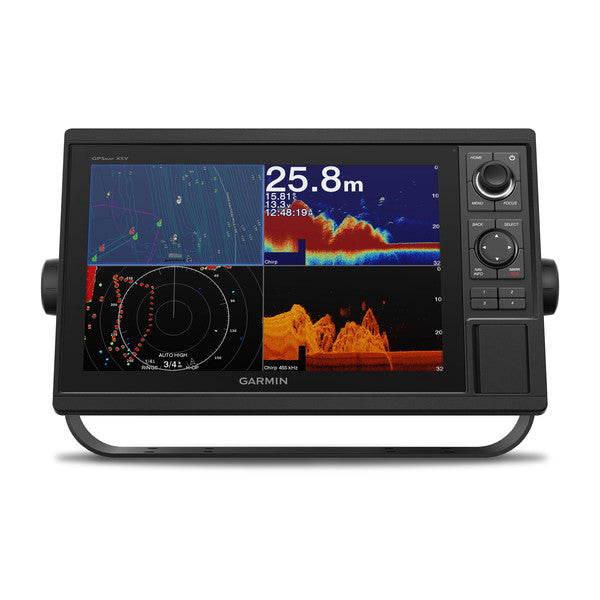

Meet the Garmin GPSMAP 1222xsv — a powerful 12-inch chartplotter and sonar all in one, built to elevate every voyage. With a bright color display, a streamlined keypad interface, and a multifunction control knob, this unit puts navigation and sonar control at your fingertips for quick, confident decision making on the water.
All‑in‑One Display and Sonar Suite
- 12-inch color display with a rugged keypad interface and intuitive multifunction control knob for fast, one‑hand operation.
- High‑sensitivity internal 10 Hz GPS and GLONASS receiver for precise positioning and heading updates up to 10 times per second.
- Built‑in CHIRP sonar with CHIRP ClearVü and CHIRP SideVü scanning sonar for detailed underwater views and target separation.
- Panoptix compatible support (transducers sold separately) for real‑time all‑seeing sonar across multiple modes.
- Ready for premium Garmin sonar modules and a wide range of transducers to tailor performance to your boat and waters.
Networking, Connectivity & Smart Features
- Fully network capable for Garmin Marine Network, plus NMEA 2000 and NMEA 0183 support to connect autopilots, weather, VHF, AIS and more.
- Share sonar, maps, and data across networked units, including radar, IP cameras, and Panoptix sonar, for a synchronized fishing and boating experience.
- Built‑in Wi‑Fi enables the free ActiveCaptain app to plan trips, pre‑fish lakes, shop for maps, and receive software updates from anywhere.
- ANT wireless compatibility with quatix marine watches, Garmin Nautix displays, gWind transducers, GNX Wind, and wireless remotes for seamless control.
Navigation, Memory & Expandability
- Fast, responsive performance with 10 Hz GPS/GLONASS updates keeps your position and heading smooth on screen.
- Drop up to 5,000 waypoints quickly and navigate back with confidence.
- Two SD card slots for expandable maps and data, including LakeVü and other compatible cartography options.
- Out of the box, enjoy robust sonar features and the option to add transducers and modules as your needs evolve.
Designed for serious anglers and mariners, the GPSMAP 1222xsv delivers a high‑contrast display, advanced sonar capabilities, and comprehensive connectivity in one powerful package. Elevate your fishing, cruising, and planning with an all‑in‑one solution that grows with you on the water.
| Performance and Physical | |
| Dimensions | 14.1" x 8.9" x 2.7" (35.8 x 22.6 x 6.9 cm) |
| Display size | 10.3" x 6.4" (26.2 x 16.3 cm) |
| Display resolution | 1280 x 800 |
| Display type | WXGA display |
| Weight | 5.2 lbs |
| Water rating | IPX7 |
| Antenna | Internal or external over NMEA 2000 |
| NMEA 2000® compatible | Yes |
| NMEA 0183 compatible | Yes |
| SiriusXM™ Weather & Radio compatible | Yes |
| Power consumption | Max power usage at 10 Vdc: 34.8 W Typical current draw at 12 Vdc: 2.2 A Max current draw at 12 Vdc: 2.9 A |
| Mounting options | Bail or flush |
| Maps and Memory | |
| Preloaded maps | None |
| Accepts data card | 2 SD™ cards |
| Waypoints | 5,000 |
| Routes | 100 |
| Track log | 50,000 points; 50 saved tracks |
| Chartplotter Features | |
| Garmin Radar compatible | Yes |
| Garmin Sonar compatible | Yes (with external black box, sold separately) |
| Wireless remote compatible | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| Tide tables | Yes |
| Garmin Meteor Audio System compatible | Yes |
| Supports Fusion Lync compatible marine radios | Yes |
| GSD™ Black Box sonar support | Yes |
| GCV™ Black Box sonar support | Yes |
| BlueChart® Mobile (planning) compatible | Yes |
| Garmin Helm compatible | Yes |
| GRID™ (Garmin Remote Input Device) compatible | Yes |
| Connections | |
| Transducer | 1 - 12 pin |
| NMEA 0183 input ports | 1 |
| NMEA 0183 output ports | 1 |
| Video input ports | 1 BNC |
| Video output ports | None |
| Wireless connectivity | Yes |
| Garmin Marine Network™ ports | 2 |
| Sonar Features and Specifications | |
| CHIRP sonar technology | Yes (Built-in) |
| ClearVü | Yes with CHIRP (built-in) |
| SideVü | Yes with CHIRP (built-in) |
| Dual-frequency (50/200 kHz) sonar capable | Yes |
| Dual-beam (77/200 kHz) sonar capable | Yes |
| Frequencies supported | Traditional: 50/77/83/200 kHz CHIRP (low, medium, high) ClearVü/SideVü (260/455/800 kHz) (dependent on transducer) |
| Transmit power | 1 kW traditional; 1 kW CHIRP |
| Maximum depth | 5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| Bottom lock (shows return from the bottom up) | Yes |
| Water temperature log and graph | Yes |
| Sonar recording | Yes |
| Sonar history rewind | Yes |
