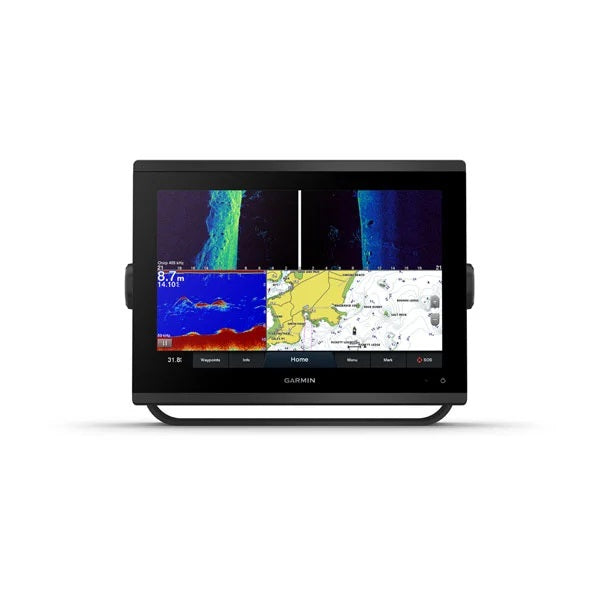

Meet the Garmin GPSMAP1223XSV 12in Combo — a powerhouse 12-inch chartplotter and sonar system designed to elevate every voyage. With built‑in Ultra High‑Definition SideVü and ClearVü alongside traditional CHIRP sonar, you’ll see fish, structure, and contours with remarkable clarity. Preloaded worldwide basemap and coastal charts keep you confident in any waters, while modern network connectivity and multi‑device integration let you manage your marine world from nearly anywhere.
Why the GPSMAP1223XSV 12in Combo stands out
-
Ultra High‑Definition SideVü and ClearVü scanning sonars: vivid, high‑contrast color palettes make it easy to distinguish fish from structure.
-
1 kW CHIRP traditional sonar: powerful performance for traditional sonar needs.
-
Panoptix LiveScope compatibility: pair with Panoptix or Panoptix LiveScope (transducer sold separately) to see all around your boat in real time.
-
12-inch WXGA display: ultrasleek design with improved sunlight readability and wide‑angle visibility for clear viewing in bright conditions.
-
Worldwide basemap with coastal charts: navigate confidently anywhere with preloaded mapping.
-
OneChart, Garmin Helm and OneHelm digital switching: build and control your marine system from one screen, including engine and device integration.
-
Smart connectivity: share maps and data among Garmin devices, connect autopilots, weather, Fusion‑Link audio, VHF, AIS, IP cameras, and more.
-
Wi‑Fi connectivity: pair with the free Garmin app for smart notifications, software updates, and remote control features.
-
Engine integration: connect to select Yamaha engines and bring engine data and controls into your chartplotter interface.
Designed for performance and ease of use
-
Seamless multi‑device ecosystem: share maps, user data, radar and other information across compatible Garmin devices for a cohesive marine experience.
-
Real‑world durability: rugged construction with IPX7 water rating ensures reliable operation in challenging marine environments.
-
Powerful yet efficient: optimized power usage supports long days on the water without unnecessary drain.
Specifications snapshot
-
Model: 010-02367-02
-
Display: 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm); 12.1" diagonal; WXGA 1280x800
-
Weight: 6.6 lbs (3.0 kg)
-
Water rating: IPX7
-
Power: Max 26.5 W at 10 Vdc; Typical 1.7 A at 12 Vdc; Max 2.2 A at 12 Vdc
-
Antenna: Internal or external via NMEA 2000
| General |
| PHYSICAL DIMENSIONS |
12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm) |
| DISPLAY SIZE |
10.3" x 6.4"; 12.1" diagonal |
| DISPLAY RESOLUTION |
1280 x 800 pixels |
| DISPLAY TYPE |
WXGA display |
| WEIGHT |
6.6 lbs. (3.0 kg) |
| WATER RATING |
IPX7 |
| POLARIZED SUPPORT |
Yes |
| POWER CONSUMPTION |
Max power usage at 10 Vdc: 26.5 W
Typical current draw at 12 Vdc: 1.7 A
Max current draw at 12 Vdc: 2.2 A |
| ANTENNA |
Internal or external over NMEA 2000 |
| MOUNTING OPTIONS |
Bail, flush or flat |
| RECEIVER |
10 Hz high-sensitivity |
| GARMIN MARINE NETWORK™ PORTS |
2 |
| TRANSMIT POWER |
1 kW traditional; 1 kW CHIRP |
| Maps & Memory |
| PRELOADED MAPS |
worldwide basemap |
| ACCEPTS DATA CARDS |
2 microSD™ cards (back of unit) |
| WAYPOINTS |
5,000 |
| TRACK LOG |
50,000 points; 50 saved tracks |
| ROUTES |
100 |
| Outdoor Recreation |
| TIDE TABLES |
Yes |
| Chartplotter Features |
| GARMIN RADAR COMPATIBLE |
Yes |
| GARMIN SONAR COMPATIBLE |
Yes (built-in) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) |
Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) |
Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) |
Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS |
Yes |
| GSD™ BLACK BOX SONAR SUPPORT |
Yes |
| GCV™ BLACK BOX SONAR SUPPORT |
Yes |
| ACTIVECAPTAIN COMPATIBLE |
Yes |
| GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE |
Yes |
| WIRELESS REMOTE COMPATIBLE |
Yes |
| SAILING FEATURES |
Yes |
| Sonar Features & Specifications |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE |
Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE |
Yes |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü (260/455/800 kHz)
(dependent on transducer) |
| CHIRP SONAR TECHNOLOGY |
Yes (Built-in) |
| CLEARVü |
Yes with CHIRP (built-in) |
| SIDEVü |
Yes with CHIRP (built-in) |
| MAXIMUM DEPTH |
5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
Yes |
| WATER TEMPERATURE LOG AND GRAPH |
Yes |
| SONAR RECORDING |
Yes |
| SONAR HISTORY REWIND |
Yes |
| Connections |
| NMEA 2000® COMPATIBLE |
Yes |
| TRANSDUCER PIN NUMBERS |
12-pin (orange) |
| NMEA 0183 INPUT PORTS |
1 |
| NMEA 0183 OUTPUT PORTS |
1 |
| VIDEO INPUT PORTS |
1 BNC |
| VIDEO OUTPUT PORTS |
1 HDMI |
| WIRELESS CONNECTIVITY |
Yes |
| J1939 COMPATIBLE |
Yes |
