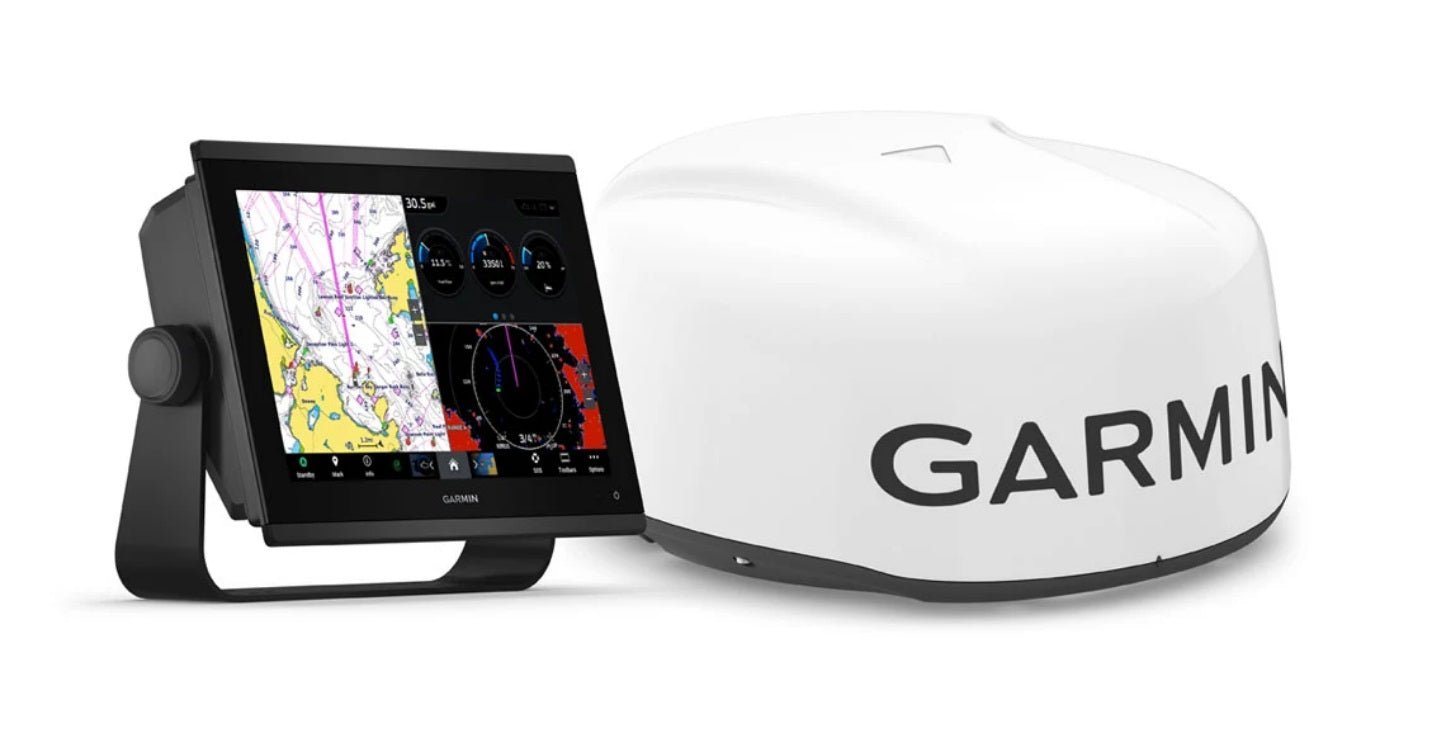

Garmin GPSMAP1223XSV HD3 Radar Pack is a premium 12-inch chartplotter/sonar system built for serious offshore navigators and anglers who demand clarity and control. It combines Ultra High-Definition SideVü and ClearVü imaging, CHIRP sonar, radar, and seamless Garmin networking in a single, integrated package.
-
Display: 12.1" diagonal WXGA display (1280 x 800) with an IPS panel for bright, high-contrast imagery and wide viewing angles, optimized for daylight visibility from anywhere on deck.
-
Imaging & Sonar: Ultra High-Definition SideVü and ClearVü scanning sonar deliver vivid imagery to distinguish fish from structure; 1 kW CHIRP traditional sonar provides deep, crisp bottom detail; Panoptix compatibility for real-time, all-around sonar (transducer sold separately).
-
Radar: Integrated radar with the included GMR18HD3 dome to monitor nearby vessels and weather, day or night.
-
Maps & Memory: Worldwide basemap with coastal charts preloaded; supports 2 microSD cards; 5,000 waypoints; 50,000 track points (50 saved); 100 routes for planning and quick return trips.
-
Connectivity & Networking: Built-in Wi‑Fi for Garmin app features (OneChart), smart notifications, and software updates; share maps, radar, and IP camera video across Garmin devices for a seamless marine network; 2 Garmin Marine Network ports for device interconnection; OneHelm compatibility for digital switching and more.
-
Engine & System Integration: EmpirBus digital switching compatibility with select Yamaha engines brings engine data and controls into the same screen for easier management on the fly.
-
Power & Durability: IPX7 water rating; max power 26.5 W at 10 Vdc; typical current draw 1.7 A at 12 Vdc; max current draw 2.2 A; polarized display support; internal or NMEA 2000 external antenna options.
-
Physical & Installation: 12.1" x 8.9" x 3.2" chassis; 6.6 lb weight; bail, flush, or flat mounting options for versatile installation; 10 Hz high-sensitivity receiver.
-
Transmit Power: 1 kW traditional and 1 kW CHIRP transmission for strong, reliable sonar performance.
With this GPSMAP 1223xsv HD3 Radar Pack, you gain a single, integrated cockpit solution that keeps you informed and in control. Preloaded maps and robust memory support efficient planning and quick returns, while the Ultra HD imaging and CHIRP sonar deliver clear views of fish, structure, and bottom details. Panoptix compatibility adds real-time, all-around sonar, and the built-in radar enhances day and night situational awareness. Garmin networking enables map and radar sharing across devices and OneHelm digital switching for easier boat management, all in a rugged, deck-friendly package designed for offshore use.
| General |
| PHYSICAL DIMENSIONS |
12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm) |
| DISPLAY SIZE |
10.3" x 6.4"; 12.1" diagonal |
| DISPLAY RESOLUTION |
1280 x 800 pixels |
| DISPLAY TYPE |
WXGA display |
| WEIGHT |
6.6 lbs. (3.0 kg) |
| WATER RATING |
IPX7 |
| POLARIZED SUPPORT |
Yes |
| POWER CONSUMPTION |
Max power usage at 10 Vdc: 26.5 W
Typical current draw at 12 Vdc: 1.7 A
Max current draw at 12 Vdc: 2.2 A |
| ANTENNA |
Internal or external over NMEA 2000 |
| MOUNTING OPTIONS |
Bail, flush or flat |
| RECEIVER |
10 Hz high-sensitivity |
| GARMIN MARINE NETWORK™ PORTS |
2 |
| TRANSMIT POWER |
1 kW traditional; 1 kW CHIRP |
| Maps & Memory |
| PRELOADED MAPS |
worldwide basemap |
| ACCEPTS DATA CARDS |
2 microSD™ cards (back of unit) |
| WAYPOINTS |
5,000 |
| TRACK LOG |
50,000 points; 50 saved tracks |
| ROUTES |
100 |
| Outdoor Recreation |
| TIDE TABLES |
Yes |
| Chartplotter Features |
| GARMIN RADAR COMPATIBLE |
Yes |
| GARMIN SONAR COMPATIBLE |
Yes (built-in) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) |
Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) |
Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) |
Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS |
Yes |
| GSD™ BLACK BOX SONAR SUPPORT |
Yes |
| GCV™ BLACK BOX SONAR SUPPORT |
Yes |
| ACTIVECAPTAIN COMPATIBLE |
Yes |
| GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE |
Yes |
| WIRELESS REMOTE COMPATIBLE |
Yes |
| SAILING FEATURES |
Yes |
| Sonar Features & Specifications |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE |
Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE |
Yes |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü (260/455/800 kHz)
(dependent on transducer) |
| CHIRP SONAR TECHNOLOGY |
Yes (Built-in) |
| CLEARVü |
Yes with CHIRP (built-in) |
| SIDEVü |
Yes with CHIRP (built-in) |
| MAXIMUM DEPTH |
5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
Yes |
| WATER TEMPERATURE LOG AND GRAPH |
Yes |
| SONAR RECORDING |
Yes |
| SONAR HISTORY REWIND |
Yes |
| Connections |
| NMEA 2000® COMPATIBLE |
Yes |
| TRANSDUCER PIN NUMBERS |
12-pin (orange) |
| NMEA 0183 INPUT PORTS |
1 |
| NMEA 0183 OUTPUT PORTS |
1 |
| VIDEO INPUT PORTS |
1 BNC |
| VIDEO OUTPUT PORTS |
1 HDMI |
| WIRELESS CONNECTIVITY |
Yes |
| J1939 COMPATIBLE |
Yes |
