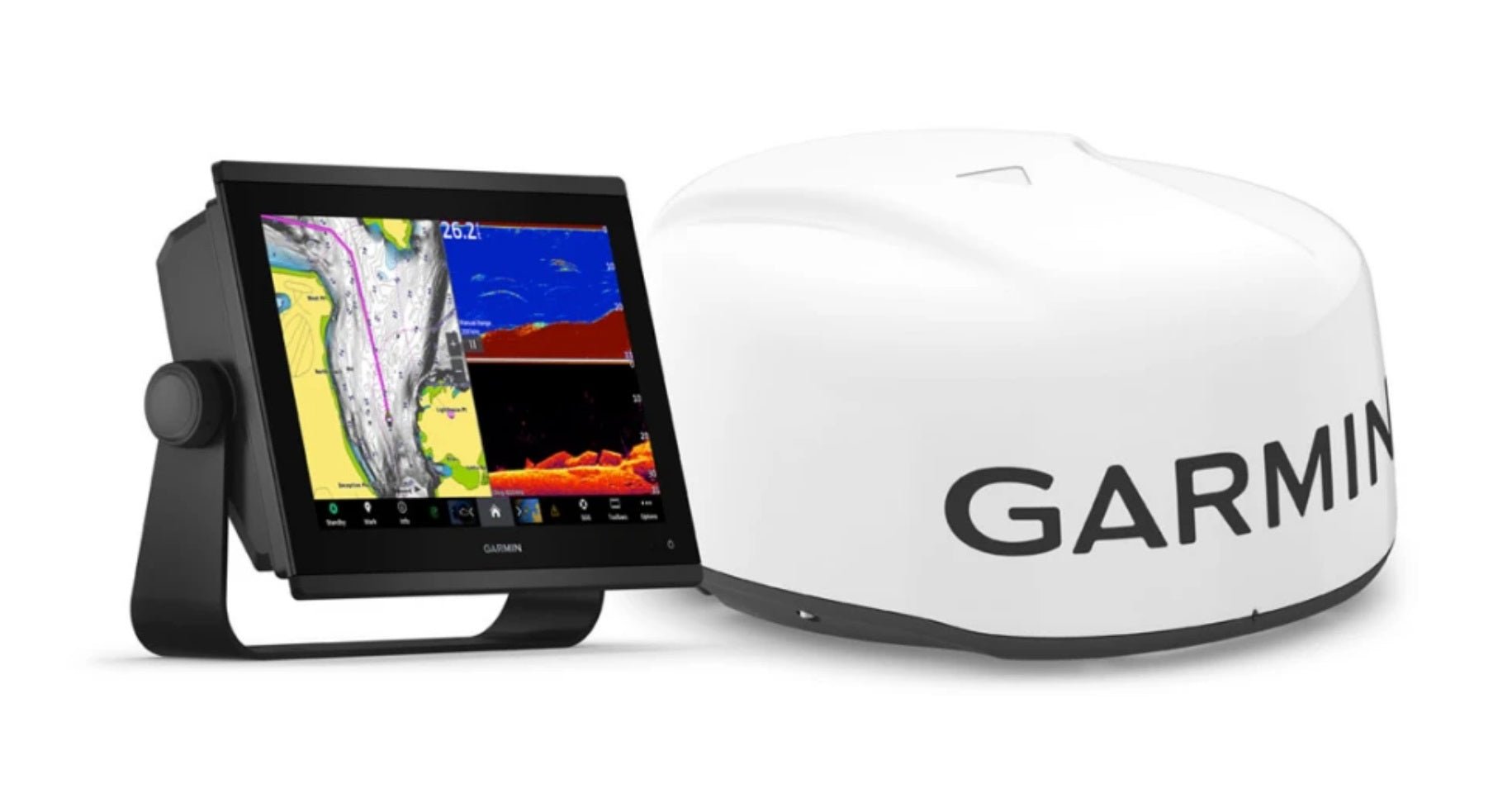

Take command of the water with the Garmin GPSMAP 1243xsv HD3 Radar Pack. This advanced 12" chartplotter/sonar system combines industry-leading SideVü and ClearVü sonar with traditional CHIRP, built-in Navionics+ mapping, and a powerful GMR18HD3 radar dome, delivering crystal-clear targets, topographic detail, and real-time awareness on any lake, coast, or open sea.
All-in-One Marine Solution
Engineered to streamline your cockpit, this bundle integrates seamlessly with multiple Garmin devices, sharing maps, radar, IP camera video, and user data across your helm. The compact, ultracool design houses a high-performance IPS display for sharp readability in bright sunlight and wide viewing angles, making it easy to see critical information at a glance.
Clear, Actionable Sonar and Real-Time Views
-
Ultra high-definition SideVü and ClearVü scanning sonar with vivid color palettes to separate fish from structure and cover.
-
Traditional CHIRP sonar delivering reliable, deep targets with 1 kW power for clearer depth readings.
-
Panoptix LiveScope compatibility (transducer sold separately) for real-time, around-the-boat imaging.
Preloaded Maps and Seamless Networking
-
Navionics+ charts come preloaded for accurate coastal coverage and detailed mapping wherever you navigate.
-
OneChart and Wi‑Fi connectivity enable easy software updates, smart notifications, and sharing across your Garmin ecosystem.
- Connect with Garmin Helm digital switching, EmpirBus digital switching, weather, VHF, AIS, Fusion-Link audio, and more from a single screen.
Engine and Device Compatibility
- Designed to connect with select Yamaha engines and share data with multiple Garmin devices on the boat for a unified marina experience.
- Link to other devices such as quatix watches, GNX wind instruments, wireless transducers, and remote controls for a gold-standard, integrated system.
Durable, Readable, and Ready for the Open Water
Built to perform in demanding conditions, the GPSMAP 1243xsv HD3 features a robust IPX7 water rating, a bright 12" diagonal WXGA display, and a modern, streamlined chassis designed for easy mounting and quick access to critical data when you need it most.
Specifications (highlights)
-
Physical dimensions: 12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm)
-
Display: 12.1" diagonal, 10.3" x 6.4" active area; 1280 x 800 pixels; WXGA
-
Weight: 6.6 lbs (3.0 kg)
-
Water rating: IPX7
-
Polarized support: Yes
-
Power consumption: Max 26.5 W; typical draw 1.7 A at 12 VDC
Elevate your navigation, sonar clarity, and onboard control with the Garmin GPSMAP 1243xsv HD3 Radar Pack—the all-in-one solution for serious anglers and demanding mariners who want precise maps, crisp sonar, and dependable radar in one integrated system.
| General |
| PHYSICAL DIMENSIONS |
12.1" x 8.9" x 3.2" (30.8 x 22.8 x 8.2 cm) |
| DISPLAY SIZE |
10.3" x 6.4"; 12.1" diagonal |
| DISPLAY RESOLUTION |
1280 x 800 pixels |
| DISPLAY TYPE |
WXGA display |
| WEIGHT |
6.6 lbs. (3.0 kg) |
| WATER RATING |
IPX7 |
| POLARIZED SUPPORT |
Yes |
| POWER CONSUMPTION |
Max power usage at 10 Vdc: 26.5 W
Typical current draw at 12 Vdc: 1.7 A
Max current draw at 12 Vdc: 2.2 A |
| ANTENNA |
Internal or external over NMEA 2000 |
| MOUNTING OPTIONS |
Bail, flush or flat |
| RECEIVER |
10 Hz high-sensitivity |
| GARMIN MARINE NETWORK™ PORTS |
2 |
| TRANSMIT POWER |
1 kW traditional; 1 kW CHIRP |
| Maps & Memory |
| PRELOADED MAPS |
Garmin Navionics+™ |
| ACCEPTS DATA CARDS |
2 microSD™ cards (back of unit) |
| WAYPOINTS |
5,000 |
| TRACK LOG |
50,000 points; 50 saved tracks |
| ROUTES |
100 |
| Outdoor Recreation |
| TIDE TABLES |
Yes |
| Chartplotter Features |
| GARMIN RADAR COMPATIBLE |
Yes |
| GARMIN SONAR COMPATIBLE |
Yes (built-in) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) |
Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) |
Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) |
Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS |
Yes |
| GSD™ BLACK BOX SONAR SUPPORT |
Yes |
| GCV™ BLACK BOX SONAR SUPPORT |
Yes |
| ACTIVECAPTAIN COMPATIBLE |
Yes |
| GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE |
Yes |
| WIRELESS REMOTE COMPATIBLE |
Yes |
| SAILING FEATURES |
Yes |
| Sonar Features & Specifications |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE |
Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE |
Yes |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü (260/455/800 kHz)
(dependent on transducer) |
| CHIRP SONAR TECHNOLOGY |
Yes (Built-in) |
| CLEARVü |
Yes with CHIRP (built-in) |
| SIDEVü |
Yes with CHIRP (built-in) |
| MAXIMUM DEPTH |
5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
Yes |
| WATER TEMPERATURE LOG AND GRAPH |
Yes |
| SONAR RECORDING |
Yes |
| SONAR HISTORY REWIND |
Yes |
| Connections |
| NMEA 2000® COMPATIBLE |
Yes |
| TRANSDUCER PIN NUMBERS |
12-pin (orange) |
| NMEA 0183 INPUT PORTS |
1 |
| NMEA 0183 OUTPUT PORTS |
1 |
| VIDEO INPUT PORTS |
1 BNC |
| VIDEO OUTPUT PORTS |
1 HDMI |
| WIRELESS CONNECTIVITY |
Yes |
| J1939 COMPATIBLE |
Yes |
