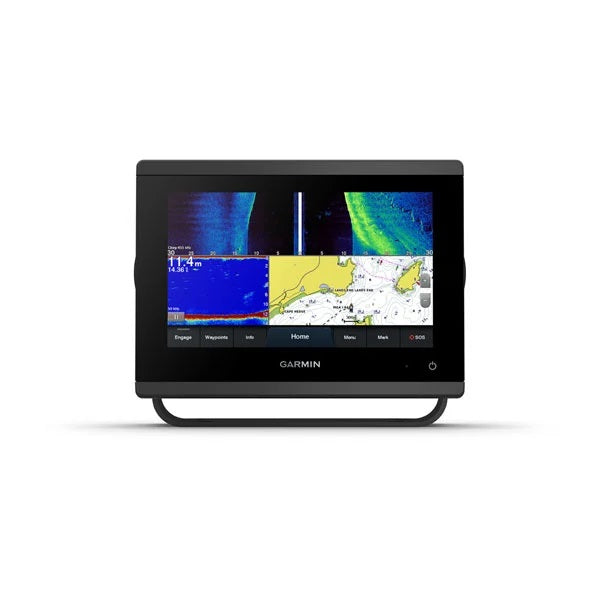

Meet the Garmin GPSMAP 723XSV 7in Combo — a high-performance chartplotter and sonar system built to elevate every voyage. With SideVü, ClearVü, and traditional CHIRP sonar, it delivers crystal-clear underwater imagery and precise fish targeting in a sleek 7-inch package.
-
Display: 7.0" diagonal WSVGA display (1024 x 600) with edge-to-edge glass, sunlight-readable colors, and a compact 6.1" x 3.5" display area; slimline design for easier retrofitting across dash layouts.
-
Sonar system: Ultra High-Definition SideVü and ClearVü imagery plus 1 kW CHIRP traditional sonar for detailed bottom tracking and target separation; optional Panoptix or Panoptix LiveScope real-time sonar (transducer sold separately).
-
Navigation & maps: World-wide basemap built in; supports Navionics data and premium maps; Auto Guidance technology helps plan practical routes.
-
Memory & data: 2 microSD card slots (back of unit) for maps and data; 5,000 waypoints; 50,000 track points; 100 routes; preloaded worldwide basemap.
-
Connectivity & smart control: Built-in Wi‑Fi for Garmin mobile app with OneChart, smart notifications, and software updates; Garmin Marine Network ports for data sharing; OneHelm digital switching and compatibility with third-party devices for centralized control.
-
Marine system integration: Integrates with autopilots, weather, Fusion‑Link audio, VHF, AIS, and other marine electronics for a unified onboard experience; compatible with select Yamaha engines for integrated performance management on one screen.
-
Networking & mounting: Internal or external antenna via NMEA 2000; 1 Garmin Marine Network port; mounting options include bail, flush, or flat for flexible installation.
-
Performance & durability: IPX7 water rating; power max 17.6 W at 10 Vdc; typical 1.1 A at 12 Vdc; max 1.5 A; weight 2.8 lbs (1.3 kg).
The GPSMAP 723XSV 7in Combo helps you find more fish, plan smarter routes, and manage your boat’s systems from a single, intuitive interface. Its combination of high-resolution imaging, robust navigation features, and seamless connectivity creates a trusted, capable hub for navigation, fishing, and onboard control—even as you retrofit to a variety of helm layouts.
| General |
| PHYSICAL DIMENSIONS |
7.6" x 5.5" x 2.9" (19.2 x 14.0 x 7.4 cm) |
| DISPLAY SIZE |
6.1" x 3.5"; 7.0" diagonal (15.4 x 9.1 cm; 17.8 cm diagonal) |
| DISPLAY RESOLUTION |
1024 x 600 pixels |
| DISPLAY TYPE |
WSVGA display |
| WEIGHT |
2.8 lbs (1.3 kg) |
| WATER RATING |
IPX7 |
| POLARIZED SUPPORT |
Yes |
| POWER CONSUMPTION |
Max power usage at 10 Vdc: 17.6 W
Typical current draw at 12 Vdc: 1.1 A
Max current draw at 12 Vdc: 1.5 A |
| ANTENNA |
Internal or external over NMEA 2000 |
| MOUNTING OPTIONS |
Bail, flush or flat |
| RECEIVER |
10 Hz high-sensitivity |
| GARMIN MARINE NETWORK™ PORTS |
1 |
| Maps & Memory |
| PRELOADED MAPS |
Worldwide Basemap |
| ACCEPTS DATA CARDS |
2 microSD™ cards (back of unit) |
| WAYPOINTS |
5,000 |
| TRACK LOG |
50,000 points; 50 saved tracks |
| ROUTES |
100 |
| Outdoor Recreation |
| TIDE TABLES |
Yes |
| Chartplotter Features |
| GARMIN RADAR COMPATIBLE |
Yes |
| GARMIN SONAR COMPATIBLE |
Yes (built-in) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) |
Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) |
Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) |
Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS |
Yes |
| GSD™ BLACK BOX SONAR SUPPORT |
Yes |
| GCV™ BLACK BOX SONAR SUPPORT |
Yes |
| ACTIVECAPTAIN COMPATIBLE |
Yes |
| GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE |
Yes |
| WIRELESS REMOTE COMPATIBLE |
Yes |
| SAILING FEATURES |
Yes |
| Sonar Features & Specifications |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE |
Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE |
Yes |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü (260/455/800 kHz)
(dependent on transducer) |
| CHIRP SONAR TECHNOLOGY |
Yes (Built-in) |
| CLEARVü |
Yes with CHIRP (built-in) |
| SIDEVü |
Yes with CHIRP (built-in) |
| MAXIMUM DEPTH |
5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
Yes |
| WATER TEMPERATURE LOG AND GRAPH |
Yes |
| SONAR RECORDING |
Yes |
| SONAR HISTORY REWIND |
Yes |
| Connections |
| NMEA 2000® COMPATIBLE |
Yes |
| TRANSDUCER PIN NUMBERS |
12-pin (orange) |
| NMEA 0183 INPUT PORTS |
1 (Differential) |
| NMEA 0183 OUTPUT PORTS |
1 (Differential) |
| VIDEO INPUT PORTS |
1 BNC |
| WIRELESS CONNECTIVITY |
Yes |
| J1939 COMPATIBLE |
Yes |
