About the Product

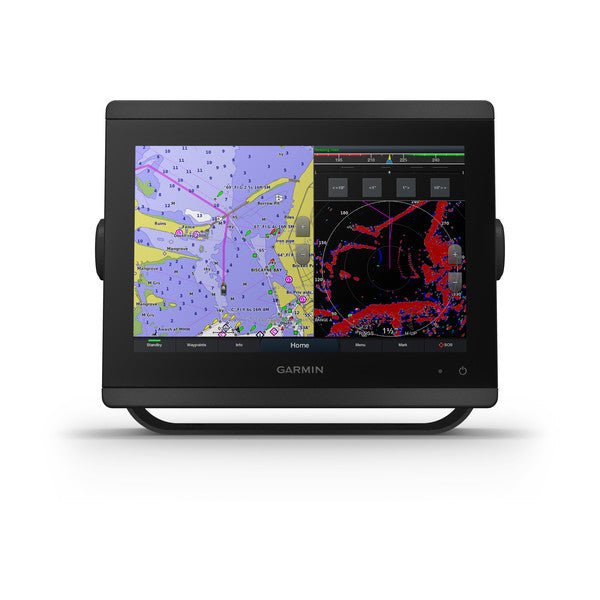

Meet the Garmin GPSMAP 8410 10" Plotter — a premium multifunction display (MFD) built for serious cruisers, sailors, and sail racers. Its 10" full HD IPS touchscreen delivers sharp, glare-free visuals with wide viewing angles and stellar readability even in bright sun or through polarized sunglasses. This plotter is designed to blend into a sleek glass helm, with edge-to-edge displays that can be mounted flat or flush for a modern cockpit look.
High-performance display and intuitive control
The GPSMAP 8410 features a responsive 10" full HD IPS touchscreen for fast map drawing, effortless navigation, and easy interaction with your onboard systems. It also provides standard USB touch output to function as a touchscreen monitor for Windows and Mac operating systems.
Comprehensive networking for a connected cockpit
- NMEA 2000 and Garmin Marine Network enable seamless integration of radar, autopilots, cameras, instruments, and forward-looking sonar across multiple screens.
- Built-in Bluetooth, ANT technology, and Wi-Fi keep your chartplotter connected to the ActiveCaptain ecosystem and mobile capabilities.
SailAssist and smart handling for racing and cruising
The SailAssist feature provides critical sailing data and prerace guidance, helping racers and crews stay ahead. SmartMode™ station controls offer quick, one‑touch access to the information you need during high-stress moments like docking, while OneHelm coordinates onboard systems—digital switching, lighting, stabilization and more—directly to your chartplotter screen for streamlined operation.
Performance, memory, and expandability
Powered by a premium-performance processor, the GPSMAP 8410 delivers fast map rendering and robust networking. Expand memory for purchasing optional maps such as BlueChart g3 and BlueChart g3 Vision with Navionics data, and take advantage of Auto Guidance to see suggested routes tailored to your boat’s specifications.
Mobile connectivity and media integration
Built-in Wi‑Fi enables pairing with the free ActiveCaptain app for OneChart access, smart notifications, and community data from QuickDraw. You can also control video streams from GC™ 100 wireless cameras and VIRB action cameras, keeping entertainment and monitoring at your fingertips.
Wireless and remote control
Networked sonar, radar, cameras, media, and digital switching can operate independently or through SmartMode station controls. ANT wireless technology connects directly to compatible devices like the quatix marine watch, gWind Wireless 2 transducer, and wireless remotes for convenient, clutter-free operation.
GRID 20 remote and cockpit workflow
Optional GRID 20 remote input device provides intuitive remote access and control of your Garmin marine system. It features a 360-degree joystick with a rotary knob and a push-to-select button for easy chartplotter menu navigation and fine-tuning of settings from anywhere at the helm.
Why choose the GPSMAP 8410
- Delivers MFD performance in a compact, combo-size package with a bright, readable display.
- Seamless integration with radar, autopilots, cameras, sensors, and forward-looking sonar via NMEA 2000 and Garmin Marine Network.
- Powerful sailing tools, Fast map drawing, and expandable maps with Navionics data.
- Remote control and smart cockpit features that reduce helm workload and enhance safety.
| General | |
| Physical dimensions | 10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm) |
| Weight | 5.2 lbs (2.4kg) |
| Water rating | IPX6 and IPX7 |
| Display type | touchscreen IPS display (anti-glare finish) |
| Display size | 8.6" x 5.4" (21.8 cm x 13.7 cm) |
| Display resolution | WUXGA; 1920 x 1200 pixels |
| Power consumption | 2.0 A |
| Antenna | Internal or external over NMEA 2000 |
| Mounting options | Bail, flat or flush (Garmin do not offer any hardware or accessories for a flat-mount installation. Professional tools and knowledge is required.) |
| Receiver | 10 Hz GPS/GLONASS/Galileo |
| Garmin Marine Network™ ports | 2 |
| Maps & Memory | |
| Accepts data cards | 2 microSD cards (on back) |
| Waypoints | 5,000 |
| Routes | 100 (250 waypoints each) |
| Track log | 50,000 points; 50 saved tracks |
| pre-loaded maps | Worldwide Basemap |
| Outdoor Recreation Features | |
| Tide tables | Yes |
| Chartplotter Features | |
| Garmin Radar compatible | Yes |
| Garmin Sonar compatible | Yes |
| Garmin SmartMode compatible (customizable monitor presets) | Yes |
| Supports AIS (tracks target ships position) | Yes |
| Supports DSC (displays position data from DSC-capable VHF radio) | Yes |
| Supports FUSION-Link™ compatible radios | Yes |
| GSD™ Black Box sonar support | Yes |
| GCV™ Black Box sonar support | Yes |
| ActiveCaptain compatible | Yes |
| Garmin Helm compatible | Yes |
| GRID™ (Garmin Remote Input Device) compatible | Yes |
| Wireless remote compatible | Yes |
| Sonar Features & Specifications | |
| Dual-frequency (50/200 kHz) sonar capable | Yes (with external black box, sold separately) |
| Dual-beam (77/200 kHz) sonar capable | Yes (with external black box, sold separately) |
| Frequencies supported | NA |
| Transmit power | NA |
| CHIRP sonar technology | Yes_(when_connected_to_another_compatible_sonar_device) |
| ClearVü | yes (with GCV™ black box, sold separately) |
| SideVü | yes (with GCV™ black box, sold separately) |
| Maximum depth | NA |
| Connections | |
| NMEA 2000® compatible | Yes |
| Transducer pin numbers | NA |
| NMEA 0183 input ports | 1 differential |
| NMEA 0183 output ports | 1 differential |
| Video input ports | 1 - BNC composite 1 - HDMI (HDCP compliant) |
| Video output ports | 1 HDMI |
| Wireless connectivity | Yes |
