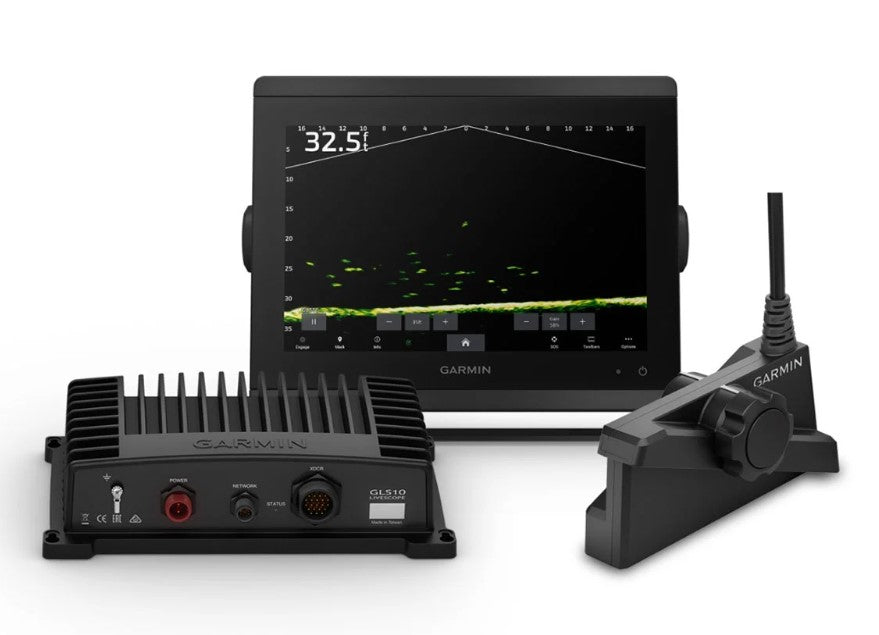

Garmin GPSMAP 8610xsv Ice House LiveScope Plus System GN+ US Inland brings advanced sonar, precise inland/coastal mapping, and rugged on-ice capability to your fishing setup. Designed for serious ice anglers, this system combines cutting-edge LiveScope technology with detailed navigation to help you find and catch more fish.
Experience a 10" full HD IPS touchscreen with crystal-clear display and an HDMI output to mirror sonar results on a TV or external display (HDMI cable not included). This makes it easy to share the action with friends or teammates on the ice.
Go from shallow to deep with LiveScope Forward and LiveScope Down modes, driven by the LVS34-IF transducer and paired with the GLS 10 black box sonar module. The included 0-degree pole mount lets you quickly switch between scanning directions to match your fishing technique, while the transducer cable stays flexible in freezing conditions for reliable performance all season long.
Navigate more lakes with confidence thanks to preloaded Navionics+ mapping covering 25,000+ inland and coastal lakes. You can also create custom pages that blend sonar and maps on a single display, giving you a complete view of underwater structure and your surroundings.
Key features
-
10" full HD IPS touchscreen with 1920 x 1200 resolution for crisp maps and sonar
-
HDMI output to share sonar on TV/external display (cable not included)
-
LiveScope Forward and Down modes for real-time underwater scanning
-
LVS34-IF transducer with a flexible cable designed for freezing conditions
-
GLS 10 black box sonar for dependable sonar processing
-
Navionics+ mapping with coverage for 25,000+ inland and coastal lakes
-
0-degree pole mount for quick LiveScope mode changes
-
Integrated sonar suite including traditional CHIRP, ClearVü, SideVü, and Panoptix options
-
Powerful data management with 5000 waypoints, 50,000 track points, 50 saved tracks, and 100 routes
-
Connectivity – NMEA 2000, Garmin Marine Network, Bluetooth, and Garmin Wi-Fi
-
Rugged and waterproof with IPX7 rating for tough ice fishing environments
-
Power and compatibility – 1 kW traditional sonar output; operates on 10–32 Vdc
With the GPSMAP 8610xsv, you’ll have a comprehensive toolset for ice fishing and open-water adventures alike. It’s the all-in-one solution to find the bite, navigate confidently, and share the moment with confidence.
| General |
| TOUCHSCREEN |
Yes |
| INPUT |
Touchscreen |
| DISPLAY SIZE |
8.6" x 5.4"; 10.1" diagonal (21.8 cm x 13.7 cm; 25.7 cm diagonal) |
| DISPLAY RESOLUTION |
1920 x 1200 pixels |
| DISPLAY TYPE |
WUXGA, IPS |
| WEIGHT |
15.4 lbs (7.0 kg) |
| WATERPROOF |
IPX7 |
| Maps & Memory |
| ACCEPTS DATA CARDS |
2 microSD™ cards |
| WAYPOINTS |
5000 |
| TRACK POINTS |
50,000 |
| TRACKS |
50 saved tracks |
| NAVIGATION ROUTES |
100 |
| Ice Fishing Details |
| BAG SIZE |
None |
| INCLUDED TRANSDUCER |
LiveScope™ Plus System with LVS34-IF |
| TRANSDUCER HOLDING FEATURE |
Pole mount |
| Sensors |
| HAS BUILT-IN RECEIVER |
Yes |
| RECEIVER |
10 Hz |
| NMEA 2000 COMPATIBLE |
Yes |
| GPS |
Yes |
| GLONASS |
Yes |
| GALILEO |
Yes |
| SUPPORTS WAAS |
Yes |
| Sonar Features & Specifications |
| DISPLAYS SONAR |
Yes |
| POWER OUTPUT |
1 kW |
| TRADITIONAL SONAR (DUAL FREQUENCY/BEAM) |
built-in (dual channel CHIRP, 70/83/200 kHz, L, M, H CHIRP) |
| CLEARVU |
built-in 260/455/800/1000/1200 kHz |
| SIDEVU |
built-in 260/455/800/1000/1200 kHz |
| PANOPTIX™ SONAR |
Yes |
| LIVESCOPE |
Yes |
| Connections |
| NMEA 2000® PORTS |
1 |
| VIDEO INPUT PORTS |
1 (BNC composite); 1 HDMI (HDCP compliant) |
| VIDEO OUTPUT PORTS |
1 HDMI |
| GARMIN MARINE NETWORK PORTS |
2 |
| 8-PIN TRANSDUCER PORTS |
Yes |
| 12-PIN TRANSDUCER PORTS |
Yes |
| BLUETOOTH® PAIRING |
Yes |
| ANT+ (CONNECTIVITY) |
Yes |
| GARMIN WI-FI NETWORK (LOCAL CONNECTION) |
Yes |
| Input Voltage |
10 to 32 Vdc |
| Dimensions |
10.25" x 8.0625" x 2.95" (25.9 cm x 20.5 cm x 7.5 cm) |
