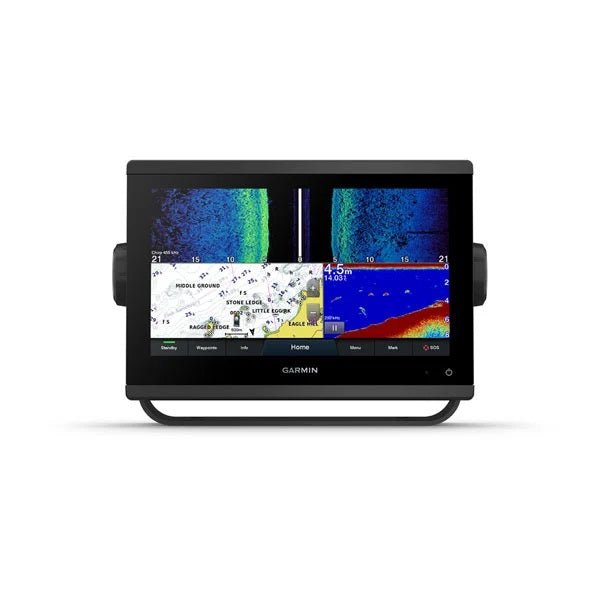

Introducing the Garmin GPSMAP 923xsv 9in Combo — a high-performance chartplotter and sonar system that brings SideVü, ClearVü, and Traditional CHIRP sonar into one compact, feature-rich package. With a Worldwide Basemap and seamless Garmin connectivity, this device is built to elevate every voyage.
-
Ultra-sharp sonar versatility: built-in Ultra High-Definition SideVü and ClearVü scanning sonar with vivid, high-contrast color palettes to help distinguish fish from structure, plus 1 kW CHIRP traditional sonar for clear depth and target detail.
-
Vivid, responsive display: 9-inch IPS touchscreen with edge-to-edge glass, delivering 50% more touchscreen pixels and nearly double the processing power of previous-generation 9" GPSMAP devices for crisper charts and faster updates.
-
Real-time viewing options: pair with Panoptix or Panoptix LiveScope (transducer sold separately) to see around your boat in real time for an all-around situational view.
-
Smart navigation and maps: built-in Worldwide Basemap with compatibility for premium maps and charts, Auto Guidance technology, and Navionics data support for the best in Garmin navigation.
-
Connected marine ecosystem: built-in Wi‑Fi connects to the free Garmin app for OneChart, smart notifications, software updates, Garmin Helm digital switching, Quickdraw Community data, and more. Share maps, radar, and video across multiple Garmin devices.
-
Marine system integration: connect to compatible autopilots, digital switching, weather, Fusion-Link audio, VHF, AIS, and more from a single screen; exclusive OneHelm digital switching expands control to select engines (including Yamaha).
-
Optional radar and gear: compatible with the compact 4 kW GMR 18 HD+ dome radar (sold separately) and a suite of compatible Garmin accessories for a complete marine network.
Slimline design with edge-to-edge glass makes installation flexible for a wider range of dash configurations, while the 9" display delivers improved sunlight readability from any angle. The GPSMAP 923xsv is IPX7-rated for durability, with power usage up to 22 W max at 10 Vdc and typical current draw around 1.3 A at 12 Vdc, ensuring reliable performance on the water.
Specifications
-
Physical dimensions: 9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm)
-
Display size: 7.8" x 4.4"; 9.0" diagonal
-
Display type/resolution: WXGA, 1280 x 720
-
Weight: 3.6 lbs (1.6 kg)
-
Water rating: IPX7
-
Power: Max 22 W; typical 1.3 A @ 12 Vdc
| General |
| PHYSICAL DIMENSIONS |
9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) |
| DISPLAY SIZE |
7.8" x 4.4"; 9.0" diagonal |
| DISPLAY RESOLUTION |
1280 x 720 pixels |
| DISPLAY TYPE |
WXGA display |
| WEIGHT |
3.6 lbs (1.6 kg) |
| WATER RATING |
IPX7 |
| POLARIZED SUPPORT |
Yes |
| POWER CONSUMPTION |
Max power usage at 10 Vdc: 22 W
Typical current draw at 12 Vdc: 1.3 A
Max current draw at 12 Vdc: 1.8 A |
| ANTENNA |
Internal or external over NMEA 2000 |
| MOUNTING OPTIONS |
Bail, flush or flat |
| RECEIVER |
10 Hz high-sensitivity |
| GARMIN MARINE NETWORK™ PORTS |
1 |
| TRANSMIT POWER |
1 kW traditional; 1 kW CHIRP |
| Maps & Memory |
| PRELOADED MAPS |
worldwide basemap |
| ACCEPTS DATA CARDS |
2 microSD™ cards (back of unit) |
| WAYPOINTS |
5,000 |
| TRACK LOG |
50,000 points; 50 saved tracks |
| ROUTES |
100 |
| Outdoor Recreation |
| TIDE TABLES |
Yes |
| Chartplotter Features |
| GARMIN RADAR COMPATIBLE |
Yes |
| GARMIN SONAR COMPATIBLE |
Yes (built-in) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) |
Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) |
Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) |
Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS |
Yes |
| GSD™ BLACK BOX SONAR SUPPORT |
Yes |
| GCV™ BLACK BOX SONAR SUPPORT |
Yes |
| ACTIVECAPTAIN COMPATIBLE |
Yes |
| GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE |
Yes |
| WIRELESS REMOTE COMPATIBLE |
Yes |
| SAILING FEATURES |
Yes |
| Sonar Features & Specifications |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE |
Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE |
Yes |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü (260/455/800 kHz)
(dependent on transducer) |
| CHIRP SONAR TECHNOLOGY |
Yes (Built-in) |
| CLEARVü |
Yes with CHIRP (built-in) |
| SIDEVü |
Yes with CHIRP (built-in) |
| MAXIMUM DEPTH |
5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
Yes |
| WATER TEMPERATURE LOG AND GRAPH |
Yes |
| SONAR RECORDING |
Yes |
| SONAR HISTORY REWIND |
Yes |
| Connections |
| NMEA 2000® COMPATIBLE |
Yes |
| TRANSDUCER PIN NUMBERS |
12-pin (orange) |
| NMEA 0183 INPUT PORTS |
1 (Differential) |
| NMEA 0183 OUTPUT PORTS |
1 (Differential) |
| VIDEO INPUT PORTS |
1 BNC |
| WIRELESS CONNECTIVITY |
Yes |
| J1939 COMPATIBLE |
Yes |
