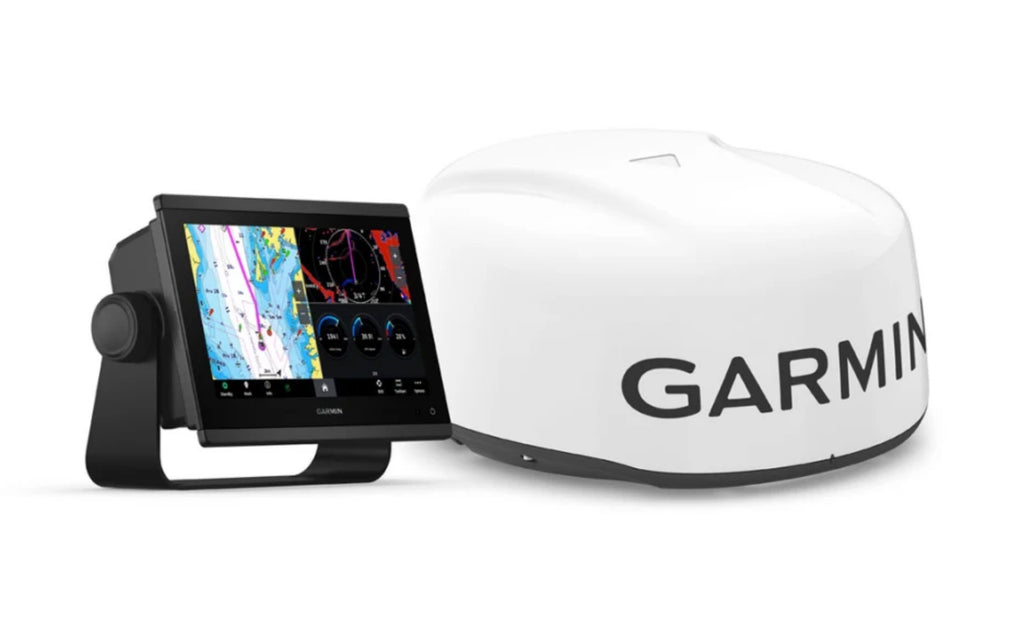

Introducing the Garmin GPSMAP 923xsv HD3 Radar Pack — a powerful 9-inch chartplotter, HD radar, and advanced sonar system designed to elevate every voyage. With built-in Ultra High-Definition SideVü and ClearVü sonar, traditional CHIRP sonar, a worldwide basemap, and the GMR18 HD3 radar dome, this pack delivers unmatched situational awareness and navigation accuracy on the water.
Why you’ll love it
-
Ulta HD sonar suite: Built-in SideVü and ClearVü scanning sonar with vivid, high-contrast colors to distinguish fish and structure, plus 1 kW CHIRP traditional sonar for detailed bottom and target separation.
-
Radar integration: GMR18 HD3 radar dome for reliable, long-range detection and anti-clutter performance to keep your eyes on the horizon in any conditions.
-
Big screen, sharp detail: 9" IPS display with 1280 x 720 resolution, edge-to-edge glass, and improved sunlight readability from any angle. Enjoy 50% more touchscreen pixels and nearly double the processing power versus older 9" models.
-
World-wide navigation: Built-in worldwide basemap with compatibility for premium Garmin and Navionics charts, Auto Guidance technology, and more for confident route planning.
-
Live viewing and compatibility: Pair with Panoptix or Panoptix LiveScope live sonar (transducer sold separately) to see around your boat in real time.
-
Slim, retrofit-friendly design: New slimline chassis with a smaller footprint, making it easier to retrofit in a wider range of dash configurations.
-
Extensive connectivity: Built-in Wi‑Fi connects to the all-in-one Garmin app for OneChart, smart notifications, software updates, Quickdraw Community data, and more. Share maps, radar, and video across multiple Garmin devices on your boat.
-
OneHelm digital switching: Exclusive feature brings together operations of select third-party devices, such as EmpirBus digital switching, on one screen for streamlined control of multiple systems.
-
Extends beyond navigation: Connect with autopilots, weather, VHF, AIS, Fusion-Link audio, GNX Wind instruments, quatix watches, gWind transducers, and more from a single interface.
-
Engine integration: Ready to connect with select Yamaha engines and other compatible systems for integrated engine data and control.
What’s inside the system
-
9.2" x 6.4" x 3" footprint with a 9.0" diagonal 7.8" x 4.4" display area
-
Display WXGA 1280 x 720, high-contrast IPS for clear readability
-
Durability IPX7 water rating for peace of mind in wet environments
-
Power and connectivity Efficient power usage (typical ~1.3 A at 12 Vdc; max ~1.8 A), supports NMEA 2000 networks
-
Mounting Bail, flush, or flat mounting options to fit your helm layout
-
Receiver 10 Hz high-sensitivity GPS receiver for smooth, accurate positioning
Take command of your marine experience with the GPSMAP 923xsv HD3 Radar Pack — a complete, expandable solution that blends precision navigation, high-definition sonar, real-time situational awareness, and smart, networked control. Whether you’re exploring new coastlines, fishing new grounds, or cruising familiar waters, this system helps you navigate, plan, and execute with confidence.
| General |
| PHYSICAL DIMENSIONS |
9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) |
| DISPLAY SIZE |
7.8" x 4.4"; 9.0" diagonal |
| DISPLAY RESOLUTION |
1280 x 720 pixels |
| DISPLAY TYPE |
WXGA display |
| WEIGHT |
3.6 lbs (1.6 kg) |
| WATER RATING |
IPX7 |
| POLARIZED SUPPORT |
Yes |
| POWER CONSUMPTION |
Max power usage at 10 Vdc: 22 W
Typical current draw at 12 Vdc: 1.3 A
Max current draw at 12 Vdc: 1.8 A |
| ANTENNA |
Internal or external over NMEA 2000 |
| MOUNTING OPTIONS |
Bail, flush or flat |
| RECEIVER |
10 Hz high-sensitivity |
| GARMIN MARINE NETWORK™ PORTS |
1 |
| TRANSMIT POWER |
1 kW traditional; 1 kW CHIRP |
| Maps & Memory |
| PRELOADED MAPS |
worldwide basemap |
| ACCEPTS DATA CARDS |
2 microSD™ cards (back of unit) |
| WAYPOINTS |
5,000 |
| TRACK LOG |
50,000 points; 50 saved tracks |
| ROUTES |
100 |
| Outdoor Recreation |
| TIDE TABLES |
Yes |
| Chartplotter Features |
| GARMIN RADAR COMPATIBLE |
Yes |
| GARMIN SONAR COMPATIBLE |
Yes (built-in) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) |
Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) |
Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) |
Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS |
Yes |
| GSD™ BLACK BOX SONAR SUPPORT |
Yes |
| GCV™ BLACK BOX SONAR SUPPORT |
Yes |
| ACTIVECAPTAIN COMPATIBLE |
Yes |
| GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE |
Yes |
| WIRELESS REMOTE COMPATIBLE |
Yes |
| SAILING FEATURES |
Yes |
| Sonar Features & Specifications |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE |
Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE |
Yes |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü (260/455/800 kHz)
(dependent on transducer) |
| CHIRP SONAR TECHNOLOGY |
Yes (Built-in) |
| CLEARVü |
Yes with CHIRP (built-in) |
| SIDEVü |
Yes with CHIRP (built-in) |
| MAXIMUM DEPTH |
5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
Yes |
| WATER TEMPERATURE LOG AND GRAPH |
Yes |
| SONAR RECORDING |
Yes |
| SONAR HISTORY REWIND |
Yes |
| Connections |
| NMEA 2000® COMPATIBLE |
Yes |
| TRANSDUCER PIN NUMBERS |
12-pin (orange) |
| NMEA 0183 INPUT PORTS |
1 (Differential) |
| NMEA 0183 OUTPUT PORTS |
1 (Differential) |
| VIDEO INPUT PORTS |
1 BNC |
| WIRELESS CONNECTIVITY |
Yes |
| J1939 COMPATIBLE |
Yes |
