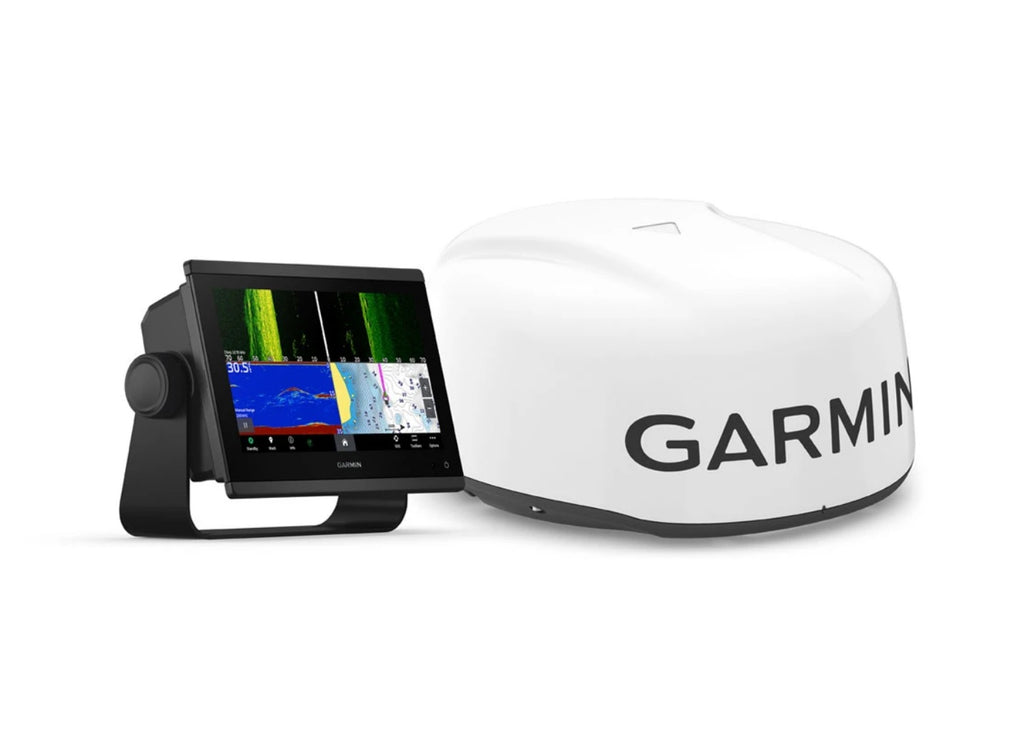

Meet the Garmin GPSMAP 943XSV HD3 Radar Pack with US and Canada GN+. This all‑in‑one 9" chartplotter, sonar, and radar bundle is designed for serious anglers and seasoned skippers who demand precise navigation, sharp imaging, and integrated situational awareness in one compact display.
-
All‑in‑one display: 9" chartplotter, sonar and radar combined in a single compact unit for a streamlined dash setup.
-
Stunning display: Slimline 9" IPS display with edge‑to‑edge glass, 1280 x 720 resolution, enhanced sunlight readability, and rugged IPX7 enclosure.
-
Advanced sonar imaging: SideVü and ClearVü high‑definition scanning sonar for vivid views of fish and structure; traditional CHIRP for deeper target separation; built‑in 1 kW CHIRP sonar support.
-
Real‑time viewing options: Panoptix LiveScope compatibility for real‑time, around‑the‑boat viewing (transducer sold separately).
-
Radar integration: GMR 18 HD3 4 kW radar dome bundled option for enhanced situational awareness and weather monitoring.
-
Maps & memory: Preloaded Navionics+ maps with worldwide coverage; accepts 2 microSD cards; 5,000 waypoints, 50,000 track points, and 100 routes.
-
Connectivity & networking: Built‑in Wi‑Fi for OneChart, software updates, and smart notifications; data sharing across Garmin devices; integrates with Garmin Helm digital switching and OneHelm; compatible with autopilots, VHF, AIS, Fusion‑Link; engine data integration with select Yamaha engines.
-
Garmin Marine Network: 1 Garmin Marine Network port; 10 Hz high‑sensitivity receiver for precise position updates.
-
Power & efficiency: 1 kW transmit power (traditional) and 1 kW CHIRP; power usage up to 22 W at 10 Vdc; typical 1.3 A and max 1.8 A at 12 Vdc.
-
Mounting & compatibility: Bail, flush, or flat mounting options; internal or NMEA 2000 external antenna compatibility.
This GPSMAP 943XSV HD3 Radar Pack delivers confident, coast‑to‑coast navigation with reliable mapping, precise sonar, and integrated radar. Its future‑ready design supports app‑based updates, cross‑device data sharing, and scalable upgrades as your onboard tech evolves—making it a solid choice for both anglers and sailors who value clarity, connectivity, and control on the water.
| General |
| PHYSICAL DIMENSIONS |
9.2" x 6.4" x 3" (23.3 x 16.2 x 7.6 cm) |
| DISPLAY SIZE |
7.8" x 4.4"; 9.0" diagonal |
| DISPLAY RESOLUTION |
1280 x 720 pixels |
| DISPLAY TYPE |
WXGA display |
| WEIGHT |
3.6 lbs (1.6 kg) |
| WATER RATING |
IPX7 |
| POLARIZED SUPPORT |
Yes |
| POWER CONSUMPTION |
Max power usage at 10 Vdc: 22 W
Typical current draw at 12 Vdc: 1.3 A
Max current draw at 12 Vdc: 1.8 A |
| ANTENNA |
Internal or external over NMEA 2000 |
| MOUNTING OPTIONS |
Bail, flush or flat |
| RECEIVER |
10 Hz high-sensitivity |
| GARMIN MARINE NETWORK™ PORTS |
1 |
| TRANSMIT POWER |
1 kW traditional; 1 kW CHIRP |
| Maps & Memory |
| PRELOADED MAPS |
Garmin Navionics+™ |
| ACCEPTS DATA CARDS |
2 microSD™ cards (back of unit) |
| WAYPOINTS |
5,000 |
| TRACK LOG |
50,000 points; 50 saved tracks |
| ROUTES |
100 |
| Outdoor Recreation |
| TIDE TABLES |
Yes |
| Chartplotter Features |
| GARMIN RADAR COMPATIBLE |
Yes |
| GARMIN SONAR COMPATIBLE |
Yes (built-in) |
| GARMIN SMARTMODE COMPATIBLE (CUSTOMIZABLE MONITOR PRESETS) |
Yes |
| SUPPORTS AIS (TRACKS TARGET SHIPS POSITION) |
Yes |
| SUPPORTS DSC (DISPLAYS POSITION DATA FROM DSC-CAPABLE VHF RADIO) |
Yes |
| SUPPORTS FUSION-LINK™ COMPATIBLE RADIOS |
Yes |
| GSD™ BLACK BOX SONAR SUPPORT |
Yes |
| GCV™ BLACK BOX SONAR SUPPORT |
Yes |
| ACTIVECAPTAIN COMPATIBLE |
Yes |
| GRID™ (GARMIN REMOTE INPUT DEVICE) COMPATIBLE |
Yes |
| WIRELESS REMOTE COMPATIBLE |
Yes |
| SAILING FEATURES |
Yes |
| Sonar Features & Specifications |
| DUAL-FREQUENCY (50/200 KHZ) SONAR CAPABLE |
Yes |
| DUAL-BEAM (77/200 KHZ) SONAR CAPABLE |
Yes |
| FREQUENCIES SUPPORTED |
Traditional: 50/77/83/200 kHz
CHIRP (low, medium, high)
ClearVü (260/455/800 kHz)
(dependent on transducer) |
| CHIRP SONAR TECHNOLOGY |
Yes (Built-in) |
| CLEARVü |
Yes with CHIRP (built-in) |
| SIDEVü |
Yes with CHIRP (built-in) |
| MAXIMUM DEPTH |
5,000 ft at 1kW (depth capacity is dependent on water bottom type and other water conditions) |
| BOTTOM LOCK (SHOWS RETURN FROM THE BOTTOM UP) |
Yes |
| WATER TEMPERATURE LOG AND GRAPH |
Yes |
| SONAR RECORDING |
Yes |
| SONAR HISTORY REWIND |
Yes |
| Connections |
| NMEA 2000® COMPATIBLE |
Yes |
| TRANSDUCER PIN NUMBERS |
12-pin (orange) |
| NMEA 0183 INPUT PORTS |
1 (Differential) |
| NMEA 0183 OUTPUT PORTS |
1 (Differential) |
| VIDEO INPUT PORTS |
1 BNC |
| WIRELESS CONNECTIVITY |
Yes |
| J1939 COMPATIBLE |
Yes |
