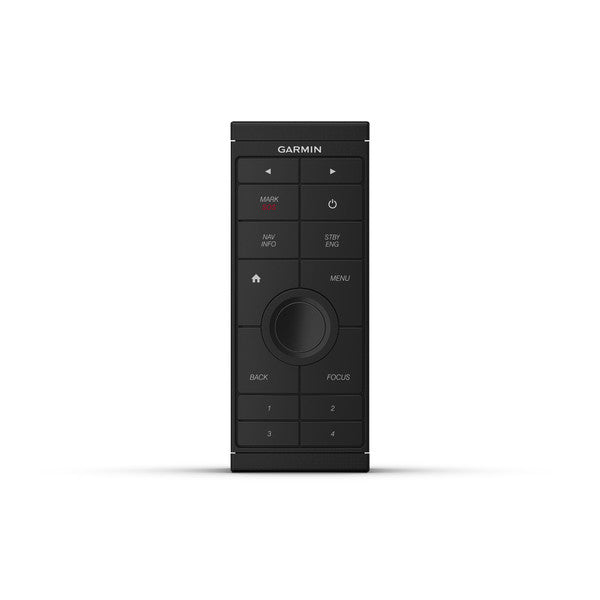

Garmin GRID 20 Vertical Controller delivers full helm control in a compact, rugged remote designed for Garmin marine systems. It keeps fast, precise navigation and tuning within reach from anywhere at the helm.
-
360-degree joystick with rotary knob and push-to-select button: Smooth, precise menu navigation and fine control of your Garmin system, even in challenging conditions.
-
Four customizable favourite keys: Instantly recall a saved configuration to simplify complex operations at the touch of a button.
-
Dedicated SOS key: Quick access to emergency functions when it matters most.
-
Hard keys for essential actions: Fast access to actions like left/right screen switches and autopilot standby/engage.
-
Wired or wireless installation with vertical or horizontal orientation: Plug-and-play fit on any helm with flexible mounting options.
-
Compact, durable design: Gasketed, high-impact plastic body with IPX7 rating built to withstand harsh marine environments.
-
Power and electrical: NMEA 2000 wired power (with included power cable); Input power 9–32 V DC; Fuse 1.0 Amp (Fast Blow); Typical current draw 40 mA at 12 V DC; Maximum current draw 120 mA at 12 V DC; Maximum power usage 1.5 W at 9 V DC.
-
Physical specifications: Weight 179 g; Dimensions 14.1 x 5.6 x 6.8 cm; Temperature range −15°C to 70°C; Compass-safe distance 114 mm.
-
Material: Fully gasketed, high-impact plastic
-
Water rating: IPX7
-
What's in the box: GRID 20 Controller; Mounting hardware; Power cable; Documentation
With GRID 20, you gain hands-on control without helm clutter. The 360-degree joystick and push-to-select button enable smooth navigation and precise adjustments, even in demanding conditions. The four customizable keys let you recall saved configurations instantly, while the SOS key provides swift access to emergency functions. Hard keys offer quick access to essential actions like screen switching and autopilot control. Its compact, gasketed design and IPX7 rating stand up to salt spray and rough seas, and flexible mounting supports vertical or horizontal orientation for a plug-and-play fit at any helm. Designed to operate on NMEA 2000 networks with a 9–32 V DC power supply and low power draw, GRID 20 keeps critical controls within reach for safer, more confident voyages.
| Weight |
179 g |
| Temperature range |
From -15° to 70°C |
| Material |
Fully gasketed, high-impact plastic |
| Water rating |
IPX7 |
| Compass-safe distance |
114 Mm |
| Power input |
NMEA 2000 |
| Wired power (with included power cable) |
| Input power |
9-32 V DC |
| Fuse |
1.0 Amp, Fast Blow |
| Maximum power usage at 9 V DC |
1.5 W |
| Typical current draw at 12 V DC |
40 mA |
| Maximum current draw at 12 V DC |
120 mA |
| Dimensions |
14.1 x 5.6 x 6.8 cm |
