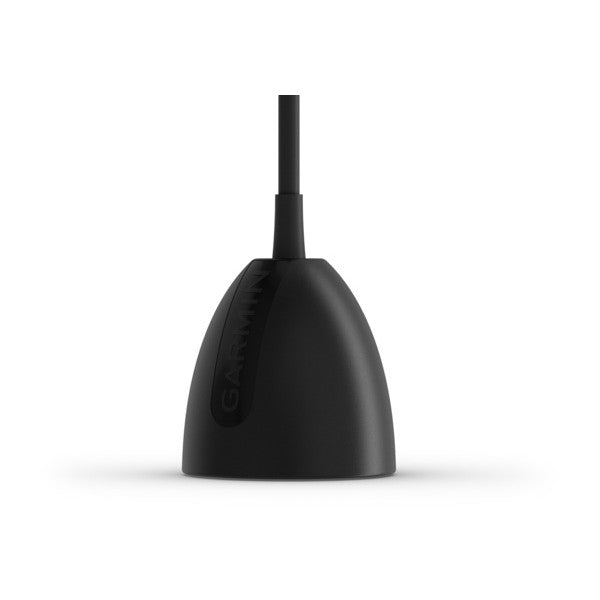

Experience ultra-clear under-ice sonar with the Garmin GT10HN-IF Ice Transducer, engineered for precise target separation and reliable jig detection. This high-narrow CHIRP transducer concentrates energy with a 7-16 degree beam angle, delivering sharp fish returns and easy jig reads where it matters most.
Designed specifically for ice fishing, the GT10HN-IF uses CHIRP High Narrow (130-300 kHz) to provide crisp, distinct returns in cluttered under-ice conditions. With a powerful 500 W rating and a maximum freshwater depth of 800 ft, you’ll gain confidence when probing deep and spotting targets with clarity.
Durability and winter performance are built in: a silicone-coated cable stays flexible in harsh cold, reducing wear and easing setup. The package includes everything you need for quick installation and reliable operation in the ice season, including an 8-pin to 4-pin transducer adapter cable, a foam float, a grommet, and the essential documentation.
-
Beam angle: 7–16 degrees for precise under-ice imaging
-
Frequency: CHIRP High Narrow (130–300 kHz)
-
Power: 500 W
-
Depth rating: Up to 800 ft (freshwater)
-
Connector: 8-pin
-
Cable: Silicone-coated, flexible for winter conditions, 8 ft long
-
Includes: 8-pin to 4-pin adapter cable, foam float, grommet, and documentation
-
Designed for: Optimized shape and beam widths specifically for ice fishing
| Frequency |
CHIRP High Narrow (130-300 kHz) |
| Power |
500 W |
| Beam angle |
16-7 |
| Maximum depth |
800 ft. freshwater |
| Number of pins |
8-pin |
| Cable length |
8 ft. |
