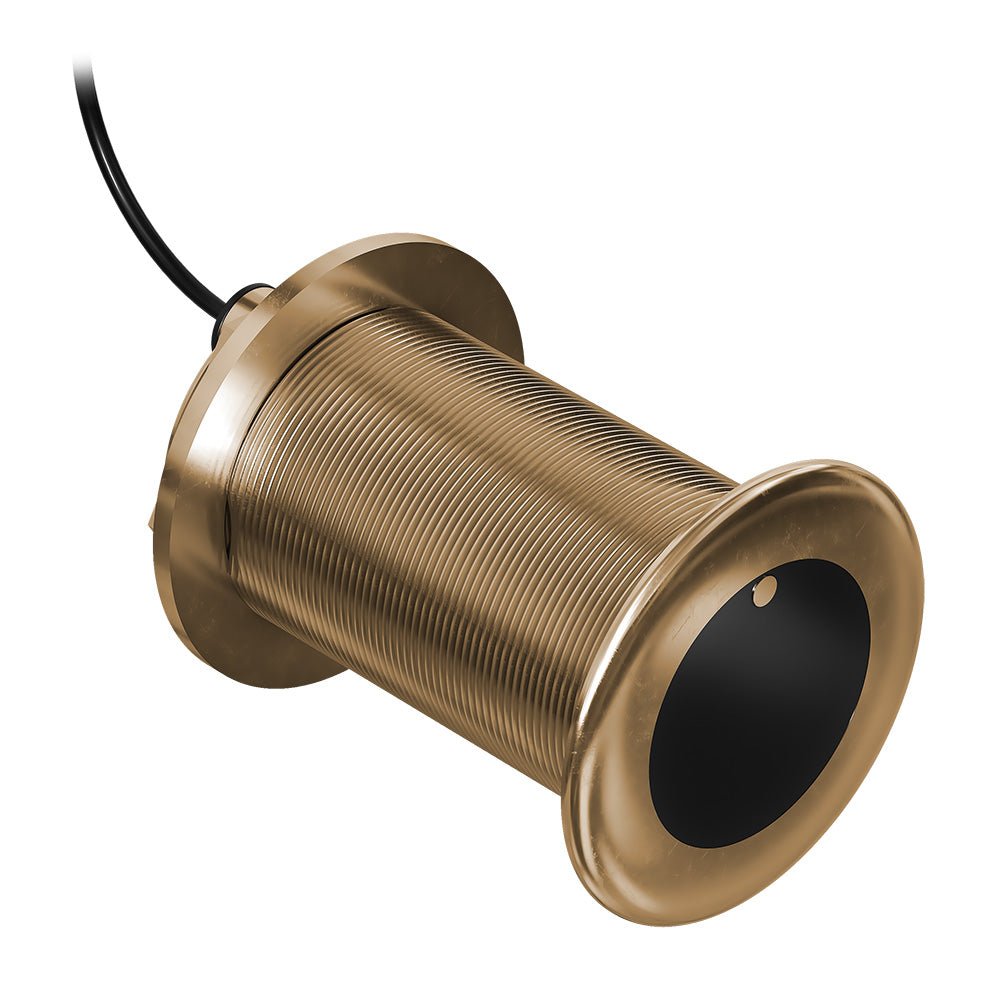

Designed for midsize fishing and cruising boats, the Garmin GT12M Bronze Thru-Hull is a flush-mounted, 350-watt mid-band CHIRP transducer that clearly defines fish arches, structure, and bottom depth on your display.
-
Transducer Type and Power: 8-pin, 350 W bronze thru-hull transducer delivering high-definition mid-band CHIRP sonar.
-
Mid-band CHIRP Technology: Traditional CHIRP sonar for crisp targets and reliable bottom readings.
-
Frequency Range: Broad 85–165 kHz medium frequency range for wide coverage and accurate depth readings.
-
Beamwidth: 24°–16° transducer beamwidth for flexible coverage and detail.
-
Maximum Depth: 800 ft saltwater / 1200 ft freshwater readings.
-

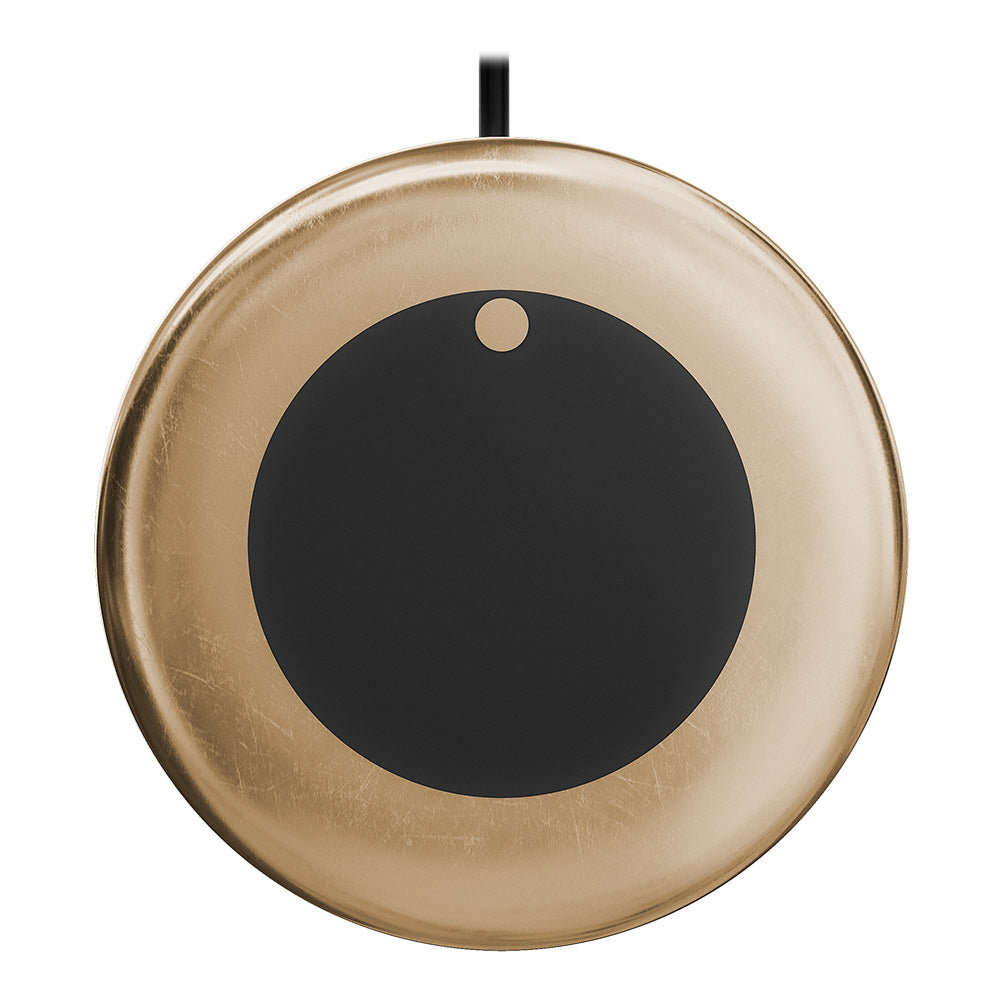

Through-Hull Installation: Durable bronze housing and stem enable flush mounting with minimum drag and ideal beam orientation.
-
Auto-ID Technology: Plug-and-play operation that automatically configures the sonar to the transducer.
-
Hull Compatibility: Configurable for fiberglass, composite, and wood hulls; tilt versions available to accommodate deadrise angles of 0–20° without a fairing block.
-
Cable Length: 50 ft cable for flexible installation.
-
Depth/Temperature: Depth and temperature readings supported by the transducer.
-
Deadrise/Transom Angles Supported: 0–20° (supports hull deadrise angles from 16° to 24° with appropriate setup).
-
In the Box: GT12M-THF transducer along with jam nut, washer, and documentation.
-
Part Number: 010-02867-02
This setup provides reliable depth information and clear target separation, helping you distinguish fish, structure, and bottom contours on screen. The flush bronze thru-hull design reduces drag, while Auto-ID technology makes installation straightforward. Compatible with fiberglass, composite, and wood hulls, and offering 0–20° deadrise support, it fits a wide range of midsize boats. Depth and temperature readings are supported up to 800 ft in saltwater and 1,200 ft in freshwater, broadening its utility for diverse conditions.
