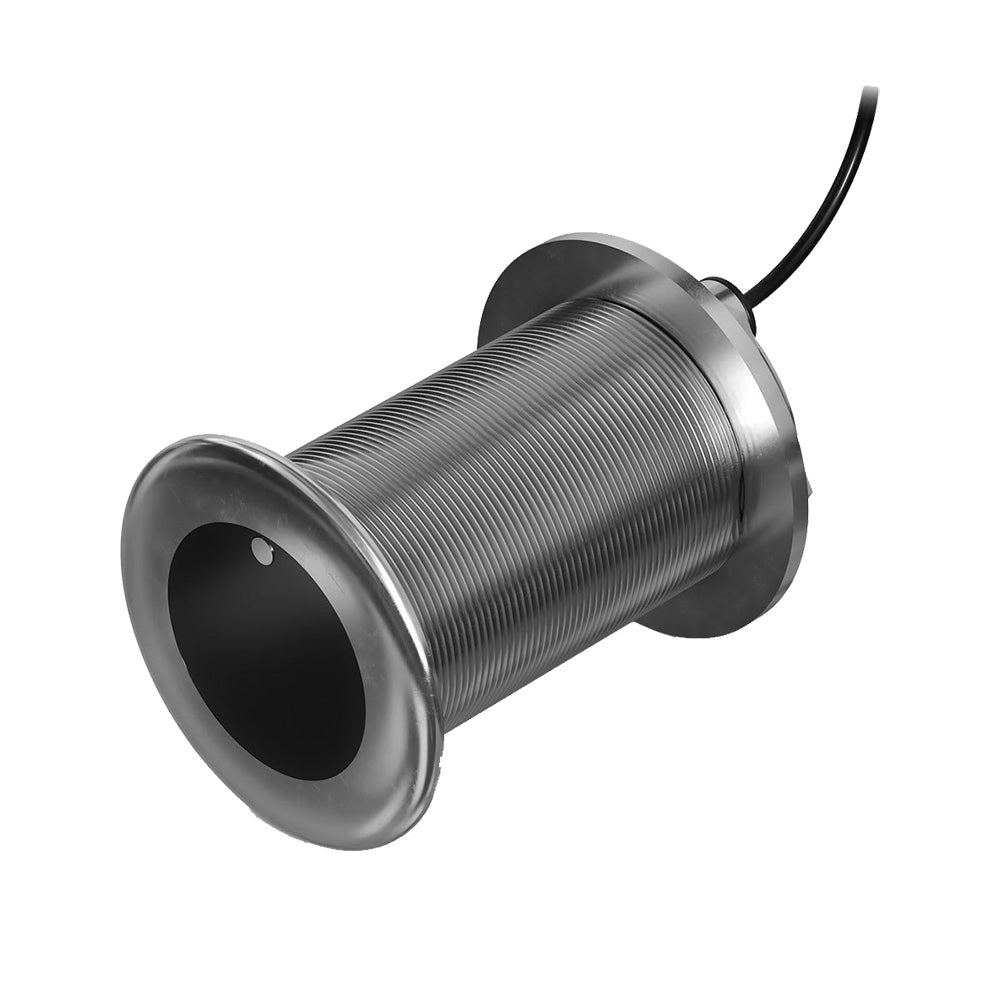

Engineered for reduced drag and optimum sonar performance on midsize fishing and cruising boats, the Garmin GT15M-THF 0 Degree 600W SS Thru-Hull Transducer is a flush-mounted powerhouse that delivers high-definition mid-band CHIRP sonar. It clearly defines fish arches, structure, and bottom depth on your display, helping you fish smarter and navigate confidently.
Key advantages
-
Mid-band CHIRP sonar delivers high-definition targets and structures with clear separation, down to 1,200 ft in saltwater and 1,900 ft in freshwater.
-
600 W power in a rugged stainless steel thru-hull housing for reliable performance in demanding conditions.
-
Frequency range 85–165 kHz provides a broad, yet precise coverage area, producing crisp fish arches and accurate depth readings.
-
Through-hull flush mounting minimizes drag while optimizing beam orientation for cleaner sonar returns.
-
Auto-ID technology enables plug-and-play operation by automatically configuring the sonar to the transducer.
-
Versatile hull compatibility configurable for fiberglass, composite, steel, aluminum, and wood hulls; available in tilt versions to accommodate deadrise angles from 0° up to 20° without a fairing block.
Specifications at a glance
-
Transducer Type: Thru-hull, 0°
-
Transducer Power: 600 W
-
Transducer Frequency: Medium band CHIRP (85–165 kHz)
-
Transducer Beam Width: 24°–16°
-
Maximum Depth: 1,200 ft (saltwater); 1,900 ft (freshwater)
-
Cable Length: 50 ft
-
Pins: 8-pin
-
Housing Material: Stainless steel
-
Deadrise/Transom Angles: 0°–20° (supports a range of hulls with tilt options)
-
In the Box: GT15M-THF transducer, jam nut, washer, thread isolator, hull isolator, documentation
