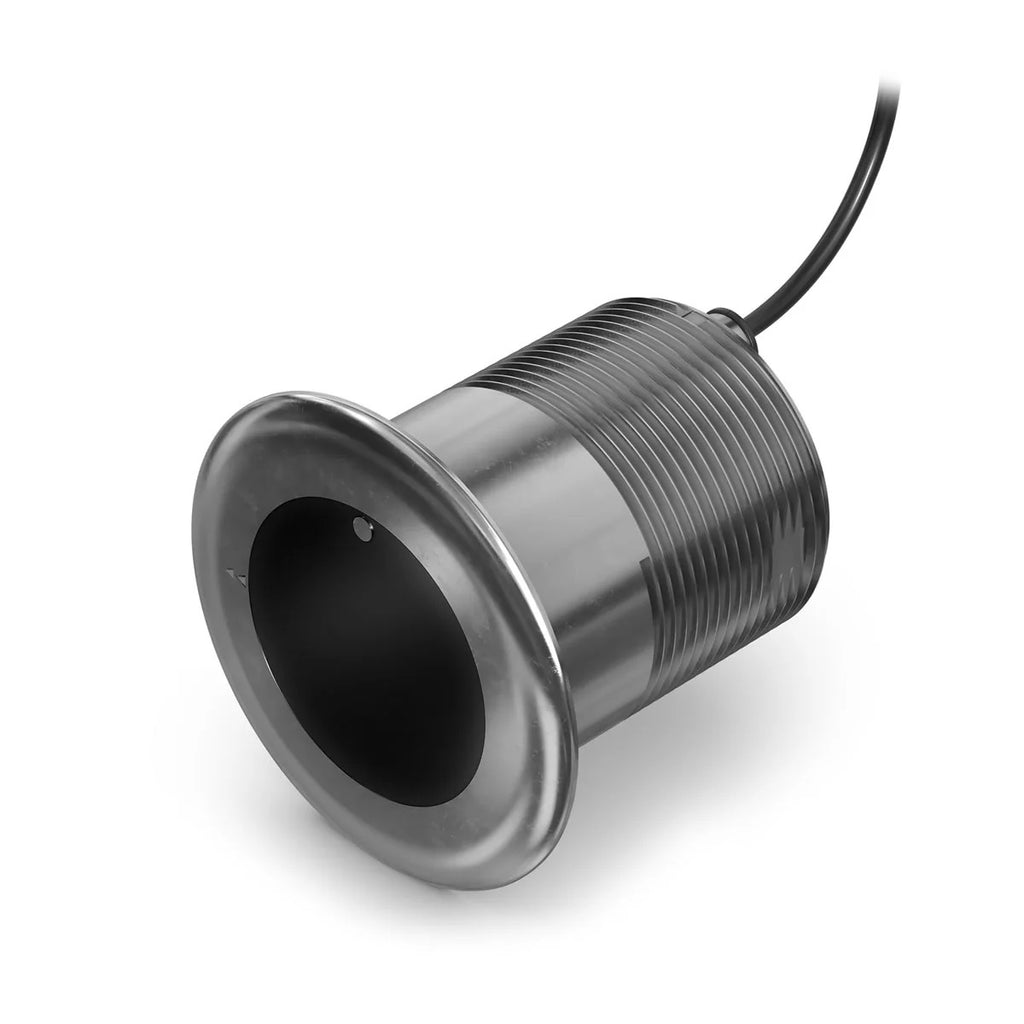

Upgrade your sonar capabilities with the Garmin GT17M-THF 1kW Medium CHIRP through-hull transducer. Crafted in durable stainless steel with a 20° tilted element, this flush-mounted transducer minimizes drag while delivering sharp, high-definition CHIRP returns for fishing and cruising boats. With 80–165 kHz midband CHIRP, you’ll see clear fish arches, structure, and bottom depth on your display, even in demanding conditions.
Enjoy effortless setup thanks to Garmin Auto-ID technology, which automatically configures the sonar to the transducer for simple plug-and-play operation. The robust 8-pin design and 50 ft transducer cable provide reliable connectivity, while the low-noise, high-resolution performance helps you distinguish targets with confidence.
Key features
-
Powerful 1 kW CHIRP transducer: midband CHIRP (80–165 kHz) for clear, detailed sonar images
-
20° tilt and stainless steel housing: optimized beam orientation with reduced drag for hull-mounted installations
-
Beamwidth 9°–18°: flexible coverage across frequencies for broad or focused search
-
Depth capability: up to 1800 ft in saltwater and 2400 ft in freshwater
-
RAPIDRETURN™ compatibility: fast, high-sensitivity returns for quick target detection
-
Auto-ID plug-and-play: automatic configuration for easy setup and operation
-
Depth/temperature sensing: integrated measurements delivered to your display
-
8-pin connection and 50 ft cable: durable, flexible installation
-
Hull compatibility: suited for hull deadrise angles from 16° to 24° with 20° tilt
-
Housing material: robust stainless steel for long-lasting performance
Specifications
- Model: 010-02930-02
- Transducer frequency: medium band CHIRP (80–165 kHz)
- Transducer power: 1 kW
- Transducer beamwidth: 9°–18°
- Maximum depth: 1800 ft saltwater; 2400 ft freshwater
- RapidReturn sonar compatibility: Yes
- Transducer cable length: 50 ft
- Transducer function: depth, temperature
- Transducer pins: 8-pin
- Supported deadrise/transom angles: 20° (16°–24° hull deadrise)
- Housing material: stainless steel
What’s in the box
- GT17M-THF transducer
- Jam nut
- Spacer
- 2 washers
- 2 set screws
- Thread isolator
- Hull isolator
- Documentation
| TRANSDUCER FREQUENCY |
medium band CHIRP (80-165 kHz) |
| TRANSDUCER POWER |
1 kW |
| TRANSDUCER BEAMWIDTH |
9°-18° |
| TRANSDUCER MAXIMUM DEPTH |
1800 ft saltwater; 2400 ft freshwater |
| RAPIDRETURN™ SONAR COMPATIBLE |
Yes |
| TRANSDUCER CABLE LENGTH |
50 ft |
| TRANSDUCER DEPTH/SPEED/TEMPERATURE |
depth, temperature |
| TRANSDUCER NUMBER OF PINS |
8-pin |
| TRANSDUCER SUPPORTED DEADRISE/TRANSOM ANGLES |
20° supports hull deadrise angles from 16° to 24° |
| HOUSING MATERIAL |
stainless steel |
