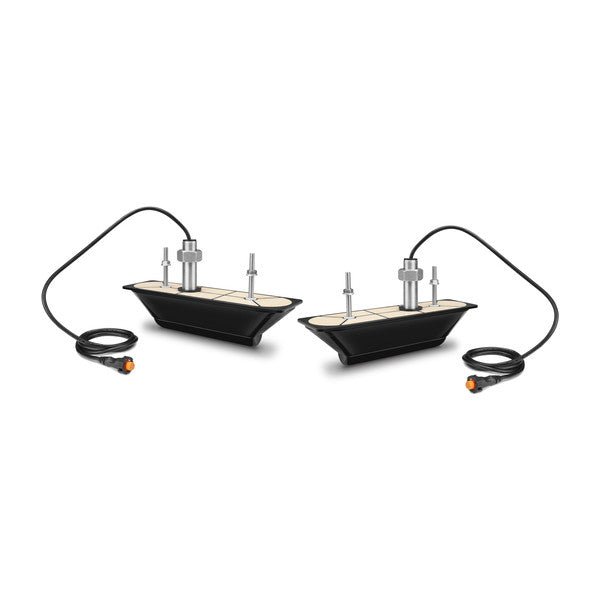

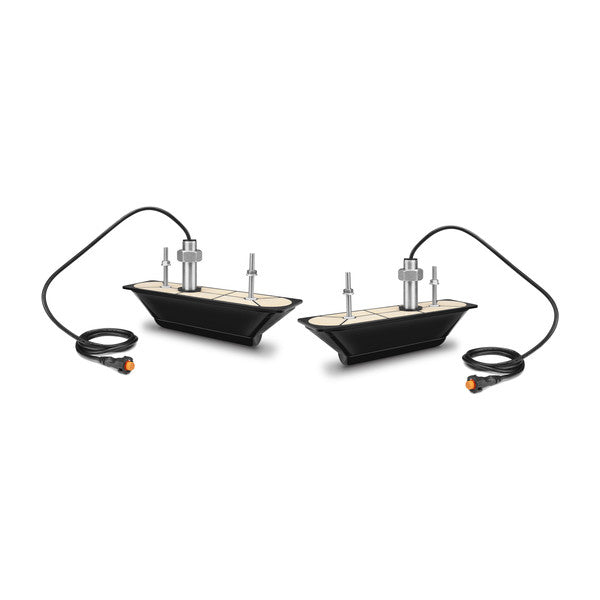

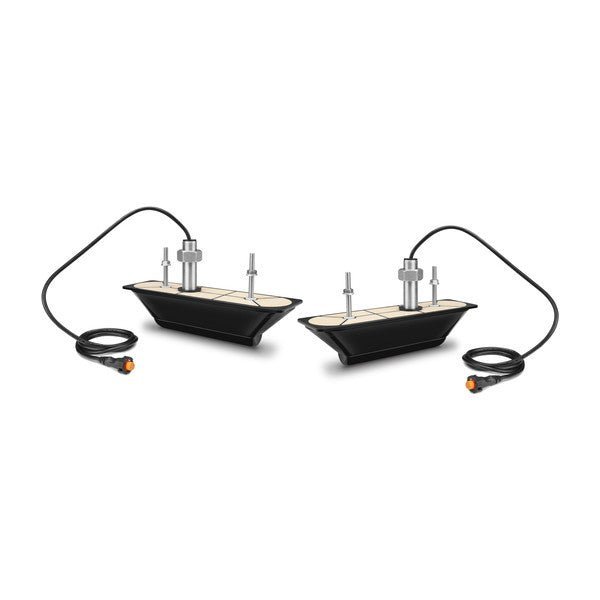

Garmin GT34UHD-THP Transducer Thru-Hull Pair (12-Pin) is a dual-channel through-hull sonar solution designed to deliver ultra-high-definition CHIRP imaging with both ClearVü and SideVü coverage. Built for boats with up to 25° deadrise, this 12-pin transducer comes with a 20 ft cable for flexible mounting and easy routing.
-
Ultra High-Definition ClearVü at 0.8 MHz (800 kHz) with CHIRP range 760–880 kHz
-
Ultra High-Definition SideVü at 1.2 MHz (1,200 kHz) with CHIRP range 1,060–1,170 kHz
-
Power 500 W of transmit power for strong, clear returns
-
Beamwidth ClearVü 0.74° x 46°; SideVü 0.44° x 55°
-
Depth capabilities ClearVü up to 200 ft; SideVü coverage up to 125 ft to each side (250 ft total) at shallower depths
-
Depth/Speed/Temperature sensing for onboard navigation data
-
Connector 12-pin
-
Cable length 20 ft
-
Deadrise compatibility Supports transom/deadrise angles up to 25°
Designed for anglers who demand precise bottom detail, reliable structure scanning, and expansive imaging, the GT34UHD-THP delivers crisp views of the water column, seabed, and surrounding structure. This thru-hull pair is engineered to provide stable, high-clarity data essential for deep-water navigation and fish locating.
| Frequency |
Ultra High-Definition ClearVü: 0.8 MHz (800 kHz), CHIRP range: 760-880 kHz Ultra High-Definition SideVü: 1.2 MHz (1,200 kHz), CHIRP range: 1,060-1,170 kHz |
| Power |
500 W |
| Beamwidth |
Ultra High-Defintion ClearVü: 0.74° x 46° Ultra High-Defintion SideVü: 0.44° x 55° |
| Maximum depth |
200' Ultra High-Definition ClearVü 125' to each side Ultra High-Definition SideVü, 250' total, at a maximum depth of 30' |
| Depth/Speed/Temperature |
Depth and Temperature |
| Number of pins |
12-pin |
| Cable length |
20 ft. |
| Supported deadrise/Transom angles |
Up to 25° deadrise |
