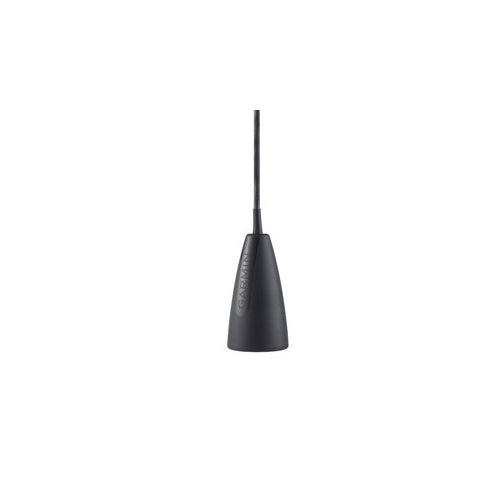

Engineered for ice fishing, the Garmin GT8HW-IF Ice Transducer delivers crystal-clear bottom definition beneath the ice, along with crisp, wide fish arches and exceptional target separation. Its ice-optimized design combines a broad 24-degree beam width with a focused 16-degree high-frequency beam to maximize coverage and detail where you need it most.
Key benefits
-
CHIRP traditional sonar operating in the 150–240 kHz range for detailed, interference-free detection under ice.
-
250 W transmit power provides strong, reliable readings down to 800 feet.
-
Beam widths of up to 24° (LF) and 16° (HF) yield excellent water-column coverage and superior target separation.
-
Ice-focused design with a silicone-coated cable that stays flexible and durable in harsh winter conditions.
-
4-pin connection ensures compatibility with Garmin sonar units that support ice transducers, with an 8 ft cable for flexible mounting.
-
Plastic construction balances durability with a lightweight design tailored for ice fishing setups.
Built for winter waters
The GT8HW-IF transducer is optimized to maintain performance in freezing environments, delivering dependable bottom readings and clear arches as you scan the ice. Its shape and beam configuration are purpose-built for ice fishing, helping you lock in fish and structure with confidence.
What's in the box
- GT8HW-IF transducer
- Float
- Documentation
Upgrade your ice fishing sonar with the Garmin GT8HW-IF Ice Transducer and enjoy broader coverage, sharper bottom detail, and precise target clarity—season after season.
| Frequency |
CHIRP 145-240 kHz |
| Transmit power |
250 W |
| Max Depth |
800 feet |
| Beam Width (°) LF/HF (-3dB): |
24/16 |
| Read water Temperature |
Yes |
| Connect |
4 pin |
| Cable Length |
8 feet |
