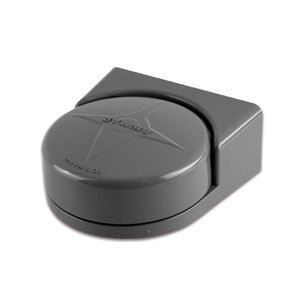

Garmin Heading Sensor is a 3-axis compass heading sensor designed for marine use with Garmin MFDs and radars. It delivers precise radar overlays and MARPA performance while remaining dependable in rough seas.
-
3-axis compass: Provides accurate heading data.
-
3-axis accelerometer: Improves heading, pitch, and roll in static conditions.
-
3-axis rate gyro: Enhances heading, pitch, and roll in dynamic conditions; maintains 2-degree dynamic accuracy up to 30° pitch/roll.
-
Static heading accuracy: Better than 1 degree.
-
Dynamic accuracy: 2-degree heading accuracy under heavy dynamic conditions up to 30° pitch and roll.
-
Temperature compensated: Across the entire operating range to ensure optimum accuracy for every voyage.
-
Flexible data output & compatibility: Heading output by default at 10 Hz for both NMEA 0183 and NMEA 2000; NMEA 2000 can be output up to 20 Hz; Supports either NMEA 0183 or NMEA 2000 data output to fit any installation.
-
Auto-calibration: Auto-calibration feature for effortless accuracy maintenance.
-
Rugged, marine-ready design: Built to withstand demanding conditions with IPX6 waterproof housing.
-
Easy installation: Mounts easily to any angled bulkhead.
-
Power: Operating voltage 9 VDC to 16 VDC.
-
Dimensions: 2" H x 4.4" L x 4.5" D (5.08 cm x 11.18 cm x 11.43 cm).
-
Cables sold separately: NMEA 0183 and NMEA 2000 cables sold separately.
With this sensor, you gain reliable, precise heading for radar overlays and MARPA calculations, even in heavy seas. The 3-axis accelerometer and rate gyro deliver accurate heading, pitch, and roll data in static and dynamic conditions, while temperature compensation ensures stable performance across the operating range. Data output compatibility means seamless integration with either NMEA 0183 or NMEA 2000 networks, at 10 Hz by default and up to 20 Hz on NMEA 2000 for more responsive displays. The auto-calibration feature minimizes drift over time, and the rugged IPX6 enclosure stands up to spray and rain. Compact dimensions and straightforward mounting on angled bulkheads make installation flexible for helm spaces.
