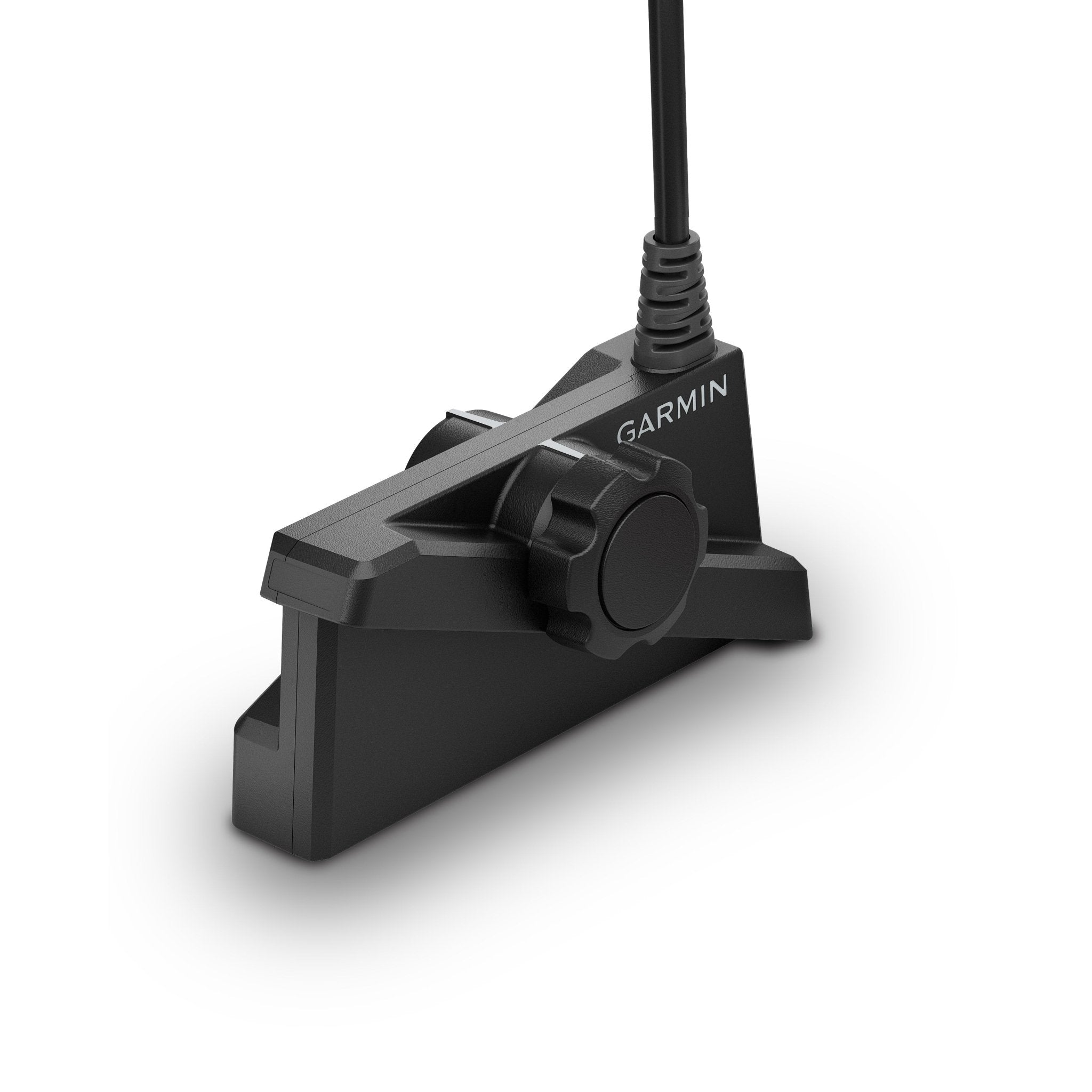

Garmin LVS34 Transducer Replacement for LiveScope Plus Transom/Trolling Motor Mount — Model 010-02706-10. This transducer upgrades your Panoptix LiveScope Plus system, delivering sharper screen clarity, improved transducer sensitivity, and enhanced target separation for real-time imaging. Scan your surroundings with crisper images, reduced noise, and fewer sonar artifacts. Upgrade your current LiveScope System black box (GLS™ 10 sonar module) with just the new transducer and unlock maximum performance. The latest in LiveScope technology, the LiveScope Plus System offers improved resolution, reduced noise, clearer images and better target separation.
Designed for both transom and trolling motor installations, the LVS34 supports Forward, Down and Perspective modes for comprehensive visibility in any scenario. This replacement kit includes all mounting options you need to deploy on your boat quickly and securely.
-
Real-Time Images — Real-time sonar ensures your live imagery is as accurate as possible.
-
CLEAR VISION — Reduced noise and fewer sonar artifacts let you see fish and structure with maximum clarity.
-
IMAGE STABILIZATION — Built-in stabilization keeps the sonar image steady in rough conditions.
-
VIVID COLOR PALETTES — Seven color options (including Aqua, Caribbean, Lava, and more) for maximum contrast and clarity.
-
Multiple Modes — Forward, Down and Perspective views for versatile scanning.
-
Mounting Flexibility — Includes Perspective mount and trolling motor barrel mounts for use on transom or trolling motor installations.
-
Upgrade Path — Easily upgrade your GLS 10 system with a single transducer replacement, without changing the entire unit.
Specifications
-
Dimensions: 6.4" x 3.1" x 1.9" (16.2 x 3.1 x 4.8 cm)
-
Weight: 2.25 lbs (1.02 kg)
-
Waterproof: Operating 0°C to 40°C
-
Frequency: 530 – 1,100 kHz
-
Max Depth (Down & Forward): 200' (61.0 m)
-
Connections: Garmin Marine Network port 1 (small connector)
-
Power: 10–32 V; 21 W typical, 58 W max; Transmit Power 500 W; Fuse 7.5 A
-
Compass-Safe Distance: 4" (0.1 m)
-
Minimum Depth: 3' (0.91 m)
-
Transducer Cable: 20 ft; 21-pin
What's in the Box
- Panoptix LVS34 Transducer
- Perspective Mount
- Trolling Motor Barrel Mount
- Documentation
| General |
| DIMENSION |
6.4" x 3.1" x 1.9" (16.2 x 3.1 x 4.8 cm) |
| WEIGHT |
2.25 lbs (1.02 kg) |
| WATERPROOF |
WATERPROOF |
| WATERPROOF |
Operating: 0 C to 40 C |
| Sonar Features & Specifications |
| FREQUENCY |
530 - 1,100 kHz |
| MAXDEPTH |
Down and Forward: 200’ (61.0 m) |
| Connections |
| CONNECTIONS GARMIN MARINE NETWORK PORTS |
1 (small connector) |
| Electrical Features |
| POWER INPUT |
10-32 V |
| POWER USAGE |
21 W typical, 58 W max |
| TRANSMIT POWER |
500 W |
| FUSE |
7.5 A |
| COMPASS-SAFE DISTANCE |
4" (0.1 m) |
| Additional |
| Minimum depth |
3' (0.91 m) |
| Sonar type |
Live |
| Beamwidth |
20° x 135° |
| Transducer cable length |
20 ft |
| Transducer number of pins |
21 |
