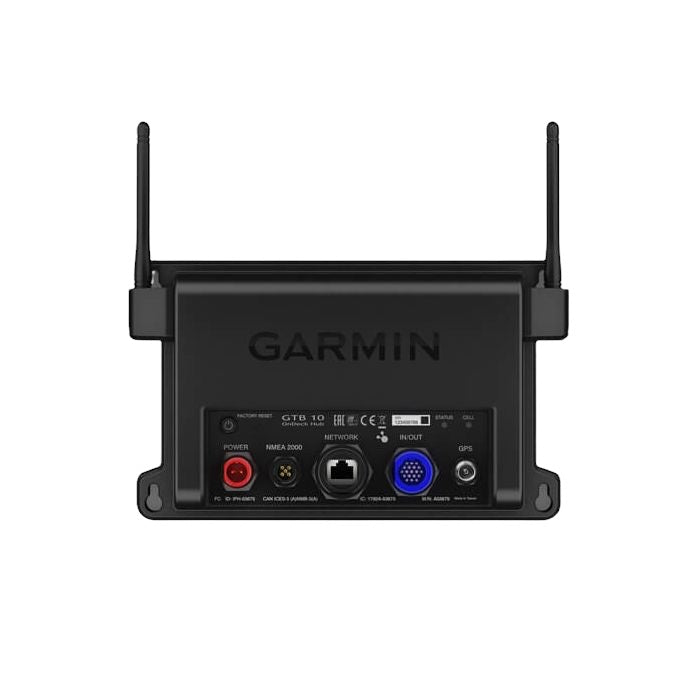

Meet the Garmin OnDeck Hub — a fully integrated remote connectivity solution that lets you track, monitor, and control up to 5 switches on your boat from anywhere. Stay in touch with your vessel, receive real-time alerts, and manage critical systems with the press of a button through the ActiveCaptain app.
-
Control up to 5 relay switches — power and operate essentials like battery chargers, ice makers, lighting, and more from afar.
-
Always-on connectivity — secure remote access via 3G/4G networks and seamless integration with Garmin Marine Network and NMEA 2000 sensors.
-
ActiveCaptain app — manage alarms, monitor vessel data, and take control from your compatible smartphone.
-
Security and geofence alerts — be alerted by text if a sensor is triggered or your boat moves outside a defined area.
-
GPS tracking and data history — GPS updates every 15 or 30 minutes (power-dependent), with cloud storage for up to 30 days of data.
-
Battery backup — a 48-hour internal backup battery keeps OnDeck accessible even if the boat battery is depleted or power is disconnected.
-
Comprehensive sensor suite — monitor bilge activity, battery voltage, shore power, temperature, depth, position, wind data, fuel flow, engine hours, and more via NMEA 2000 sensors.
-
Simplified setup and compatibility — designed to integrate with your existing marine electronics (MFD via Garmin Marine Network and NMEA 2000 sensors).
What makes OnDeck Hub essential on every vessel
With the OnDeck Hub, peace of mind is a plan you can count on. Get timely updates about battery status, bilge activity, shore power, and temperature changes, and receive alerts the moment something requires attention. Turn on or off critical systems remotely to prepare your boat for docking, starting, or storage, all while staying connected to your vessel through ActiveCaptain.
Specifications
-
General Dimensions without antennas: 9.1" x 1.9" x 5.6" (23.1 x 4.9 x 14.2 cm). Dimensions with antennas pointing up: 9.1" x 5.2" x 5.6" (23.1 x 13.2 x 14.2 cm). Dimensions with antennas parallel to mounting: 9.1" x 1.9" x 8.5" (23.1 x 4.9 x 21.5 cm).
-
Weight 1.4 lbs (0.64 kg)
-
Power 20 W max at 10 Vdc; Input voltage range 10–32 Vdc
-
Battery life Up to 48 hours
-
Monitoring frequency 15 minutes
-
Connectivity NMEA 2000 compatible, ActiveCaptain compatible, Cellular 3G/4G, Wi‑Fi, Garmin Marine Network
-
Sensors Bilge pump (2), Security, Battery voltage (2), Temperature, Shore power, GPS location, Distance log, and NMEA 2000 sensors (fluid level, temperature, water depth, position, course over ground, speed over ground, vessel speed, wind data, fuel flow rate, engine hours, engine warnings)
-
Switches Relay switch (5)
-
Alarms Temperature, Geofence, Offline, Voltage, Shore power, Security sensor, Depth
Secure, scalable, and simple to use, the Garmin OnDeck Hub is a robust addition to your marine electronics arsenal. It’s the smart way to stay connected, informed, and in control — no matter where the water takes you.
| General |
| Physical dimensions without antennas |
9.1" x 1.9" x 5.6" (23.1 x 4.9 x 14.2 cm) |
| Physical dimensions with antennas pointing up |
9.1" x 5.2" x 5.6" (23.1 x 13.2 x 14.2 cm) |
| Physical dimensions with antennas parellel to mounting |
9.1" x 1.9" x 8.5" (23.1 x 4.9 x 21.5 cm) |
| Weight |
1.4 lbs (0.64 kg) |
| Power consumption |
20 W max at 10 Vdc |
| Input voltage range |
From 10 to 32 Vdc |
| Battery life |
Up to 48 hours |
| Monitoring frequency |
15 minutes |
| Connectivity |
| NMEA 2000® compatible |
yes |
| ActiveCaptain compatible |
yes |
| Cellular connectivity |
yes (3G/4G) |
| Wi-Fi® |
yes |
| Garmin Marine Network |
yes |
| Sensors |
| Bilge pump |
yes (2) |
| Security |
yes |
| Battery voltage |
yes (2) |
| Temperature |
yes |
| Shore power |
yes |
| GPS location |
yes |
| Distance log |
yes |
| NMEA 2000 Sensors |
| Fluid level |
yes |
| Temperature |
yes |
| Water depth |
yes |
| Position |
yes |
| Course over ground |
yes |
| Speed over ground |
yes |
| Vessel speed |
yes |
| Wind data |
yes |
| Fuel flow rate |
yes |
| Engine hours |
yes |
| Engine warning indicators |
yes |
| Switch Controls |
| Relay switch |
yes(5) |
| Alarms |
| Temperature |
yes |
| Geofence |
yes |
| Offline |
yes |
| Voltage |
yes |
| Shore power |
yes |
| Security sensor |
yes |
| Depth |
yes |
