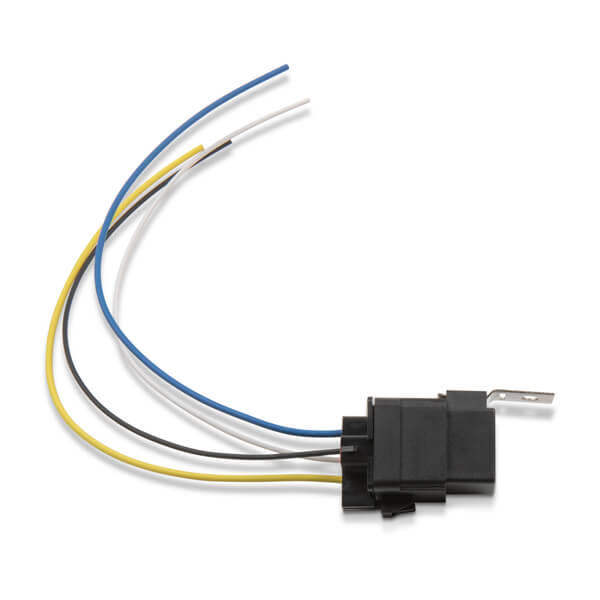

Take command of your vessel with the Garmin OnDeck Relay Switch (12 Vdc), model 010-13009-01. When paired with the OnDeck Hub, you can control essential boat systems remotely, giving you confidence and convenience whether you’re at the dock, in the marina, or miles away.
Key advantages:
-
Remote control of your boat systems — operate relays from the OnDeck Hub for hands-free management at the helm or ashore.
-
Expandable with up to five switches — tailor your OnDeck Hub setup by adding up to five individual switches for complete reach and automation.
-
12 Vdc system compatibility — designed to work with standard boat power; input power for the OnDeck Hub should be 10 Vdc to 15.6 Vdc.
-
Rugged for marine use — wide operating temperature range (-15° to 85°C) and storage range (-40° to 155°C) to handle the marine environment.
-
Reliable electrical performance — coil control voltage 7.8 to 15.6 Vdc; load current from 0.1 A minimum up to 15 A at 10-16 Vdc (and up to 9 A at 20-32 Vdc).
Applications include navigation lights, pumps, bilge systems, fans, and other 12 VDC devices you want to switch remotely for safety, efficiency, and convenience.
Specifications
- Operating temperature: -15° to 85°C (5° to 185°F)
- Storage temperature: -40° to 155°C (-40° to 311°F)
- Control voltage (coil): 7.8 to 15.6 Vdc
- Load power min. (contacts): 0.1 A
- Load power max. (contacts): Up to 15 A at 10 to 16 Vdc; Up to 9 A at 20 to 32 Vdc
- Input power for OnDeck Hub: 10 Vdc to 15.6 Vdc
| Operating temperature range |
From -15° to 85°C (from 5° to 185°F) |
| Storage temperature range |
From -40° to 155°C (from -40° to 311°F) |
| Control voltage (coil) |
7.8 to 15.6 Vdc |
| Load power min. (contacts) |
0.1 A |
| Load power max. (contacts) |
Up to 15 A at 10 to 16 Vdc Up to 9 A at 20 to 32 Vdc |
