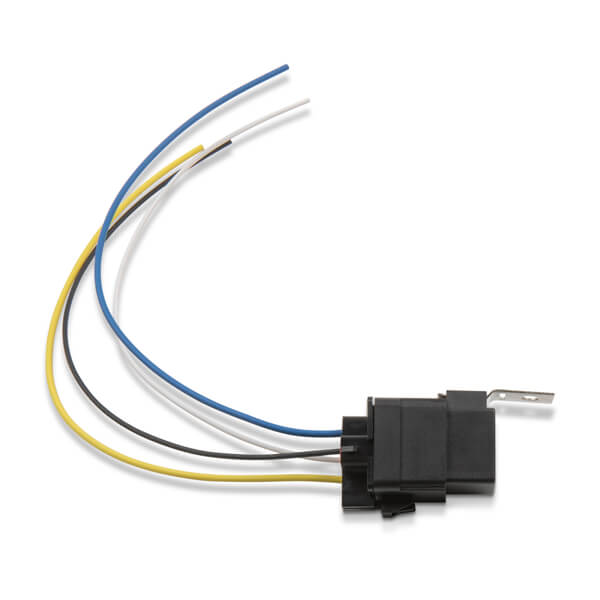

Garmin OnDeck Relay Switch 24v—Model 010-13009-07—lets you control your vessel remotely via the OnDeck Hub. Seamlessly expand your cockpit control by adding up to five relay switches to your OnDeck Hub, keeping critical boat systems at your fingertips.
Designed for 24 VDC marine power environments, this relay switch pairs with Garmin's OnDeck Hub to give you reliable remote control when you're away from the helm. Verify your hub input power falls between 15.6 Vdc and 31.2 Vdc to ensure compatibility with your system.
Key features
-
Remote vessel control: Operate your gear from anywhere on the boat using the OnDeck Hub and relay switch.
-
Expandable control: Add up to five switches to the OnDeck Hub for multi-point control.
-
Coil control voltage: 15.6 to 31.2 Vdc, suitable for 24 V systems.
-
Load capacity: Minimum load 0.1 A; maximum load up to 9 A at 10–16 Vdc or up to 8 A at 20–32 Vdc.
-
Electrical compatibility: Ensures operation with OnDeck Hub as part of Garmin's integrated marine control ecosystem.
Operating conditions
-
Operating temperature: From -15° to 85°C (from 5° to 185°F).
-
Storage temperature: From -40° to 155°C (from -40° to 311°F).
Equip your vessel with the Garmin OnDeck Relay Switch 24v to gain confident, remote control of power I/O for navigation lights, accessories, and other deck systems — all managed through a single, scalable OnDeck Hub.
| Operating temperature range |
From -15° to 85°C (from 5° to 185°F) |
| Storage temperature range |
From -40° to 155°C (from -40° to 311°F) |
| Control voltage (coil) |
15.6 to 31.2 Vdc |
| Load power min. (contacts) |
0.1 A |
| Load power max. (contacts) |
Up to 9 A at 10 to 16 Vdc Up to 8 A at 20 to 32 Vdc |
