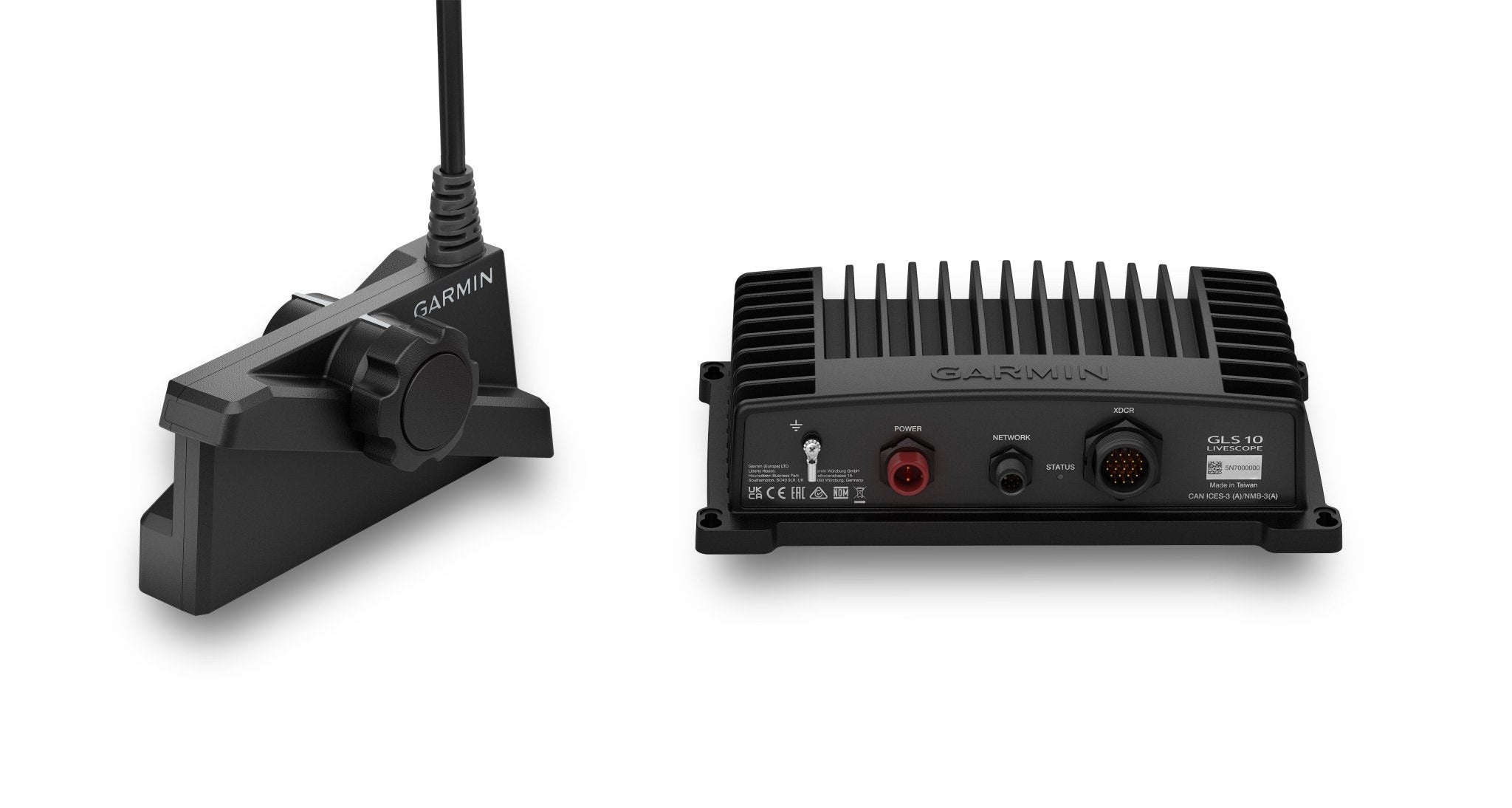

Experience real-time underwater imaging with Garmin Panoptix LiveScope Plus, pairing the LVS34 transducer with a GLS 10 sonar black box for instant, high-contrast views. Designed for anglers and boaters who want clear, lifelike awareness of fish, structure, and terrain from multiple perspectives.
-
Real-time LiveScope Plus imaging: High-resolution, low-noise sonar that delivers lifelike underwater views with smoother performance.
-
Upgradable GLS 10 compatibility: Swap in the LVS34 transducer while reusing the GLS 10 black box for an enhanced upgrade path.
-
Viewing modes: Forward, Down, and Perspective modes provide comprehensive situational awareness from multiple angles.
-
Built-in stabilization: Keeps sonar images steady in rough water for more reliable readings.
-
Color palettes: Seven vivid options (including Aqua, Caribbean, Lava) to maximize contrast in varying water conditions.
-
Comprehensive underwater awareness: See ahead, directly below, and overhead for complete visibility of terrain and targets.
-
Real-time sonar accuracy: Immediate readouts help you identify fish and structure with confidence.
-
Frequency and depth performance: 530–1,100 kHz operating range; Down and Forward maximum depth of 200 ft (61 m).
-
Power and electrical: 10–32 V input; typical 21 W, max 58 W; transmit power 500 W.
-
Dimensions and weight: GLS 10 box 9.7" x 5.9" x 2.6"; LVS34 transducer 6.4" x 3.1" x 1.9"; GLS 10 4.3 lbs, LVS34 2.25 lbs.
-
Waterproofing and durability: GLS 10 IPX7 waterproof rating; suitable for demanding conditions and field use.
-
Connectivity: Garmin Marine Network port (small connector) for seamless integration with compatible systems.
-
What’s in the box: LiveScope GLS 10 sonar black box; Panoptix LVS34 transducer; Perspective mount; Trolling motor barrel mount; Shaft mount; Power cable; 2 m Garmin Marine Network cable; Network adapter cable; Documentation.
-
Transducer specifics: 20° beamwidth along the main axis with a 135° wide-angle side, 20 ft transducer cable, 21-pin connection.
Designed for longevity and steady performance, this kit makes real-time sonar accessible with a straightforward upgrade path. Upgrade your setup and enjoy real-time, high-contrast scanning that helps you scout ahead, inspect below, and understand underwater terrain from multiple angles.
| DIMENSION |
GLS 10 sonar black box: 9.7" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm);
LVS34 transducer: 6.4" x 3.1" x 1.9" (16.2 x 7.8 x 4.8 cm) |
| WEIGHT |
GLS 10 sonar black box: 4.3 lbs (2.0 kg);
LVS34 transducer: 2.25 lbs (1.02 kg) |
| WATERPROOF |
IPX7 |
| TEMPERATURE RANGE |
GLS 10 Black Box: Operating: -15 C to 70 C
Panoptix LiveScope LVS34 Transducer: Operating: 0 C to 40 C |
| Sonar Features & Specifications |
| FREQUENCY |
530 - 1,100 kHz |
| MAXDEPTH |
Down and Forward: 200’ (61.0 m) |
| Connections |
| CONNECTIONS GARMIN MARINE NETWORK PORTS |
1 (small connector) |
| Electrical Features |
| POWER INPUT |
10-32 V |
| POWER USAGE |
21 W typical, 58 W max |
| TRANSMIT POWER |
500 W |
| FUSE |
7.5 A |
| COMPASS-SAFE DISTANCE |
4" (0.1 m) |
| Additional |
| Minimum depth |
3' (0.91 m) |
| Sonar type |
Live |
| Beamwidth |
20° x 135° |
| Transducer cable length |
20 ft |
| Transducer number of pins |
21 |
