Garmin Panoptix LiveScope System With Thru-hull delivers live, real-time scanning sonar that makes structure, bait and fish under and around your boat easy to see—whether you're moving or stopped. See incredibly clear images up to 200' around your boat with instant interpretation, and even track your lure on the screen as you retrieve it.
-
Real-time LiveScope scanning shows easy-to-interpret images of structure, bait and fish all around and beneath your boat in real time—even when your boat is stationary. Span up to 200 feet in every direction.
-
LiveScope Forward provides live, forward-looking scanning to scout and fish out ahead of your cast, up to 200'.
-
Stabilized view Attitude Heading Reference System keeps the sonar view steady on your chartplotter screen in rough water.
-
Plug-and-play integration with a simple Garmin Marine Network connector for easy installation and seamless compatibility with your Garmin chartplotter.
-

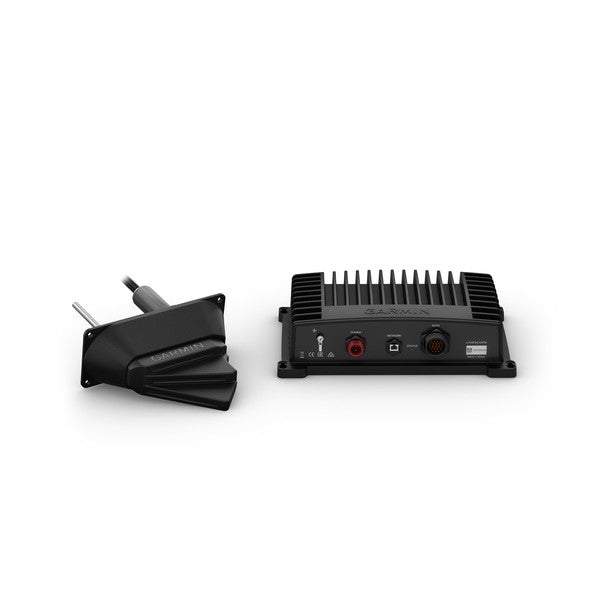

Transducer and box Includes GLS 10 sonar black box and LVS32 thru-hull transducer with optional fairing block for optimal performance; reliable thru-hull mounting.
-
Supplemental traditional and ClearVü sonar to see a historical representation of structure and fish below your boat, in addition to LiveScope real-time images.
-
Compatibility Works with a wide range of Garmin chartplotters, including GPSMAP 8400/8600 series MFDs, GPSMAP 7400/7600, 1002/1202, GPSMAP 1202/1202xsv Touch and 702/902 series, and ECHOMAP Plus 70cv/70sv and 90sv.
-
Technical specs Frequencies: 530–1,100 kHz; Transmit power: 500 W; Forward depth: 200' (61 m); Beamwidth: 20° x 135°; Transducer cable: 20 ft; 21-pin transducer connectors.
-
Durability IPX7 water rating for rugged marine use.
-
What’s in the box GLS 10 sonar black box, Panoptix LVS32 transducer, thru-hull mount hardware, power cable, 2 meter Garmin Marine Network cable (small connector), network adapter cable, mounting hardware, and documentation.
Upgrade your fishing experience with Garmin Panoptix LiveScope System With Thru-hull and see underwater life with unprecedented clarity and reliability.
| Physical dimensions |
| GLS 10 sonar black box |
9.6" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm) |
| LVS32-TH transducer without fairing block |
9.6" x 1.8" x 5.4" (24.4 x 4.6 x 13.7 cm) |
| LVS32-TH transducer with fairing block |
9.6" x 3.4" x 8.1" (24.4 x 8.6 x 20.6 cm)LVS32-TH transducer with fairing block: 9.6" x 3.4" x 8.1" (24.4 x 8.6 x 20.6 cm) |
| General |
| Water rating |
IPX7 |
| Garmin Marine Network™ ports |
1 (small connector) |
| Temperature range |
-15 C to 70 C |
| Sonar Features & Specifications |
| Frequencies supported |
530 - 1,100 kHz |
| Transmit power |
500 W |
| Maximum depth |
Forward: 200’ (61.0 m) |
| Electrical |
| Power input |
10-32 V |
| Power usage |
21 W typical, 58 W max |
| Fuse |
7.5 A |
| Other |
| Beamwidth |
20° x 135° |
| Transducer cable length |
20 ft. |
| Transducer number of pins |
21 |
