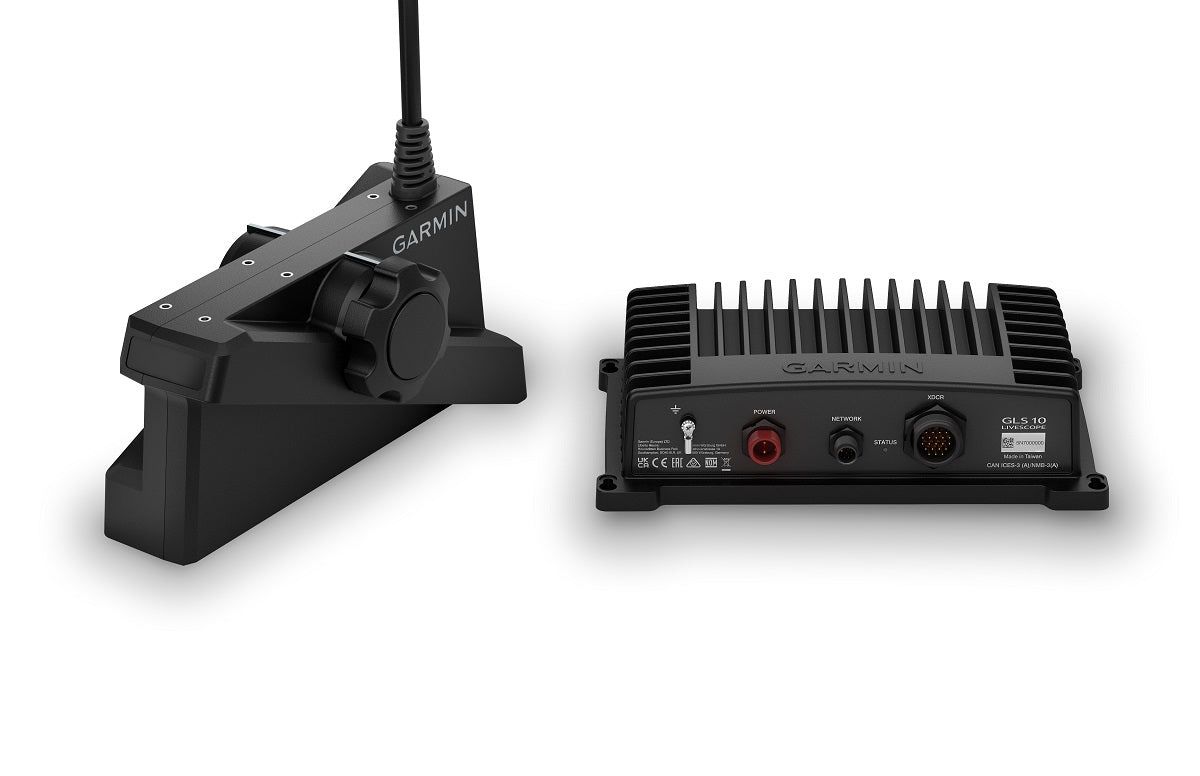

Meet the Garmin Panoptix LiveScope XR System, powered by the GLS 10 black box and the LVS62 transducer. This advanced live-scan sonar setup brings real-time imagery to coastal and open-water fishing, letting you see fish and structure around and ahead of your boat with stunning clarity and depth.
Key advantages at a glance:
-
Extended real-time range — up to 500’ in freshwater and 350’ in saltwater, so you can scout farther and react faster.
-
Multiple viewing modes — Forward, Down, and Perspective views to cover every angle around your hull and beyond.
-
LiveScope XR enhancements — the latest LiveScope technology designed for coastal and open-water fishing, with features that maximize your awareness of fish and structure.
-
Reverse Range Offset and Compress Range options — expand the screen to display distant targets while maintaining a clear view close to the boat.
-
Real-time sonar — live images update instantly, so you don’t miss a bite or a schooling movement.
-
Built-in stabilization — the system stays steady on your chartplotter even in rough conditions, for consistently accurate readings.
-
Vivid color palettes — seven color options including aqua, Caribbean, lava, and more for maximum contrast and clarity.
Precision and performance
- Frequency: 265 – 550 kHz
- Beamwidth: 20° x 135°
- Freshwater depth capability (Down & Forward): 500’
- Saltwater depth capability (Down & Forward): 350’
- Transmit power: 500 W
- Power input: 10–32 V; typical 21 W, max 58 W
- Temperature range: GLS 10 Black Box operates from -15°C to 70°C
- Compass-safe distance: 7”
Rugged, easy to install, and ships ready to run
-
Perspective mount included (LiveScope XR LVS62 transducer version)
- Garmin Marine Network connection
- Included power cable and network cables for quick setup
- IPX7-rated GLS 10 sonar black box for durability in challenging conditions
What’s in the box
- LiveScope GLS 10 sonar black box
- LiveScope XR LVS62 transducer
- Perspective mount (LiveScope XR LVS62 transducer only)
- Trolling motor barrel mount
- Shaft mount
- Power cable
- 2-meter Garmin Marine Network cable (small connector)
- Network adapter cable
- Documentation
| General |
| DIMENSION |
GLS 10 sonar black box: 9.7" x 5.9" x 2.6" (24.5 x 14.9 x 6.5 cm);
LVS62 transducer: 8.20" x 3.98" x 2.76" (20.8 x 10.1 x 7.0 cm) |
| WEIGHT |
GLS 10 sonar black box: 4.3 lbs (2.0 kg) |
| WATERPROOF |
IPX7 |
| TRANSDUCER BEAMWIDTH |
20° x 135° |
| TRANSDUCER CABLE LENGTH |
20 ft |
| TRANSDUCER NUMBER OF PINS |
21 |
| TEMPERATURE RANGE |
GLS 10 Black Box: Operating: -15 C to 70 C |
| Sonar Features & Specifications |
| FREQUENCY |
265 - 550 kHz |
| MAXIMUM DEPTH |
Freshwater: Down and Forward: 500’ (152.0 m)
Saltwater: Down and Forward: 350’ (106.0 m) |
| SONAR TYPE |
Live |
| TARGET SEPARATION @100' |
22" |
| PERSPECTIVE MODE MOUNT INCLUDED |
Yes |
| Connections |
| GARMIN MARINE NETWORK PORTS |
1 (small connector) |
| Electrical Features |
| POWER INPUT |
10-32 V |
| POWER USAGE |
21 W typical, 58 W max |
| TRANSMIT POWER |
500 W |
| FUSE |
7.5 A |
| COMPASS-SAFE DISTANCE |
7" (0.18 m) |
