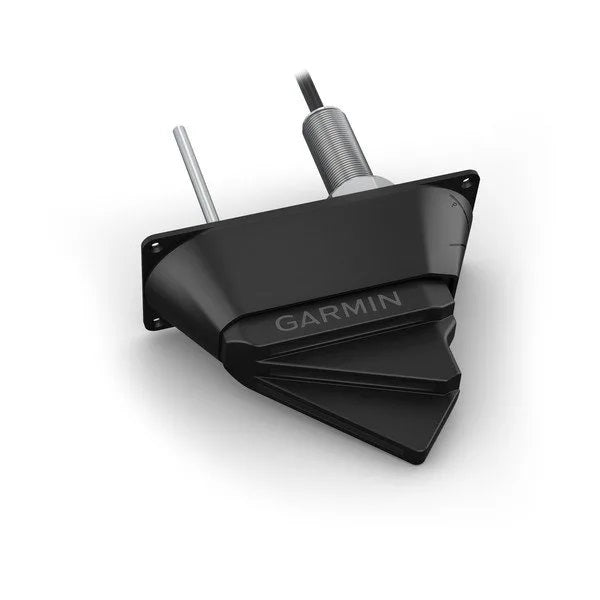

Meet the Garmin Panoptix LVS32-TH Transducer — a thru-hull, forward-looking LiveScope transducer designed to deliver real-time, easy-to-interpret sonar imagery of structure, bait, and fish swimming around your boat. This unit is part of the Panoptix LiveScope system and requires the GLS 10 sonar box to function. With LiveScope Forward, you’ll see live scanning images up to 200 feet around your boat in real time, even when the boat is stationary. AHRS stabilization keeps your sonar view steady, so you can track targets with confidence in choppy or rough conditions.
-
Model: 010-12928-01
-
Mounting: Thru-hull transducer
-
LiveScope Forward: Real-time forward-scanning imagery of structure, bait, and fish around the boat
-
System Requirement: Part of Panoptix LiveScope; requires GLS 10 sonar box to operate
-
Transducer Frequency: 530 – 1,100 kHz
-
Transducer Power: 500 W
-
Beamwidth: 20° x 135°
-
Maximum Forward Depth: 200 ft (61 m)
-
Cable Length: 20 ft
-
Connector: 21-pin
What’s in the Box
- Panoptix LVS32-TH transducer
- Thru-hull mounting hardware
- Mounting hardware
- Documentation
| TRANSDUCER FREQUENCY |
530 - 1,100 kHz |
| TRANSDUCER POWER |
500w |
| TRANSDUCER BEAMWIDTH |
20° x 135° |
| TRANSDUCER MAXIMUM DEPTH |
Forward: 200’ (61.0 m) |
| TRANSDUCER CABLE LENGTH |
20 ft. |
| TRANSDUCER DEPTH/SPEED/TEMPERATURE |
Depth |
| TRANSDUCER NUMBER OF PINS |
21 |
