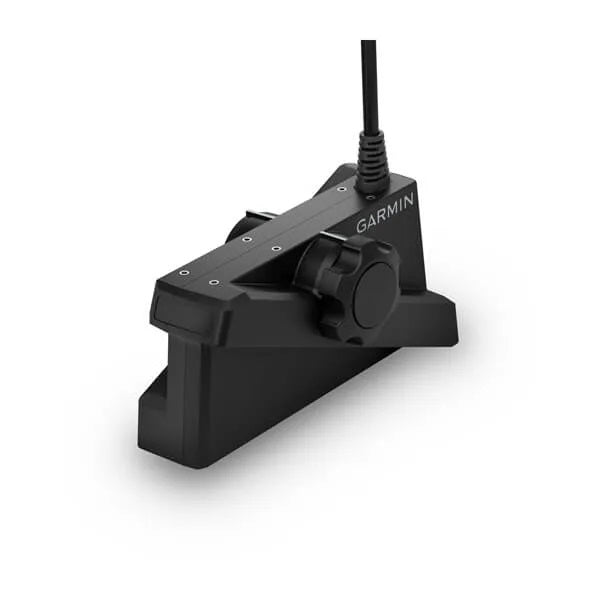

Upgrade your LiveScope experience with the Garmin Panoptix LVS62 Transducer Only for Livescope XR (Model: 010-02719-10). Designed to extend your range and sharpen your real-time imagery, this transducer slips into your existing GLS 10 sonar setup to deliver the next level of coastal and open-water fishing performance.
-
Extended range: Up to 500’ in freshwater and 350’ in saltwater, with clear views close around your hull.
-
Simple upgrade: Replace only the transducer to boost your LiveScope XR system without swapping the black box (GLS 10).
-
Vivid, sharp imagery: Choose from seven color palettes for maximum contrast and clarity in every condition.
-
Flexible viewing modes: Support for Forward, Down, and Perspective views, plus real-time sonar for accurate, up-to-the-second target data.
-
Advanced range features: Reverse Range Offset uses more screen real estate to display fish and structure up to 500’ (freshwater) and 350’ (saltwater); Compress Range keeps a clear view near the boat while tracking distant targets.
-
Stabilized performance: Built-in stabilization keeps sonar images steady on your chartplotter even in rough conditions.
-
Deeply capable, sea-ready: Ideal for coastal and open-water fishing with LiveScope XR’s latest technology, now extended for broader visibility.
-
High-quality build: IPX7 waterproof rating, operating 0–40°C, 20' transducer cable, and 21-pin connection for reliable performance.
Specifications
-
Transducer dimensions: 8.20" x 3.98" x 2.76" (20.8 x 10.1 x 7.0 cm)
-
Weight: 3.92 lbs (1.78 kg) with cable
-
Waterproof: IPX7
-
Beamwidth: 20° x 135°
-
Cable length: 20 ft
-
Pins: 21
-
Operating temperature: 0°C to 40°C
-
Frequency: 265–550 kHz
-
Maximum depth: Freshwater Down/Forward 500’; Saltwater Down/Forward 350’
-
Power: 10–32 V; 21 W typical, 58 W max; Transmit power 500 W
What's in the Box
- LiveScope XR LVS62 transducer
- Perspective mount
- Trolling motor barrel mount
- Shaft mount
- Power cable
- Documentation
| General |
| DIMENSION |
LVS62 transducer: 8.20" x 3.98" x 2.76" (20.8 x 10.1 x 7.0 cm) |
| WEIGHT |
LVS62 transducer with cable: 3.92 lbs (1.78 kg) |
| WATERPROOF |
IPX7 |
| TRANSDUCER BEAMWIDTH |
20° x 135° |
| TRANSDUCER CABLE LENGTH |
20 ft |
| TRANSDUCER NUMBER OF PINS |
21 |
| TEMPERATURE RANGE |
LVS62 Transducer: Operating: 0 C to 40 C |
| Sonar Features & Specifications |
| FREQUENCY |
265 - 550 kHz |
| MAXIMUM DEPTH |
Freshwater: Down and Forward: 500’ (152.0 m)
Saltwater: Down and Forward: 350’ (106.0 m) |
| SONAR TYPE |
Live |
| TARGET SEPARATION @100' |
22" |
| PERSPECTIVE MODE MOUNT INCLUDED |
Yes |
| Connections |
| GARMIN MARINE NETWORK PORTS |
1 (small connector) |
| Electrical Features |
| POWER INPUT |
10-32 V |
| POWER USAGE |
21 W typical, 58 W max |
| TRANSMIT POWER |
500 W |
| FUSE |
7.5 A |
| COMPASS-SAFE DISTANCE |
7" (0.18 m) |
