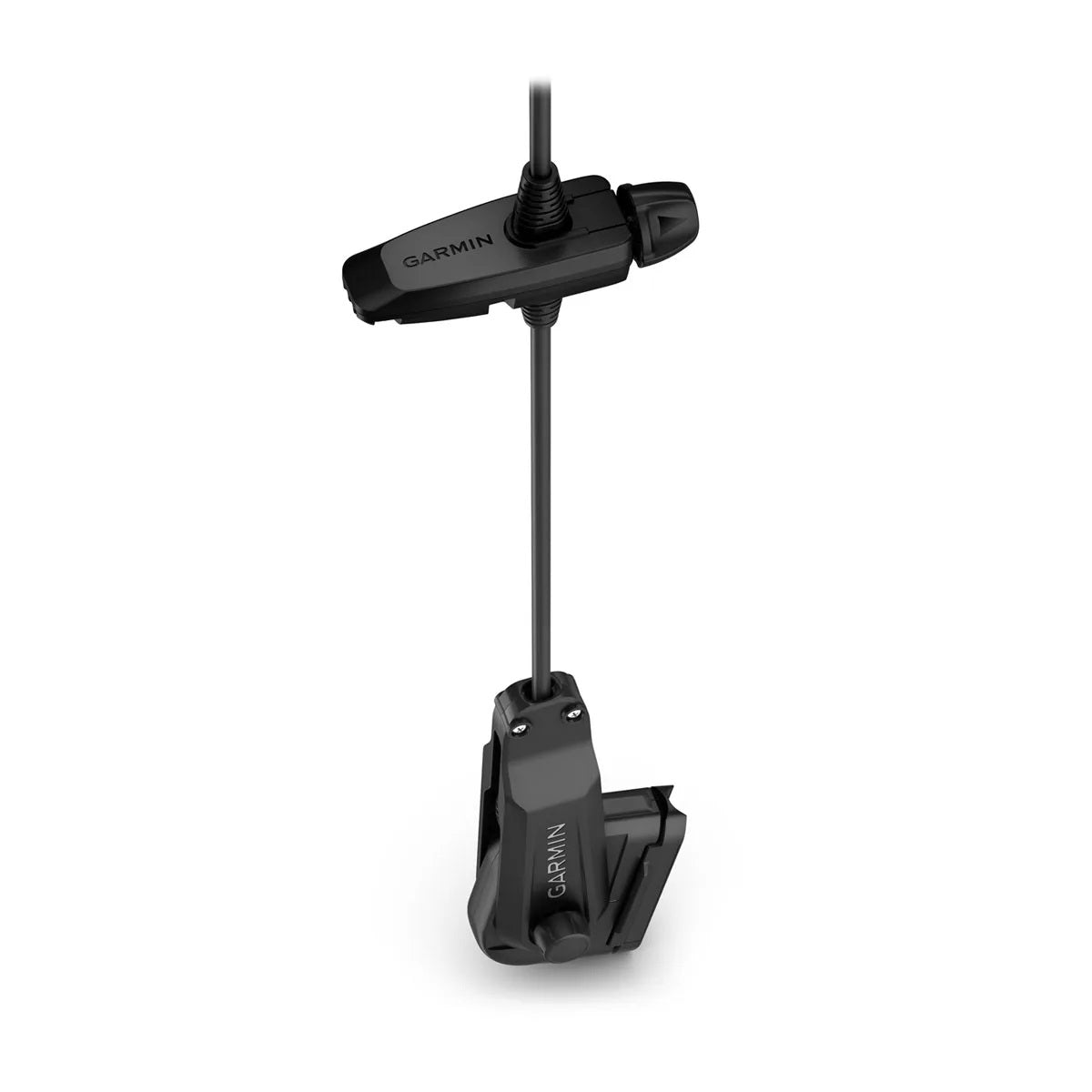

Garmin Panoptix PS22-IF Portable Live Sonar delivers real-time underwater visibility in a compact, ultraportable package. Designed for anglers and boaters who want quick setup and flexible beam control, its redesigned bracket and removable lens optimize the sonar beam angle for the water below.
-
Transducer beamwidth: With lens: 12° x 120°; Without lens: 57° x 120°.
-
Transducer cable length: 9.8' (3 m).
-
Dimensions: 9.1" x 4.1" x 2.5" (23.1 x 10.4 x 6.4 cm).
-
Weight: 2.60 lbs (1.18 kg).
-
Temperature range: Operating: 0° C to 40° C.
-
Electrical features: Power input 10-32 V; Fuse 4A.
-
Frequency: 417 kHz.
-
Transmit power: 48 W.
-
Maximum depth: 300'.
-
Garmin Marine Network Ports: 1 (standard connector).
-
Sonar modes: LiveVü Down; LiveVü Forward; Traditional sonar source.
-
What's in the box: Panoptix PS22-IF transducer; Transducer rotator and bracket; Removable lens; Hardware; Documentation.
Real-time imaging helps you pinpoint schools and individual fish, track movement, and adapt your strategy on the water. With LiveVü Forward you can see ahead of the boat, while LiveVü Down reveals targets below, complemented by traditional sonar for reliable depth readings. The portable design, combined with a rotator/bracket and removable lens, makes setup fast and versatile across boats and spots, while the 0–40°C operating range and Garmin Marine Network compatibility support dependable performance in varied conditions.
| General |
| Transducer beamwidth |
With lens: 12° x 120°
Without lens: 57° x 120° |
| Transducer cable length |
9.8' (3 m) |
| Dimension |
9.1" x 4.1" x 2.5" (23.1 x 10.4 x 6.4 cm) |
| Weight |
2.60 lbs (1.18 kg) |
| Temperature range |
Operating: 0° C to 40° C |
| Electrical Features |
| Power input |
10-32 V |
| Fuse |
4A |
| Sonar Features |
| Frequency |
417 kHz |
| Transmit power |
48 W |
| Maximum depth |
300' |
| Connections |
| Garmin Marine Network Ports |
1 (standard connector) |
| Sonar Modes |
| LiveVü Down |
Yes |
| LiveVü Forward |
Yes |
| Traditional sonar source |
Yes |
